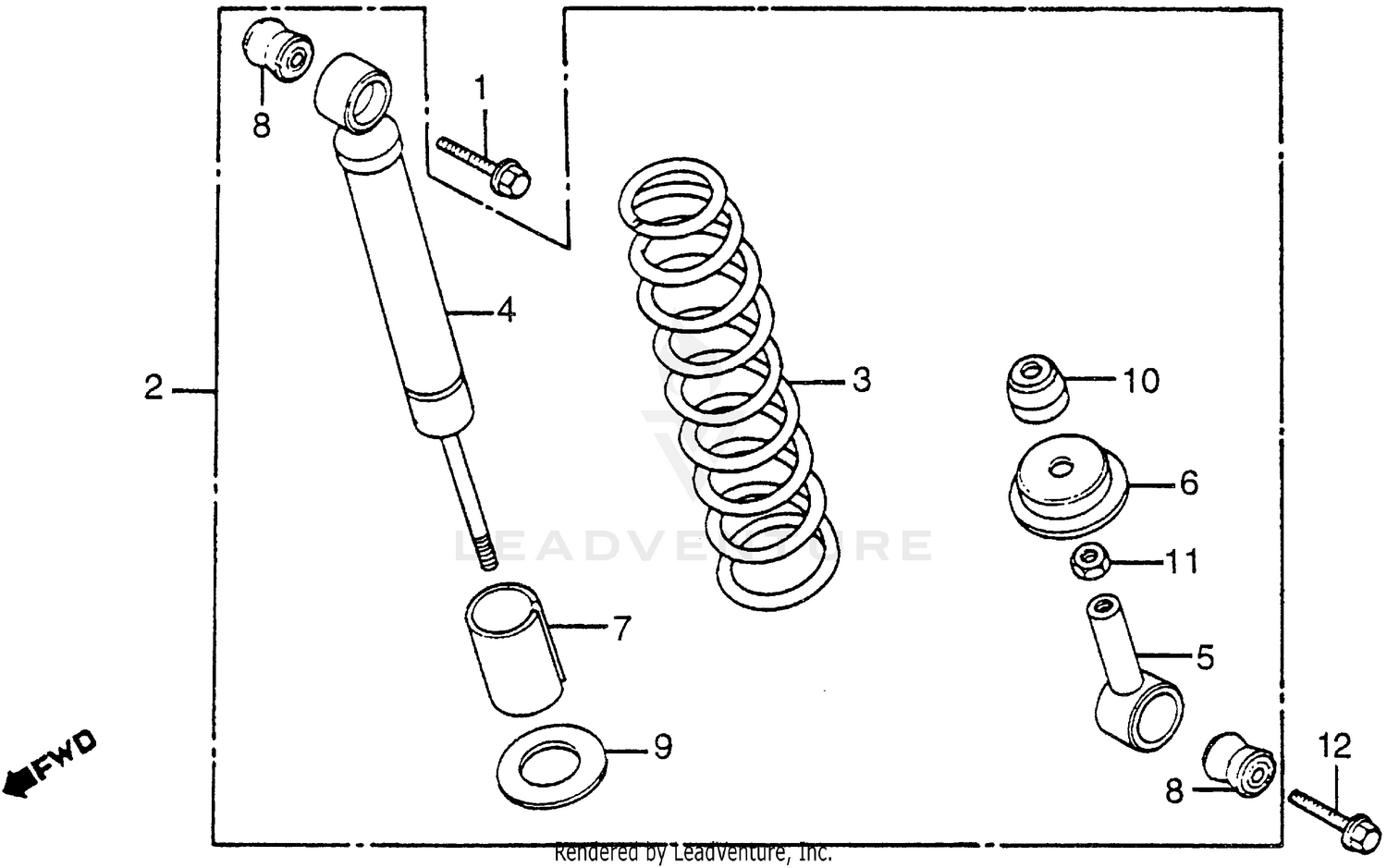

Rear Shock Absorber Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
BOLT, HEX. (10X35)
N949040-4731
|
$1.42 | ||
|
Available to order. Add to View Price |
|||
|
#1
BOLT, HEX. (10X35)
38937-671-000
Superseded by N949040-4731
|
$1.42 | ||
|
Unavailable |
|||
|
#2
SHOCK ABSORBER ASSY., RR.
52400-GM8-670
|
$88.37 | ||
|
Available to order. Add to View Price |
|||
|
#3
SPRING, RR. SHOCK ABSORBER
52401-GJ5-003
|
$27.29 | ||
|
Available to order. Add to View Price |
|||
|
#4
DAMPER, RR.
52410-GM8-670
|
$47.72 | ||
|
Available to order. Add to View Price |
|||
|
#5
METAL, RR. SHOCK ABSORBER (LOWER)
52411-GM8-670
|
$10.67 | ||
|
Available to order. Add to View Price |
|||
|
#6
SEAT, SPRING (LOWER)
52458-GJ5-003
|
$8.93 | ||
|
Available to order. Add to View Price |
|||
|
#7
COLLAR (OUTER)
52487-GJ5-003
|
$3.60 | ||
|
Available to order. Add to View Price |
|||
|
#8
BUSH, SHOCK ABSORBER
52489-473-003
|
$8.78 | ||
|
Available to order. Add to View Price |
|||
|
#9
SEAT, SPRING (UPPER)
52515-GJ5-003
|
$5.62 | ||
|
Available to order. Add to View Price |
|||
|
#10
RUBBER, STOPPER
52517-GJ5-003
|
$5.07 | ||
|
Available to order. Add to View Price |
|||
|
#11
NUT, HEX. (10MM)
94002-10000-0S
|
$4.95 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT, FLANGE (10X32)
95800-10032-00
Superseded by 95801-10032-00
|
$2.40 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT, FLANGE (10X32)
95801-10032-00
|
$2.40 | ||
|
Unavailable |
|||
