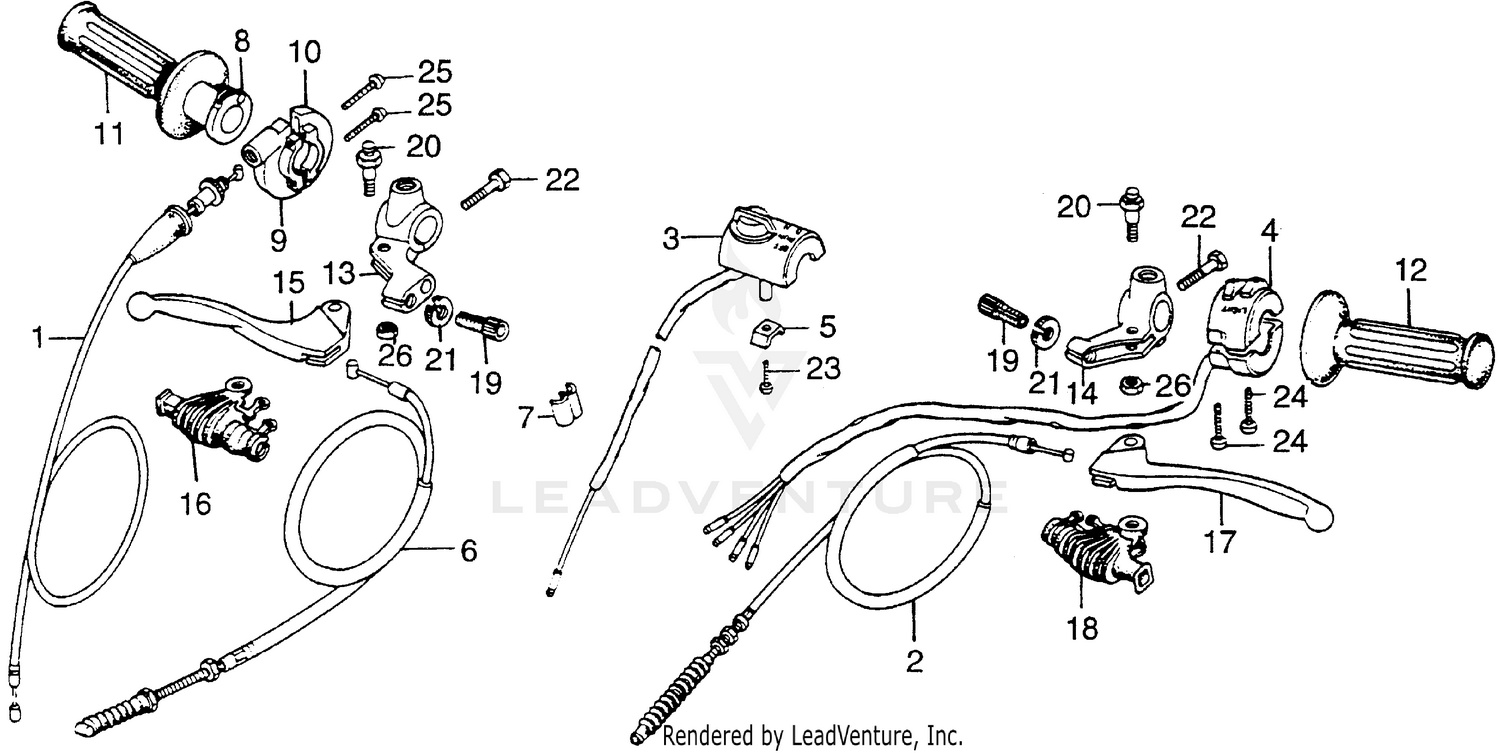

Handle Lever + Switch + Cable Diagram

Item MSRP Qty
#1 CABLE, THROTTLE
17910-355-000
 $19.26
Unavailable
#2 CABLE, CLUTCH
22870-KB1-405
 $26.26
Available to order.
Add to View Price
#2 CABLE, CLUTCH
22870-355-010
Superseded by 22870-KB1-405
 $26.26
Unavailable
#3 SWITCH, STOP (NOT AVAILABLE)
35300-129-670
 $34.86
Unavailable
#4 SWITCH ASSY., LIGHTING (NOT AVAILABLE)
35300-373-671
 $67.47
Available to order.
Add to View Price
#5 WASHER, STOP SWITCH (NOT AVAILABLE)
35301-355-670
 $3.49
Available to order.
Add to View Price
#6 CABLE, FR. BRAKE (NOT AVAILABLE)
45450-355-000
 $36.79
Available to order.
Add to View Price
#7 CLIP, FR. BRAKE CABLE
45465-270-000
 $5.84
Available to order.
Add to View Price
#7 CLIP, FR. BRAKE CABLE
45465-341-700
Superseded by 45465-270-000
 $5.84
Unavailable
#8 PIPE, THROTTLE GRIP
53141-355-000
Superseded by 53141-355-010
 $19.31
Unavailable
#8 PIPE, THROTTLE GRIP
53141-355-010
 $19.31
Unavailable
#9 CASE (UPPER)
53143-355-000
 $37.17
Unavailable
#10 CASE (LOWER)
53144-355-000
 $30.20
Unavailable
#11 GRIP, R. HANDLEBAR
53165-116-670
 $13.91
Available to order.
Add to View Price
#12 GRIP, L. HANDLEBAR
53166-116-670
 $13.93
Available to order.
Add to View Price
#13 BRACKET, R. HANDLEBAR (NOT AVAILABLE)
53171-110-000
 $66.62
Available to order.
Add to View Price
#14 BRACKET, L. HANDLEBAR (NOT AVAILABLE)
53172-110-000
 $66.65
Available to order.
Add to View Price
#15 LEVER, R. HANDLEBAR
53175-360-700
Superseded by 53175-KY0-980
 $35.44
Available to order.
Add to View Price
#15 LEVER, R. HANDLEBAR
53175-402-700
Superseded by 53175-KY0-980
 $35.44
Unavailable
#16 COVER, R. CONTROL LEVER
53176-329-000
 $14.16
Available to order.
Add to View Price
#17 LEVER, L. HANDLEBAR
53178-360-700
Superseded by 53178-401-651
 $23.51
Unavailable
#17 LEVER, L. HANDLEBAR
53178-401-651
 $23.51
Unavailable
#17 LEVER, L. HANDLEBAR
53178-467-000
Superseded by 53178-401-651
 $23.51
Unavailable
#17 LEVER, L. HANDLEBAR
53190-401-681
Superseded by 53178-401-651
 $23.51
Unavailable
#17 LEVER, L. HANDLEBAR
53190-410-000
Superseded by 53178-401-651
 $23.51
Unavailable
#18 COVER, L. CONTROL LEVER
53179-329-000
 $17.22
Available to order.
Add to View Price
#19 BOLT, WIRE ADJUSTING
53192-268-000
 $8.00
Available to order.
Add to View Price
#20 BOLT, HANDLEBAR LEVER PIVOT
90114-329-000
 $9.16
Available to order.
Add to View Price
#21 NUT, FIXING
90321-268-000
Superseded by 90321-315-670
 $8.65
Available to order.
Add to View Price
#21 NUT, FIXING
90321-315-670
 $8.65
Unavailable
#21 NUT, FIXING
90321-968-000
Superseded by 90321-315-670
 $8.65
Unavailable
#22 BOLT, HEX. (6X25)
92000-06025
Superseded by 92101-06025-0A
 $1.62
Available to order.
Add to View Price
#22 BOLT, HEX. (6X25)
92101-06025-0A
 $1.62
Unavailable
#22 BOLT, HEX. (6X25)
93000-06025
Superseded by 93101-06025-0A
 $0.98
Available to order.
Add to View Price
#22 BOLT, HEX. (6X25)
93000-06025-0A
Superseded by 93101-06025-0A
 $0.98
Unavailable
#22 BOLT, HEX. (6X25)
93101-06025-0A
 $0.98
Unavailable
#23 SCREW, PAN (3X12)
93500-03012-0A
 $0.80
Available to order.
Add to View Price
#24 SCREW, PAN (5X16)
93500-05016-0A
 $0.88
Available to order.
Add to View Price
#25 SCREW, PAN (5X20)
93500-05020-0A
 $0.80
Available to order.
Add to View Price
#26 NUT, HEX. (6MM)
90310-KA3-711
Superseded by 94001-06200-0S
 $1.30
Available to order.
Add to View Price
#26 NUT, HEX. (6MM)
94000-06000-0S
Superseded by 94001-06200-0S
 $1.30
Unavailable
#26 NUT, HEX. (6MM)
94001-06000
Superseded by 94001-06200-0S
 $1.30
Unavailable
#26 NUT, HEX. (6MM)
94001-06000-0S
Superseded by 94001-06200-0S
 $1.30
Unavailable
#26 NUT, HEX. (6MM)
94001-06008-0S
Superseded by 94001-06200-0S
 $1.30
Unavailable
#26 NUT, HEX. (6MM)
94001-06200-0S
 $1.30
Unavailable
#26 NUT, HEX. (6MM)
94030-06000
Superseded by 94001-06200-0S
 $1.30
Unavailable
