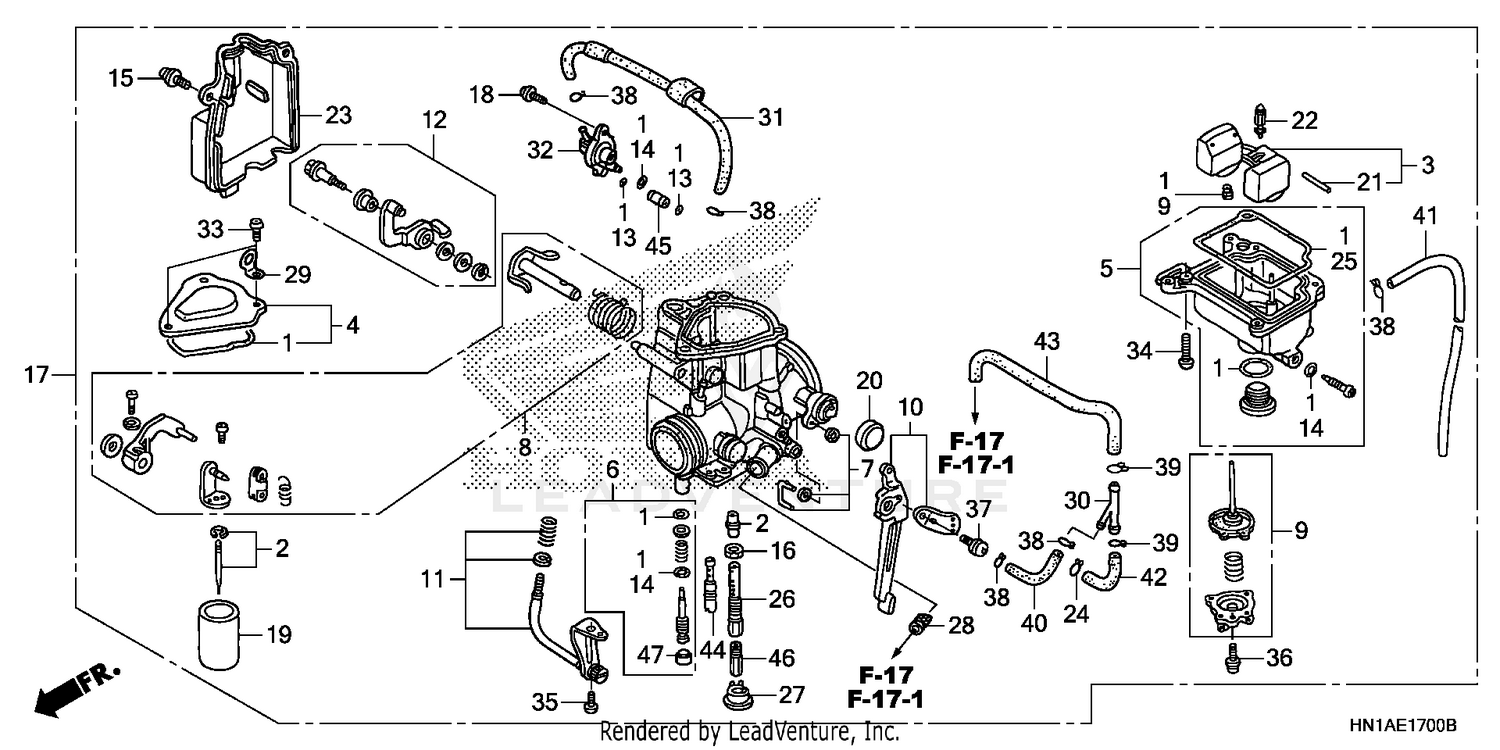

2014 Honda TRX 400X CARBURETOR OEM Parts Diagram
Accessory
+
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Other
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
GASKET SET
16010-HN1-A42
|
$30.33 | ||
|
Available to order. Add to View Price |
|||
|
#2
NEEDLE SET, JET
16012-HN1-A41
|
$24.95 | ||
|
Available to order. Add to View Price |
|||
|
#3
FLOAT SET
16013-HN8-003
|
$44.93 | ||
|
Available to order. Add to View Price |
|||
|
#4
TOP SET
16014-HN1-003
|
$31.73 | ||
|
Available to order. Add to View Price |
|||
|
#5
CHAMBER SET, FLOAT
16015-HN1-A41
|
$70.25 | ||
|
Available to order. Add to View Price |
|||
|
#6
SCREW SET
16016-HN1-A42
|
$19.53 | ||
|
Available to order. Add to View Price |
|||
|
#7
ROD SET, CHOKE
16017-HN1-003
|
$42.29 | ||
|
Available to order. Add to View Price |
|||
|
#8
ARM SET, LINK
16018-HN1-A41
|
$47.93 | ||
|
Available to order. Add to View Price |
|||
|
#9
DIAPHRAGM SET, PUMP
16021-HN1-A41
|
$46.49 | ||
|
Available to order. Add to View Price |
|||
|
#10
LEVER SET, CHOKE
16025-HM3-L00
|
$36.22 | ||
|
Available to order. Add to View Price |
|||
|
#11
SCREW SET
16028-HN1-003
|
$36.87 | ||
|
Available to order. Add to View Price |
|||
|
#12
ARM SET, PUMP
16031-HM3-L00
|
$88.64 | ||
|
Available to order. Add to View Price |
|||
|
#13
O-RING (1.3X2.8)
16075-GHB-630
|
$2.24 | ||
|
Available to order. Add to View Price |
|||
|
#14
O-RING (1.3X4.3)
16075-GHB-640
|
$3.13 | ||
|
Available to order. Add to View Price |
|||
|
#15
SCREW-WASHER
16080-HC0-003
|
$4.91 | ||
|
Available to order. Add to View Price |
|||
|
#16
NUT, HEX.
16096-HC0-003
|
$4.91 | ||
|
Available to order. Add to View Price |
|||
|
#17
CARBURETOR ASSY. (QB11A B)
16100-HN1-A43
|
$322.42 | ||
|
Available to order. Add to View Price |
|||
|
#18
SCREW
16108-MW0-750
|
$2.71 | ||
|
Available to order. Add to View Price |
|||
|
#19
VALVE, THROTTLE
16111-HN1-003
|
$84.16 | ||
|
Available to order. Add to View Price |
|||
|
#20
CAP, CHOKE DUST
16148-141-881
|
$5.62 | ||
|
Available to order. Add to View Price |
|||
|
#21
PIN, ARM
16152-HN8-003
|
$4.84 | ||
|
Available to order. Add to View Price |
|||
|
#22
VALVE, FLOAT
16155-HN7-003
|
$32.98 | ||
|
Available to order. Add to View Price |
|||
|
#23
COVER, BODY
16160-HN1-003
|
$41.82 | ||
|
Available to order. Add to View Price |
|||
|
#24
CLIP, TUBE
16163-KM4-004
|
$3.27 | ||
|
Available to order. Add to View Price |
|||
|
#25
GASKET, FLOAT CHAMBER
16163-MEA-671
|
$26.45 | ||
|
Available to order. Add to View Price |
|||
|
#26
HOLDER, NEEDLE JET
16165-HN1-003
|
$35.87 | ||
|
Available to order. Add to View Price |
|||
|
#27
HOLDER, JET
16168-HC4-003
|
$13.98 | ||
|
Available to order. Add to View Price |
|||
|
#28
SCREEN, FUEL STRAINER
16176-MW3-A80
|
$8.07 | ||
|
Available to order. Add to View Price |
|||
|
#29
BINDER
16179-HA0-003
|
$13.84 | ||
|
Available to order. Add to View Price |
|||
|
#30
JOINT
16180-ML6-671
|
$18.24 | ||
|
Available to order. Add to View Price |
|||
|
#31
TUBE
16199-HN1-003
|
$6.07 | ||
|
Available to order. Add to View Price |
|||
|
#32
VALVE ASSY., AIR CUT
16510-MZ2-650
|
$103.42 | ||
|
Available to order. Add to View Price |
|||
|
#33
SCREW, PAN (4X8)
93500-04008-0H
|
$0.88 | ||
|
Available to order. Add to View Price |
|||
|
#33
SCREW, PAN (4X8)
93500-04008-1H
Superseded by 93500-04008-0H
|
$0.88 | ||
|
Unavailable |
|||
|
#34
SCREW, PAN (4X14)
93500-04014-0H
|
$0.80 | ||
|
Available to order. Add to View Price |
|||
|
#34
SCREW, PAN (4X14)
93500-04014-1H
Superseded by 93500-04014-0H
|
$0.80 | ||
|
Unavailable |
|||
|
#35
SCREW, PAN (6X10)
93500-06010-0H
|
$0.92 | ||
|
Available to order. Add to View Price |
|||
|
#35
SCREW, PAN (6X10)
93500-06010-1H
Superseded by 93500-06010-0H
|
$0.92 | ||
|
Unavailable |
|||
|
#36
SCREW-WASHER (4X12)
93892-04012-08
|
$0.62 | ||
|
Available to order. Add to View Price |
|||
|
#36
SCREW-WASHER (4X12)
93892-04012-18
Superseded by 93892-04012-08
|
$0.62 | ||
|
Unavailable |
|||
|
#37
SCREW-WASHER (5X10)
93892-05010-18
|
$1.13 | ||
|
Available to order. Add to View Price |
|||
|
#38
CLIP, TUBE (B7)
95002-02079
|
$1.29 | ||
|
Available to order. Add to View Price |
|||
|
#39
CLIP, TUBE (B1 8)
95002-02089
|
$1.11 | ||
|
Available to order. Add to View Price |
|||
|
#40
BULK HOSE, VACUUM (3.5X1000) (3.5X50)
95005-35001-50M
|
$15.67 | ||
|
Available to order. Add to View Price |
|||
|
#41
BULK HOSE, VACUUM (3.5X1000) (3.5X400)
95005-35001-50M
|
$15.67 | ||
|
Unavailable |
|||
|
#42
BULK HOSE, VACUUM (4.5X1000) (4.5X50)
95005-45001-50M
|
$8.30 | ||
|
Available to order. Add to View Price |
|||
|
#43
BULK HOSE, VACUUM (4.5X1000) (4.5X220)
95005-45001-50M
|
$8.30 | ||
|
Unavailable |
|||
|
#44
JET, SLOW (#38)
99103-420-0380
|
$12.33 | ||
|
Available to order. Add to View Price |
|||
|
#45
JET (#110)
99108-MW0-1102
Superseded by 99108-MY1-1100
|
$13.16 | ||
|
Available to order. Add to View Price |
|||
|
#46
JET, MAIN (#142)
99113-GHB-1420
|
$10.36 | ||
|
Available to order. Add to View Price |
|||
|
#46
JET, MAIN (#148)
99113-GHB-1480
|
$10.36 | ||
|
Available to order. Add to View Price |
|||
|
#47
CAP, ADJUSTING SCREW
16312-KYK-911
|
$2.93 | ||
|
Available to order. Add to View Price |
|||
