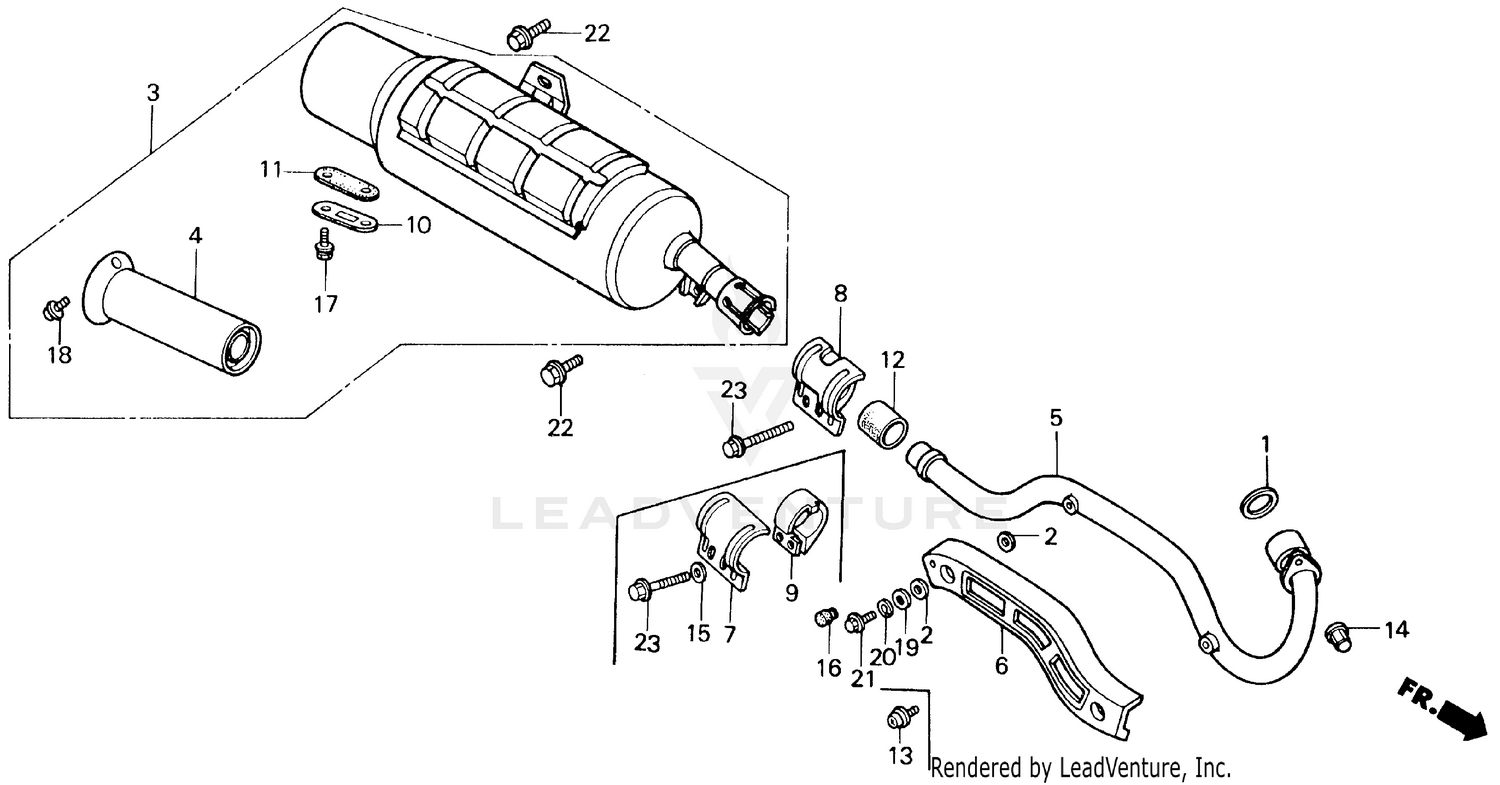

1987 Honda TRX200SX FOURTRAX EXHAUST MUFFLER OEM Parts Diagram
Accessory
+
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Other
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
GASKET, EX. PIPE
18291-MN5-650
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
|
#1
GASKET, EX. PIPE
18291-216-000
Superseded by 18291-MN5-650
|
$4.45 | ||
|
Unavailable |
|||
|
#2
GASKET, PROTECTOR
18292-KF9-900
Superseded by 18292-MM9-740
|
$3.58 | ||
|
Available to order. Add to View Price |
|||
|
#2
GASKET, PROTECTOR
18292-MM9-740
|
$3.58 | ||
|
Unavailable |
|||
|
#2
GASKET, PROTECTOR
18292-415-000
Superseded by 18292-MM9-740
|
$3.58 | ||
|
Unavailable |
|||
|
#3
MUFFLER (NOT AVAILABLE)
18310-HB3-770
|
$259.97 | ||
|
Available to order. Add to View Price |
|||
|
#4
PIPE, TAIL (NOT AVAILABLE)
18311-965-003
|
$71.21 | ||
|
Available to order. Add to View Price |
|||
|
#5
PIPE, EX.
18320-HB3-000
|
$96.33 | ||
|
Available to order. Add to View Price |
|||
|
#6
PROTECTOR, EX. PIPE
18321-HB3-010
|
$33.71 | ||
|
Available to order. Add to View Price |
|||
|
#8
BAND, MUFFLER
18370-HB3-000
|
$20.46 | ||
|
Available to order. Add to View Price |
|||
|
#10
LID, MUFFLER
18373-429-010
|
$10.44 | ||
|
Available to order. Add to View Price |
|||
|
#11
GASKET, MUFFLER LID
18374-MN1-880
|
$4.98 | ||
|
Available to order. Add to View Price |
|||
|
#11
GASKET, MUFFLER LID
18374-429-000
Superseded by 18374-MN1-880
|
$4.98 | ||
|
Unavailable |
|||
|
#12
GASKET, MUFFLER
18391-958-306
|
$21.62 | ||
|
Available to order. Add to View Price |
|||
|
#12
GASKET, MUFFLER
18391-958-681
Superseded by 18391-958-306
|
$21.62 | ||
|
Unavailable |
|||
|
#13
SCREW-WASHER (6X12)
90136-MC7-000
|
$5.51 | ||
|
Available to order. Add to View Price |
|||
|
#14
NUT, CAP (6MM)
90304-438-000
|
$8.45 | ||
|
Available to order. Add to View Price |
|||
|
#16
RUBBER, EX. PIPE PROTECTOR CUSHION
90899-HB3-000
|
$25.94 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT-WASHER (6X12)
93401-06012-07
|
$1.62 | ||
|
Available to order. Add to View Price |
|||
|
#17
BOLT-WASHER (6X12)
93411-06012-07
Superseded by 93401-06012-07
|
$1.62 | ||
|
Unavailable |
|||
|
#17
BOLT-WASHER (6X12)
93481-06012-07
Superseded by 93401-06012-07
|
$1.62 | ||
|
Unavailable |
|||
|
#18
SCREW-WASHER (6X10)
93891-06010-07
|
$0.66 | ||
|
Available to order. Add to View Price |
|||
|
#22
BOLT, FLANGE (10X16)
96300-10016-08
|
$1.87 | ||
|
Available to order. Add to View Price |
|||
|
#22
BOLT, FLANGE (10X16)
96500-10016-08
Superseded by 96300-10016-08
|
$1.87 | ||
|
Unavailable |
|||
|
#23
BOLT, FLANGE (8X32)
96300-08032-08
|
$2.40 | ||
|
Available to order. Add to View Price |
|||
|
#23
BOLT, FLANGE (8X32)
96500-08032-08
Superseded by 96300-08032-08
|
$2.40 | ||
|
Unavailable |
|||
