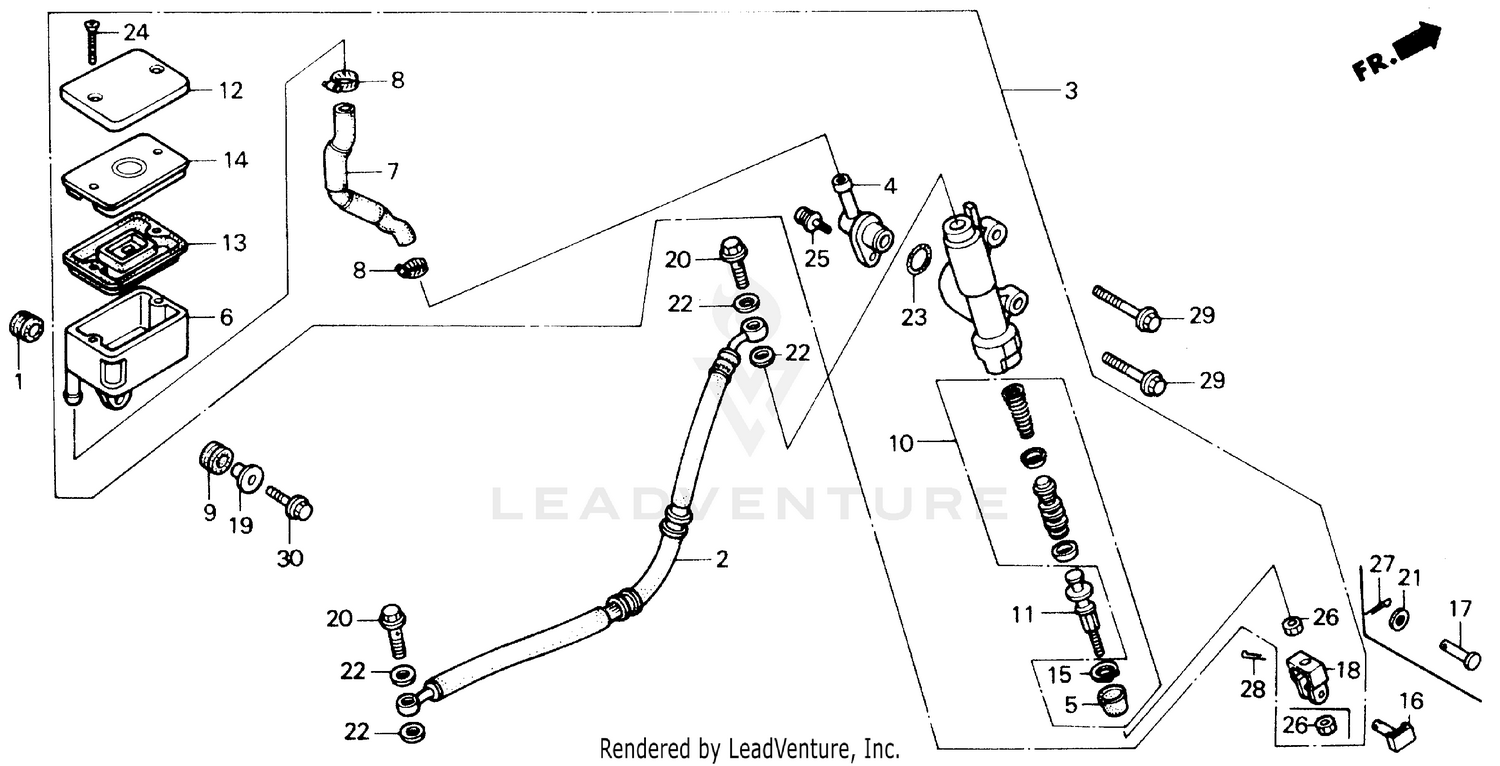

Rear Brake Master Cylinder Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
RUBBER, TAILLIGHT SETTING
33718-GE2-690
|
$5.45 | ||
|
Available to order. Add to View Price |
|||
|
#2
HOSE ASSY., RR. BRAKE
43310-HC0-671
|
$63.37 | ||
|
Available to order. Add to View Price |
|||
|
#3
MASTER CYLINDER ASSY., RR. (NOT AVAILABLE)
43500-HC0-671
|
$282.84 | ||
|
Available to order. Add to View Price |
|||
|
#4
CONNECTOR
43503-MJ0-006
|
$9.01 | ||
|
Available to order. Add to View Price |
|||
|
#5
BOOT
43504-MB2-006
|
$11.47 | ||
|
Available to order. Add to View Price |
|||
|
#6
CUP, OIL
43511-HA2-016
|
$42.44 | ||
|
Available to order. Add to View Price |
|||
|
#7
HOSE, MASTER CYLINDER OIL
43512-HC0-013
Superseded by 43512-HM3-A61
|
$31.60 | ||
|
Available to order. Add to View Price |
|||
|
#7
HOSE, MASTER CYLINDER OIL
43512-HM3-A61
|
$31.60 | ||
|
Unavailable |
|||
|
#8
CLAMP, MASTER CYLINDER OIL HOSE
43514-964-006
|
$20.47 | ||
|
Available to order. Add to View Price |
|||
|
#9
RUBBER, OIL CUP MOUNTING
43516-HA2-000
|
$5.31 | ||
|
Available to order. Add to View Price |
|||
|
#10
PISTON SET, MASTER CYLINDER
43520-MJ6-305
Superseded by 43520-MJ6-315
|
$54.98 | ||
|
Available to order. Add to View Price |
|||
|
#10
PISTON SET, MASTER CYLINDER (NISSIN)
43520-MJ6-315
|
$54.98 | ||
|
Unavailable |
|||
|
#11
ROD, PUSH (NISSIN)
43530-HC0-006
|
$24.95 | ||
|
Available to order. Add to View Price |
|||
|
#12
CAP, MASTER CYLINDER
45513-HA2-006
|
$31.45 | ||
|
Available to order. Add to View Price |
|||
|
#13
DIAPHRAGM
45520-MG7-006
|
$12.11 | ||
|
Available to order. Add to View Price |
|||
|
#14
PLATE, DIAPHRAGM
45521-HA2-006
|
$12.40 | ||
|
Available to order. Add to View Price |
|||
|
#15
CIRCLIP
46182-500-013
|
$4.85 | ||
|
Available to order. Add to View Price |
|||
|
#16
PIN D, JOINT
46503-KW3-000
Superseded by 95015-54000
|
$5.02 | ||
|
Available to order. Add to View Price |
|||
|
#16
PIN D, JOINT
95015-54000
|
$5.02 | ||
|
Unavailable |
|||
|
#18
JOINT, BRAKE ROD
46504-MT8-006
|
$9.75 | ||
|
Available to order. Add to View Price |
|||
|
#19
COLLAR (6.3X13)
50324-425-010
|
$5.98 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT, OIL (10X22) (SAGA)
90145-KM3-750
Superseded by 90145-KM3-751
|
$12.58 | ||
|
Available to order. Add to View Price |
|||
|
#20
BOLT, OIL (10X22) (SAGA)
90145-KM3-751
|
$12.58 | ||
|
Unavailable |
|||
|
#22
WASHER, OIL BOLT
90545-300-000
|
$4.73 | ||
|
Available to order. Add to View Price |
|||
|
#23
O-RING (14.8X2.4)
91212-422-006
|
$2.76 | ||
|
Available to order. Add to View Price |
|||
|
#24
SCREW, FLAT (4X30)
93600-04030-1A
|
$0.49 | ||
|
Available to order. Add to View Price |
|||
|
#25
SCREW-WASHER (4X12)
93893-04012-08
|
$1.33 | ||
|
Available to order. Add to View Price |
|||
|
#25
SCREW-WASHER (4X12)
93893-04012-18
Superseded by 93893-04012-08
|
$1.33 | ||
|
Unavailable |
|||
|
#26
NUT,HEX 8MM
94002-080000S
|
$1.30 | ||
|
Available to order. Add to View Price |
|||
|
#28
PIN, COTTER (2.0X22)
94201-20200
Superseded by 94201-29220
|
$1.02 | ||
|
Unavailable |
|||
|
#28
PIN, SPLIT (2.0X22)
94201-20220
|
$1.02 | ||
|
Unavailable |
|||
|
#28
PIN, COTTER (2.0X35)
94201-20250
Superseded by 94201-20350
|
$1.02 | ||
|
Available to order. Add to View Price |
|||
|
#28
PIN, COTTER (2.0X35)
94201-20280
Superseded by 94201-20350
|
$1.02 | ||
|
Unavailable |
|||
|
#28
PIN, COTTER (2.0X35)
94201-20320
Superseded by 94201-20350
|
$1.02 | ||
|
Unavailable |
|||
|
#28
PIN, SPLIT (2.0X35)
94201-20350
|
$1.02 | ||
|
Unavailable |
|||
|
#28
PIN, COTTER (2.0X22)
94201-29220
|
$1.02 | ||
|
Unavailable |
|||
|
#29
BOLT, FLANGE (6X20) (NOT AVAILABLE)
96400-06020-07
|
$0.83 | ||
|
Available to order. Add to View Price |
|||
|
#30
BOLT, FLANGE (6X22)
96300-06022-00
|
$1.51 | ||
|
Available to order. Add to View Price |
|||
|
#30
BOLT, FLANGE (6X22)
96400-06022-00
Superseded by 96300-06022-00
|
$1.51 | ||
|
Unavailable |
|||
