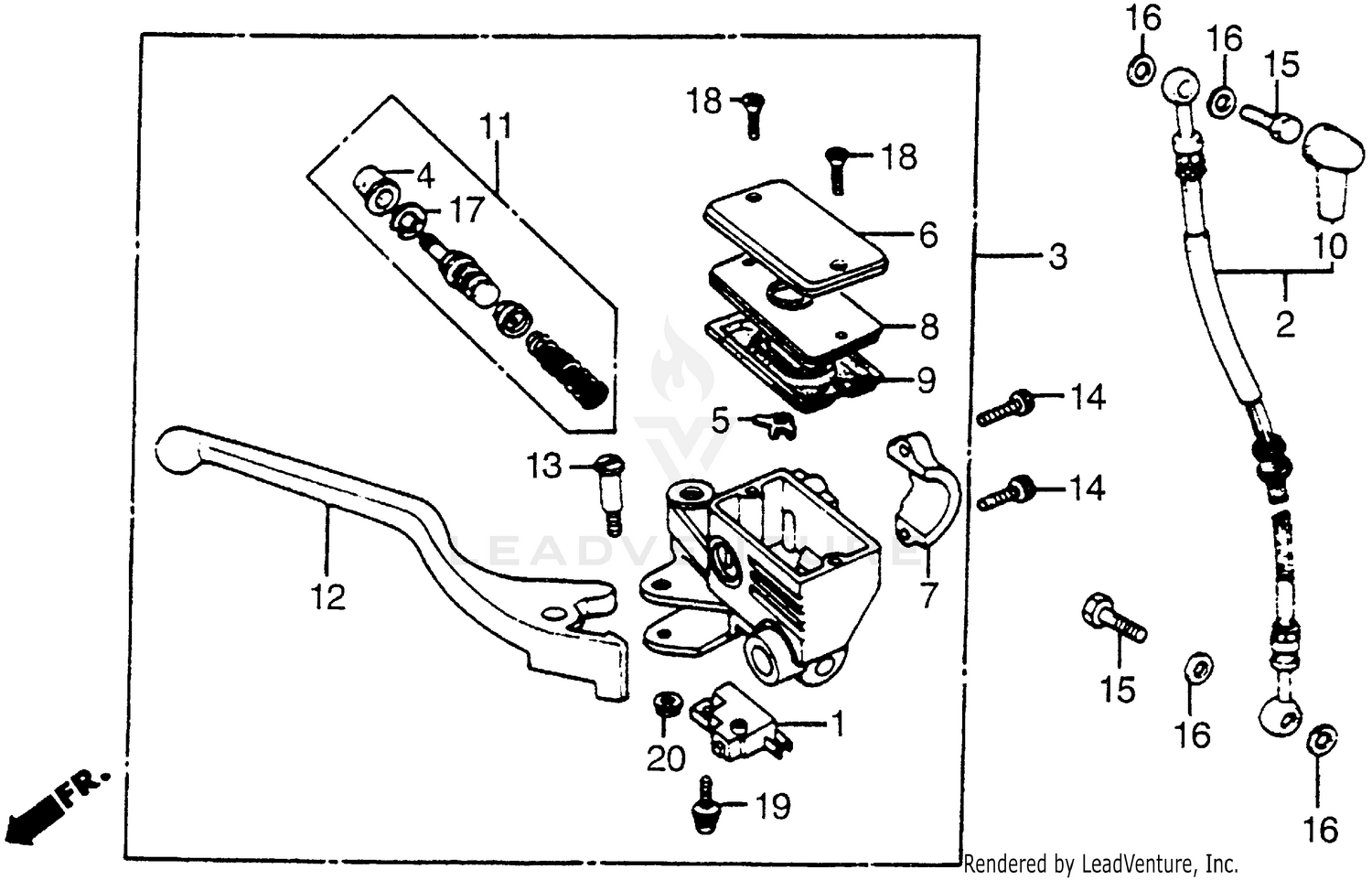

Front Brake Master Cyl. Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SWITCH ASSY., FR. STOP
35340-MA5-671
|
$27.98 | ||
|
Available to order. Add to View Price |
|||
|
#2
HOSE, FR. BRAKE (NOT AVAILABLE)
45126-MJ8-003
|
$52.06 | ||
|
Available to order. Add to View Price |
|||
|
#3
CYLINDER SUB-ASSY.
45500-MF5-772
Superseded by 45510-MF5-405
|
$330.52 | ||
|
Available to order. Add to View Price |
|||
|
#4
BOOT
45504-410-003
|
$13.89 | ||
|
Available to order. Add to View Price |
|||
|
#5
PROTECTOR
45512-MA6-006
|
$5.07 | ||
|
Available to order. Add to View Price |
|||
|
#6
CAP, MASTER CYLINDER
45513-KE5-026
|
$47.71 | ||
|
Available to order. Add to View Price |
|||
|
#7
HOLDER, MASTER CYLINDER
45517-MB0-006
|
$17.61 | ||
|
Available to order. Add to View Price |
|||
|
#8
PLATE, DIAPHRAGM
45518-MB4-671
|
$13.85 | ||
|
Available to order. Add to View Price |
|||
|
#9
DIAPHRAGM
45520-MA5-672
|
$20.71 | ||
|
Available to order. Add to View Price |
|||
|
#10
BOOT, MASTER CYLINDER
45522-422-000
|
$9.91 | ||
|
Available to order. Add to View Price |
|||
|
#11
MASTER CYLINDER SET
45530-MA4-671
|
$54.55 | ||
|
Available to order. Add to View Price |
|||
|
#12
LEVER, R. HANDLE
53175-KE8-006
Superseded by 53175-MK7-671
|
$20.42 | ||
|
Available to order. Add to View Price |
|||
|
#12
LEVER, R. HANDLE
53175-MJ6-006
Superseded by 53175-MK7-671
|
$20.42 | ||
|
Unavailable |
|||
|
#13
BOLT, R. HANDLEBAR PIVOT
90114-MA5-671
|
$10.76 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT, SOCKET (6X23)
90117-MB0-000
|
$4.12 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT, OIL (10X22) (SAGA)
90145-KM3-750
Superseded by 90145-KM3-751
|
$12.58 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT, OIL (10X22)
90145-KM3-751
|
$12.58 | ||
|
Unavailable |
|||
|
#15
BOLT, OIL (10X22) (SAGA)
90145-961-010
Superseded by 90145-KM3-751
|
$12.58 | ||
|
Unavailable |
|||
|
#16
WASHER, OIL BOLT
90545-300-000
|
$4.73 | ||
|
Available to order. Add to View Price |
|||
|
#17
CIRCLIP
90651-MA5-671
|
$3.15 | ||
|
Available to order. Add to View Price |
|||
|
#18
SCREW, FLAT (4X12)
93600-04012-0G
|
$0.88 | ||
|
Available to order. Add to View Price |
|||
|
#18
SCREW, FLAT (4X12)
93600-04012-1G
Superseded by 93600-04012-0G
|
$0.88 | ||
|
Unavailable |
|||
|
#19
SCREW-WASHER (4X12)
93893-04012-08
|
$1.33 | ||
|
Available to order. Add to View Price |
|||
|
#19
SCREW-WASHER (4X12)
93893-04012-18
Superseded by 93893-04012-08
|
$1.33 | ||
|
Unavailable |
|||
|
#20
NUT, FLANGE (6MM)
94050-06000
|
$0.60 | ||
|
Available to order. Add to View Price |
|||
