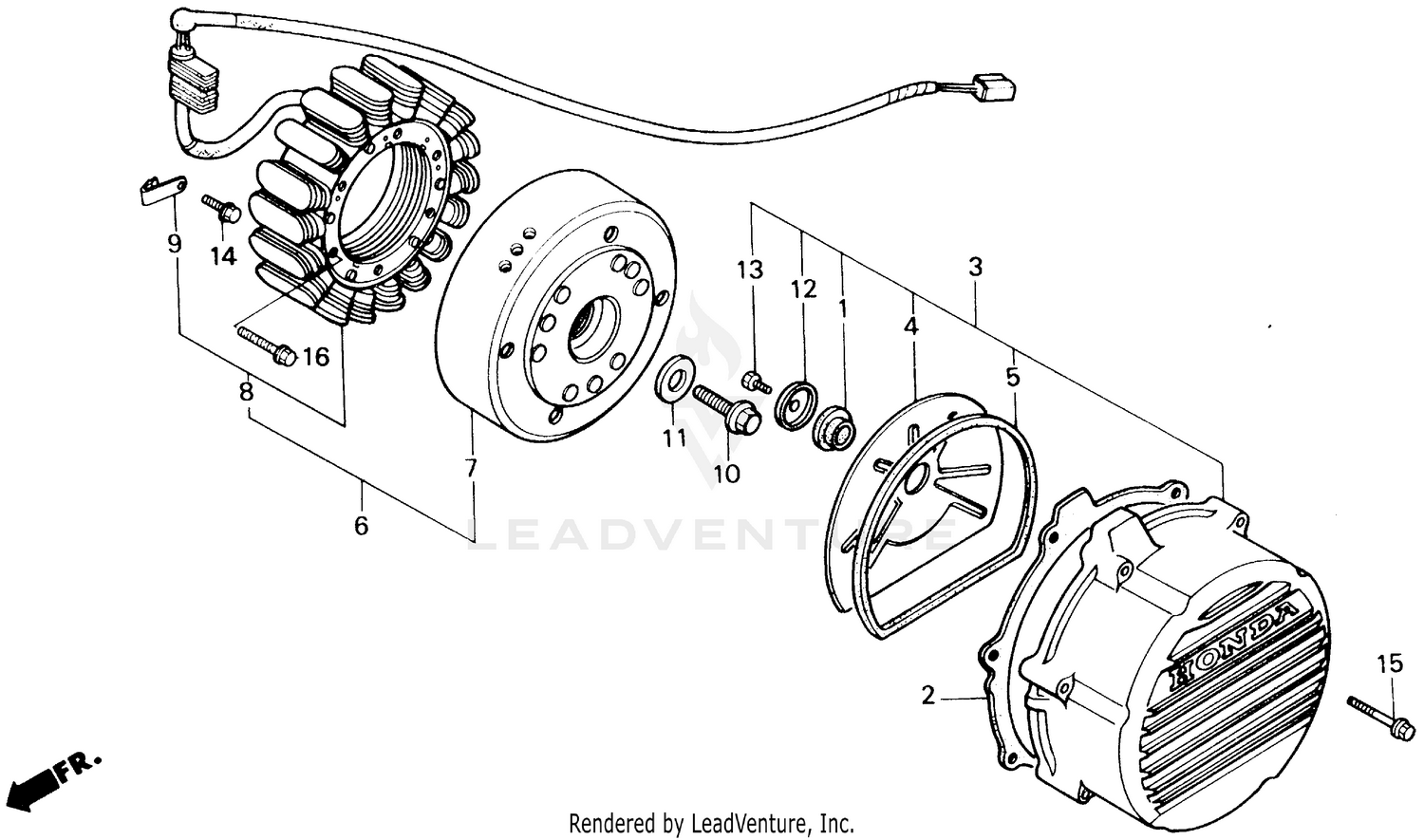

Alternator Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
RUBBER A, R. COVER DAMPER
11335-ML7-300
|
$9.93 | ||
|
Available to order. Add to View Price |
|||
|
#2
GASKET, ALTERNATOR COVER
11636-ML7-000
Superseded by 11636-ML7-306
|
$7.83 | ||
|
Available to order. Add to View Price |
|||
|
#2
GASKET, ALTERNATOR COVER
11636-ML7-306
|
$7.83 | ||
|
Unavailable |
|||
|
#3
COVER, ALTERNATOR (NOT AVAILABLE)
11640-ML7-690
|
$200.59 | ||
|
Available to order. Add to View Price |
|||
|
#4
PLATE, ALTERNATOR COVER
11643-ML7-690
|
$17.18 | ||
|
Available to order. Add to View Price |
|||
|
#5
RUBBER, ALTERNATOR COVER DAMPER
11645-ML7-300
Superseded by 11645-ML7-310
|
$12.90 | ||
|
Available to order. Add to View Price |
|||
|
#5
RUBBER, ALTERNATOR COVER DAMPER
11645-ML7-310
|
$12.90 | ||
|
Unavailable |
|||
|
#6
ALTERNATOR ASSY., FLYWHEEL TYPE (DENSO) (NOT AVAILABLE)
31100-ML7-691
|
$568.62 | ||
|
Available to order. Add to View Price |
|||
|
#6
ALTERNATOR ASSY., FLYWHEEL TYPE (MITSUBA)
31100-ML7-692
|
$774.68 | ||
|
Available to order. Add to View Price |
|||
|
#7
ROTOR (DENSO)
31110-ML7-004
|
$494.07 | ||
|
Available to order. Add to View Price |
|||
|
#7
ROTOR (MITSUBA)
31110-ML7-156
|
$477.71 | ||
|
Available to order. Add to View Price |
|||
|
#8
STATOR (DENSO)
31120-ML7-691
|
$425.19 | ||
|
Available to order. Add to View Price |
|||
|
#8
STATOR (MITSUBA)
31120-ML7-692
|
$354.61 | ||
|
Available to order. Add to View Price |
|||
|
#9
CLAMP, ALTERNATOR WIRE
31130-ML7-004
|
$2.19 | ||
|
Available to order. Add to View Price |
|||
|
#9
CLAMP, ALTERNATOR WIRE
31130-ML7-156
Superseded by 31130-ML7-004
|
$2.19 | ||
|
Unavailable |
|||
|
#10
BOLT, FLANGE (12X45)
90023-MA6-000
|
$11.98 | ||
|
Available to order. Add to View Price |
|||
|
#11
WASHER (12X30X4.5)
90401-KK9-960
|
$8.66 | ||
|
Available to order. Add to View Price |
|||
|
#12
WASHER, SPECIAL (6MM)
90406-ML7-000
|
$2.49 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT, HEX. (6X10)
93300-06010-0A
Superseded by 93301-06010-0A
|
$0.75 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT, HEX. (6X10)
93301-06010-0A
|
$0.75 | ||
|
Unavailable |
|||
|
#14
BOLT, FLANGE (6X12)
96000-06012-00
Superseded by 96001-06012-00
|
$1.77 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT, FLANGE (6X12)
96001-06012-00
|
$1.77 | ||
|
Unavailable |
|||
|
#15
BOLT, FLANGE (6X28)
96000-06028-07
Superseded by 96001-06028-07
|
$1.64 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT, FLANGE (6X28)
96001-06028-07
|
$1.64 | ||
|
Unavailable |
|||
|
#16
BOLT, FLANGE (6X35)
96000-06035-00
Superseded by 96001-06035-00
|
$1.51 | ||
|
Available to order. Add to View Price |
|||
|
#16
BOLT, FLANGE (6X35)
96001-06035-00
|
$1.51 | ||
|
Unavailable |
|||
