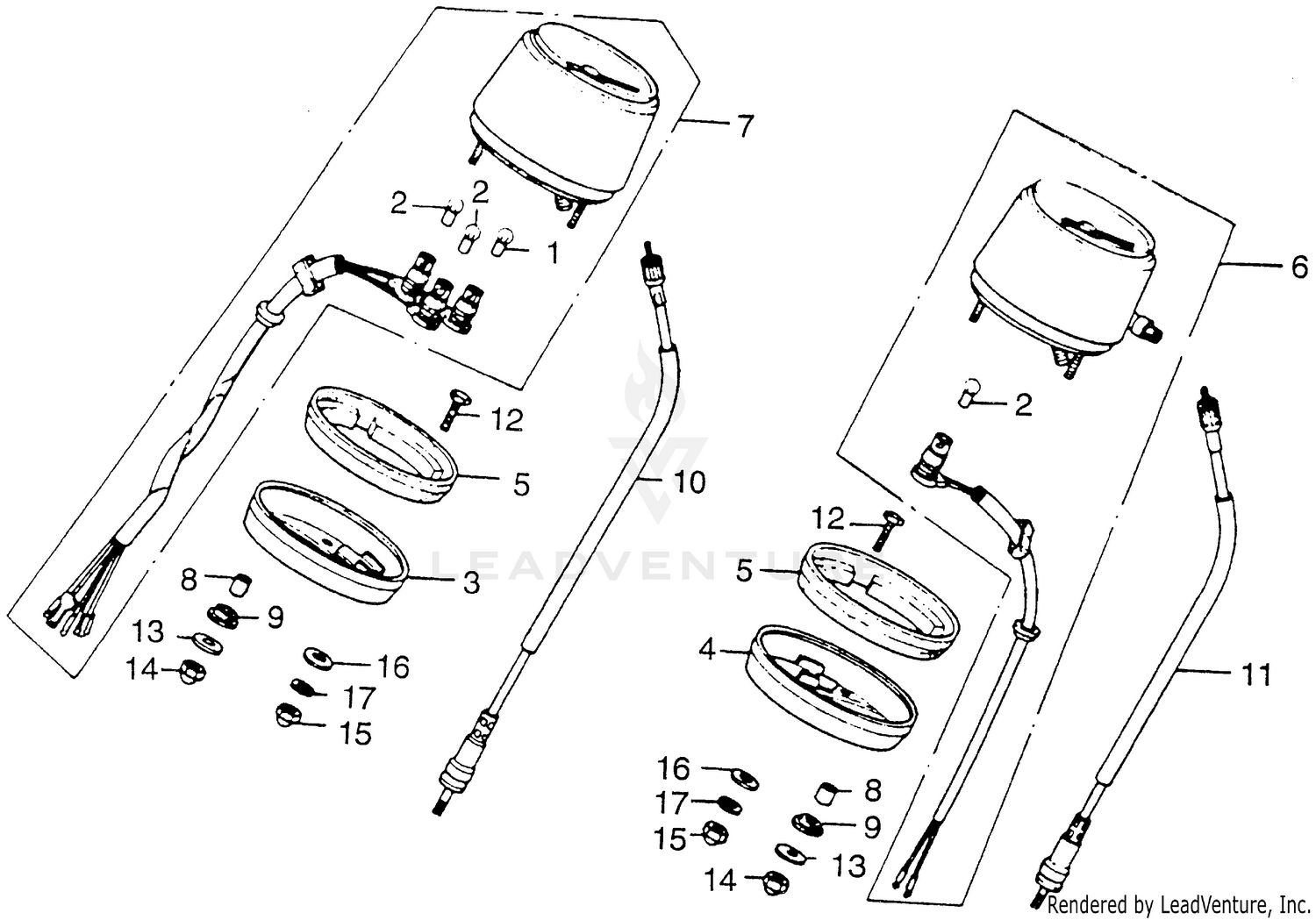

Speedometer + Tachometer Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
BULB, DASH (6V3W) (STANLEY)
34902-202-000
|
$3.64 | ||
|
Available to order. Add to View Price |
|||
|
#2
BULB, SPEEDOMETER (6V1.7W1CP) (51) (STANLEY)
34908-230-000
|
$5.53 | ||
|
Available to order. Add to View Price |
|||
|
#3
RING, R. METER SETTING
37111-453-008
|
$28.49 | ||
|
Available to order. Add to View Price |
|||
|
#4
RING, L. METER SETTING
37112-453-008
|
$25.70 | ||
|
Available to order. Add to View Price |
|||
|
#5
RUBBER, METER (NOT AVAILABLE)
37113-453-008
|
$18.41 | ||
|
Available to order. Add to View Price |
|||
|
#6
SPEEDOMETER ASSY. (MPH) (NIPPON SEIKI) (NOT AVAILABLE)
37200-385-671
|
$442.46 | ||
|
Available to order. Add to View Price |
|||
|
#7
TACHOMETER ASSY. (NOT AVAILABLE)
37240-329-700
|
$125.55 | ||
|
Available to order. Add to View Price |
|||
|
#8
COLLAR, INSTRUMENT SETTING
37243-453-000
|
$2.17 | ||
|
Unavailable |
|||
|
#9
RUBBER, METER SETTING
37244-307-670
|
$2.89 | ||
|
Available to order. Add to View Price |
|||
|
#10
CABLE ASSY., TACHOMETER (NOT AVAILABLE)
37260-356-000
|
$14.19 | ||
|
Available to order. Add to View Price |
|||
|
#11
CABLE ASSY., SPEEDOMETER
44830-MA1-730
Superseded by 44830-426-830
|
$29.09 | ||
|
Available to order. Add to View Price |
|||
|
#11
CABLE ASSY., SPEEDOMETER
44830-356-000
Superseded by 44830-426-830
|
$29.09 | ||
|
Unavailable |
|||
|
#11
CABLE ASSY., SPEEDOMETER
44830-426-830
|
$29.09 | ||
|
Unavailable |
|||
|
#12
BOLT, METER SETTING
90159-356-000
|
$5.44 | ||
|
Available to order. Add to View Price |
|||
|
#13
WASHER B, HANDLE HOLDER SETTING
90525-030-000
|
$1.96 | ||
|
Available to order. Add to View Price |
|||
|
#14
NUT, CAP (6MM)
94021-06020
|
$1.78 | ||
|
Available to order. Add to View Price |
|||
|
#15
NUT, CAP (8MM)
94021-08020-0S
|
$1.78 | ||
|
Available to order. Add to View Price |
|||
|
#16
WASHER, PLAIN (8MM)
94101-08000
|
$0.80 | ||
|
Available to order. Add to View Price |
|||
|
#17
WASHER, SPRING (8MM)
94111-08000
|
$0.97 | ||
|
Available to order. Add to View Price |
|||
