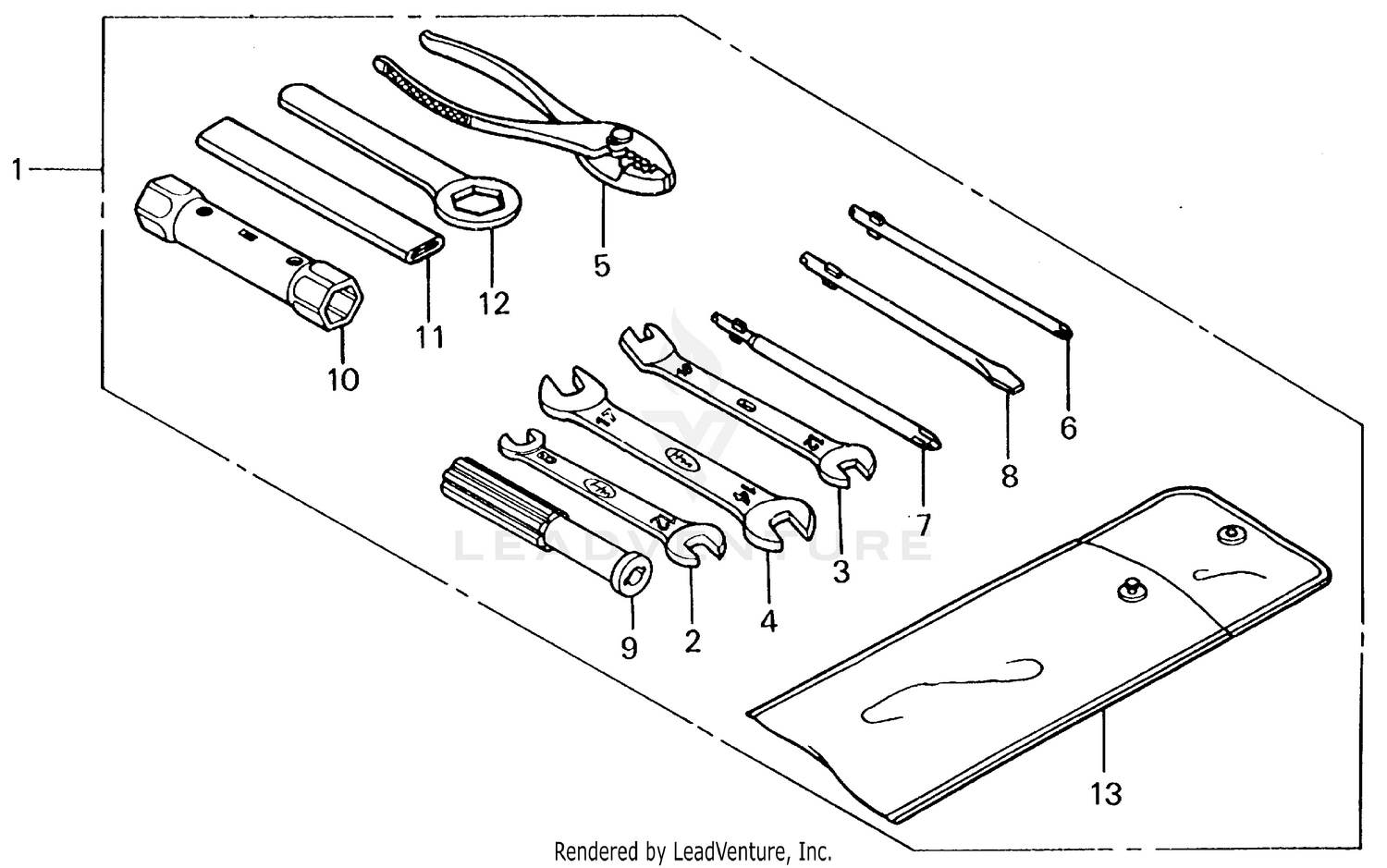

1985 Honda XL250R TOOLS OEM Parts Diagram
Accessory
+
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Dash & Gauges
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Other
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
TOOL SET
89010-KB9-000
|
$34.79 | ||
|
Available to order. Add to View Price |
|||
|
#2
WRENCH (8X12) (OPEN END)
99001-08120
|
$3.02 | ||
|
Available to order. Add to View Price |
|||
|
#3
WRENCH (10X12) (OPEN END)
99001-10120
|
$5.55 | ||
|
Available to order. Add to View Price |
|||
|
#4
WRENCH (14X17) (OPEN END)
99001-14170
|
$8.87 | ||
|
Available to order. Add to View Price |
|||
|
#5
PLIERS (135) (KOWA)
99002-13500
Superseded by 89210-GBJ-J10
|
$15.50 | ||
|
Available to order. Add to View Price |
|||
|
#6
SCREWDRIVER 1, PHILLIPS (NO.2)
99003-10000
|
$3.88 | ||
|
Available to order. Add to View Price |
|||
|
#7
SCREWDRIVER 2, PHILLIPS (NO.3)
99003-20000
|
$3.88 | ||
|
Available to order. Add to View Price |
|||
|
#8
SCREWDRIVER 3, STRAIGHT SLOT (NO.2)
99003-30000
|
$3.88 | ||
|
Available to order. Add to View Price |
|||
|
#9
GRIP
99003-50000
|
$3.88 | ||
|
Available to order. Add to View Price |
|||
|
#10
WRENCH, BOX (P18X19)
99004-18190
|
$4.15 | ||
|
Available to order. Add to View Price |
|||
|
#11
HANDLE, EYE WRENCH (120MM)
99006-12000
|
$3.45 | ||
|
Available to order. Add to View Price |
|||
|
#12
WRENCH, EYE (24MM)
99006-24000
|
$5.23 | ||
|
Available to order. Add to View Price |
|||
|
#13
BAG, TOOL (160MM)
99008-01600
|
$2.43 | ||
|
Available to order. Add to View Price |
|||
