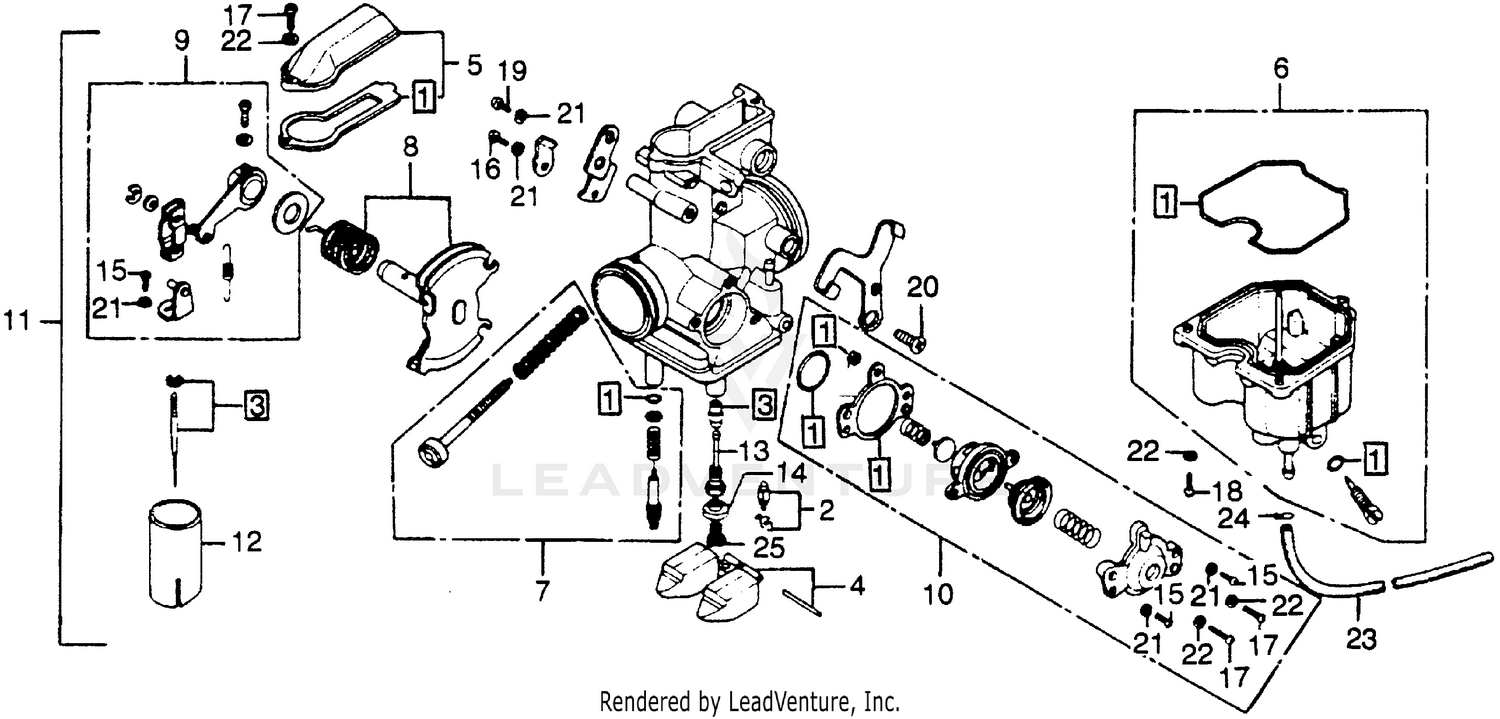

Carburetor 77-78 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
GASKET SET
16010-385-680
Superseded by 16010-386-305
|
$20.62 | ||
|
Available to order. Add to View Price |
|||
|
#2
VALVE SET, FLOAT
16011-KG0-004
Superseded by 16011-KCK-910
|
$39.20 | ||
|
Available to order. Add to View Price |
|||
|
#2
VALVE SET, FLOAT
16011-382-004
Superseded by 16011-KCK-910
|
$39.20 | ||
|
Unavailable |
|||
|
#2
VALVE SET, FLOAT
16011-393-004
Superseded by 16011-KCK-910
|
$39.20 | ||
|
Unavailable |
|||
|
#3
NEEDLE SET, JET (NOT AVAILABLE)
16012-385-680
|
$19.89 | ||
|
Available to order. Add to View Price |
|||
|
#4
FLOAT SET
16013-KCY-670
|
$70.27 | ||
|
Available to order. Add to View Price |
|||
|
#4
FLOAT SET
16013-393-004
Superseded by 16013-KCY-670
|
$70.27 | ||
|
Unavailable |
|||
|
#5
TOP SET
16014-KCE-771
|
$27.21 | ||
|
Available to order. Add to View Price |
|||
|
#5
TOP SET
16014-KR6-004
Superseded by 16014-KCE-771
|
$27.21 | ||
|
Unavailable |
|||
|
#5
TOP SET
16014-385-680
Superseded by 16014-KCE-771
|
$27.21 | ||
|
Unavailable |
|||
|
#6
CHAMBER SET, FLOAT
16015-KN4-A10
|
$106.56 | ||
|
Available to order. Add to View Price |
|||
|
#6
CHAMBER SET, FLOAT
16015-393-004
Superseded by 16015-KN4-A10
|
$106.56 | ||
|
Unavailable |
|||
|
#6
CHAMBER SET, FLOAT
16015-428-014
Superseded by 16015-KN4-A10
|
$106.56 | ||
|
Unavailable |
|||
|
#7
SCREW SET (NOT AVAILABLE)
16016-385-680
|
$11.64 | ||
|
Available to order. Add to View Price |
|||
|
#8
LINK SET
16017-385-680
|
$93.80 | ||
|
Available to order. Add to View Price |
|||
|
#9
ARM SET, LINK
16018-385-680
|
$104.78 | ||
|
Available to order. Add to View Price |
|||
|
#10
VALVE SET, AIR CUT (NOT AVAILABLE)
16048-385-680
|
$79.47 | ||
|
Available to order. Add to View Price |
|||
|
#11
CARBURETOR ASSY. (NOT AVAILABLE)
16100-385-681
|
$380.83 | ||
|
Available to order. Add to View Price |
|||
|
#12
VALVE SET, THROTTLE
16111-385-680
|
$57.29 | ||
|
Available to order. Add to View Price |
|||
|
#13
HOLDER, NEEDLE JET (NOT AVAILABLE)
16165-385-680
|
$8.85 | ||
|
Available to order. Add to View Price |
|||
|
#14
HOLDER, JET
16168-382-014
|
$11.37 | ||
|
Available to order. Add to View Price |
|||
|
#15
SCREW, PAN (3X8)
93500-03008-0H
|
$0.79 | ||
|
Available to order. Add to View Price |
|||
|
#16
SCREW, PAN (4X8)
93500-04008-0H
|
$0.90 | ||
|
Available to order. Add to View Price |
|||
|
#17
SCREW, PAN (4X12)
93500-04012-0H
|
$0.90 | ||
|
Available to order. Add to View Price |
|||
|
#18
SCREW, PAN (4X16)
93500-04016-0H
|
$0.81 | ||
|
Available to order. Add to View Price |
|||
|
#19
SCREW, PAN (5X8)
93500-05008-0H
|
$0.90 | ||
|
Available to order. Add to View Price |
|||
|
#20
SCREW, FLAT (5X10)
93600-05010-0H
|
$0.66 | ||
|
Available to order. Add to View Price |
|||
|
#21
WASHER, SPRING (3MM)
94111-03800
|
$0.64 | ||
|
Available to order. Add to View Price |
|||
|
#22
WASHER, SPRING (4MM)
94111-04800
|
$0.98 | ||
|
Available to order. Add to View Price |
|||
|
#23
BULK HOSE, FUEL (3.5X3000) (3.5X360)
95001-35003-60M
|
$24.17 | ||
|
Available to order. Add to View Price |
|||
|
#24
CLIP, TUBE (B7)
95002-02070
|
$1.79 | ||
|
Available to order. Add to View Price |
|||
|
#25
JET, MAIN (#115)
99101-GHB-1150
Superseded by 99101-MAZ-1150
|
$10.17 | ||
|
Available to order. Add to View Price |
|||
|
#25
JET, MAIN (#115)
99101-MAZ-1150
|
$10.17 | ||
|
Unavailable |
|||
|
#25
JET, MAIN (#115)
99101-393-1150
Superseded by 99101-MAZ-1150
|
$10.17 | ||
|
Unavailable |
|||
