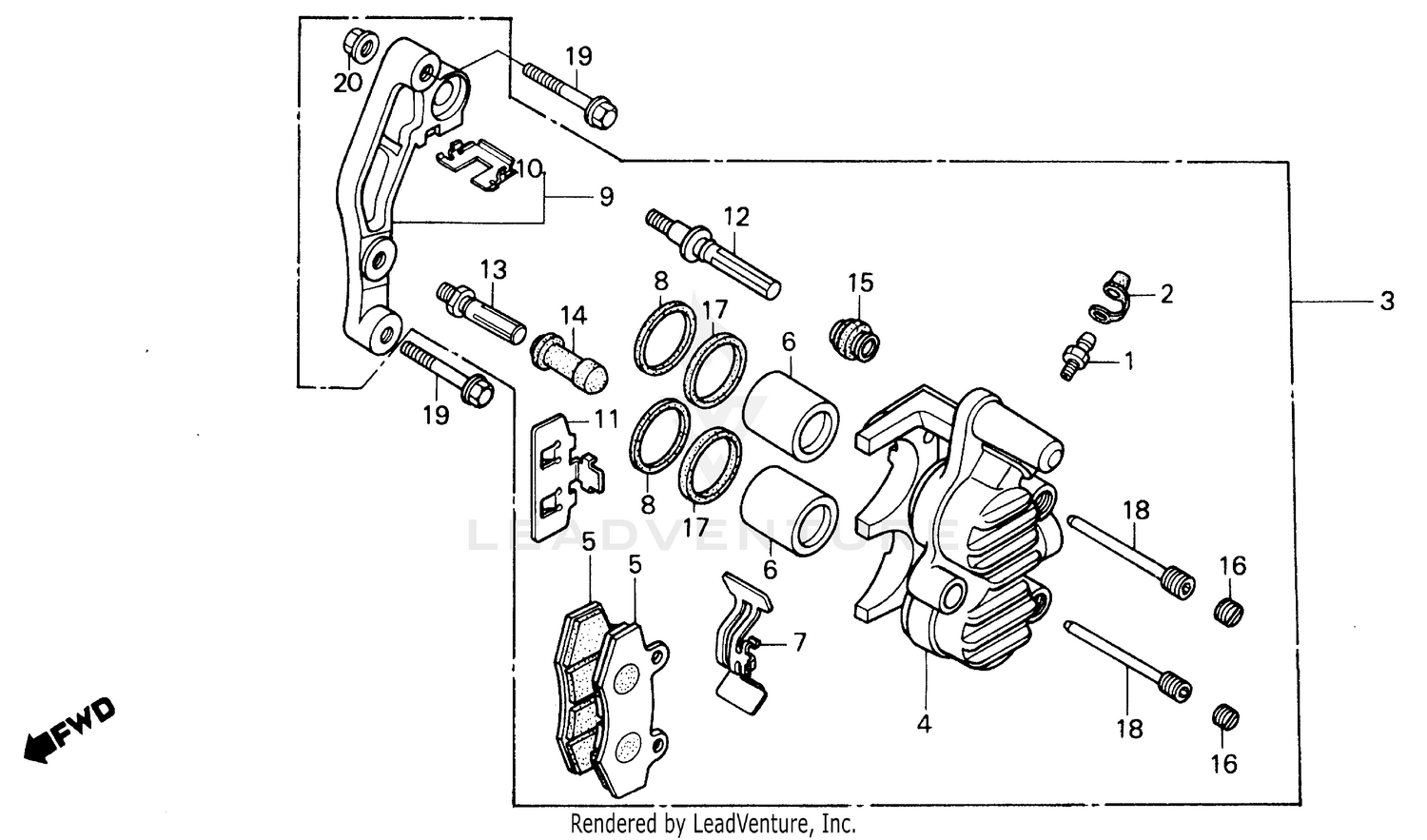

1983 Honda XL600R FRONT BRAKE CALIPER OEM Parts Diagram
Accessory
+
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Dash & Gauges
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Other
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#NI
BRAKE PAD KIT
451A0-MG3-670
|
$49.32 | ||
|
Available to order. Add to View Price |
|||
|
#1
SCREW, BLEEDER
43352-568-003
|
$9.42 | ||
|
Available to order. Add to View Price |
|||
|
#2
CAP, BLEEDER
43353-461-771
|
$5.98 | ||
|
Available to order. Add to View Price |
|||
|
#3
CALIPER ASSY., L. FR. (NOT AVAILABLE)
45100-MG3-006
Superseded by 45100-MG3-016
|
$183.89 | ||
|
Unavailable |
|||
|
#4
CALIPER, L. FR.
45101-MG3-006
|
$165.05 | ||
|
Unavailable |
|||
|
#5
PAD (SEE KIT P/N--END OF BLOCK) (NOT AVAILABLE)
45105-MG3-006
|
$25.50 | ||
|
Unavailable |
|||
|
#6
PISTON
45107-MG3-006
Superseded by 45107-MG3-016
|
$47.15 | ||
|
Available to order. Add to View Price |
|||
|
#6
PISTON
45107-MG3-016
|
$47.15 | ||
|
Unavailable |
|||
|
#7
SPRING, PAD
45108-GE2-006
|
$6.91 | ||
|
Available to order. Add to View Price |
|||
|
#8
DUST SEAL
45109-GE2-006
|
$6.29 | ||
|
Available to order. Add to View Price |
|||
|
#9
BRACKET, L. FR.
45110-MG3-006
|
$135.72 | ||
|
Available to order. Add to View Price |
|||
|
#10
RETAINER
45112-MG3-006
|
$8.60 | ||
|
Available to order. Add to View Price |
|||
|
#11
SHIM (NOT AVAILABLE)
45116-MG3-006
|
$6.89 | ||
|
Available to order. Add to View Price |
|||
|
#12
BOLT A, PIN
45131-MG3-006
|
$14.89 | ||
|
Unavailable |
|||
|
#13
PIN, BOLT
45131-166-016
|
$9.04 | ||
|
Available to order. Add to View Price |
|||
|
#14
BUSH, PIN
45132-166-016
|
$6.47 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOOT B
45133-MA3-006
|
$6.47 | ||
|
Available to order. Add to View Price |
|||
|
#16
PLUG, PIN
45203-MG3-006
Superseded by 45203-MG3-016
|
$6.05 | ||
|
Available to order. Add to View Price |
|||
|
#16
PLUG, PIN
45203-MG3-016
|
$6.05 | ||
|
Unavailable |
|||
|
#17
SEAL, PISTON
45209-GE2-006
|
$8.18 | ||
|
Available to order. Add to View Price |
|||
|
#18
PIN, HANGER
45215-GE2-006
Superseded by 45215-GE2-016
|
$13.15 | ||
|
Available to order. Add to View Price |
|||
|
#18
PIN, HANGER
45215-GE2-016
|
$13.15 | ||
|
Unavailable |
|||
|
#19
BOLT, FLANGE (8X40)
90131-MG3-000
Superseded by 96400-08040-00
|
$2.16 | ||
|
Available to order. Add to View Price |
|||
|
#20
NUT, FLANGE (8MM)
94050-08080
|
$0.87 | ||
|
Available to order. Add to View Price |
|||
