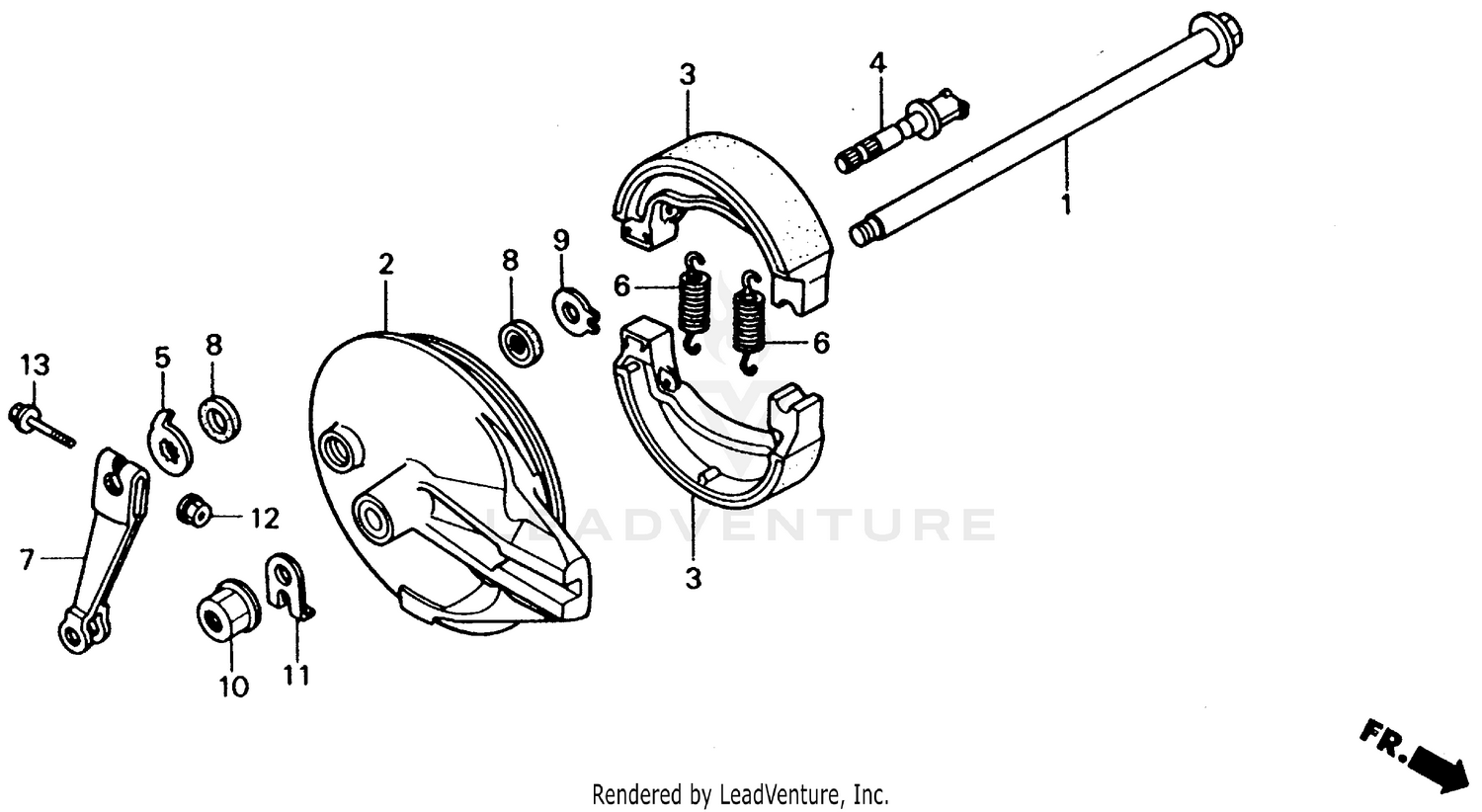

Rear Brake Panel Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#NI
SHOE SET, BRAKE
06430-GBJ-740
|
$46.49 | ||
|
Available to order. Add to View Price |
|||
|
#NI
SHOE SET, BRAKE
06430-429-000
Superseded by 06430-GBJ-740
|
$46.49 | ||
|
Unavailable |
|||
|
#NI
SHOE SET, BRAKE
06430-429-405
Superseded by 06430-GBJ-740
|
$46.49 | ||
|
Unavailable |
|||
|
#NI
SHOE SET, BRAKE
431A2-429-010
Superseded by 06430-GBJ-740
|
$46.49 | ||
|
Unavailable |
|||
|
#1
AXLE, RR. WHEEL
42301-MM9-000
Superseded by 42301-MS6-621
|
$64.88 | ||
|
Available to order. Add to View Price |
|||
|
#2
PANEL, RR. BRAKE
43100-MM9-000
Superseded by 43100-MN9-670ZB
|
$184.47 | ||
|
Available to order. Add to View Price |
|||
|
#3
SHOE SET, BRAKE
06430-GBJ-740
|
$46.49 | ||
|
Unavailable |
|||
|
#3
SHOE SET, BRAKE
43120-429-010
Superseded by 06430-GBJ-740
|
$46.49 | ||
|
Unavailable |
|||
|
#4
CAM, RR. BRAKE (NOT AVAILABLE)
43141-MC4-000
|
$29.53 | ||
|
Available to order. Add to View Price |
|||
|
#5
INDICATOR, RR. BRAKE (NOT AVAILABLE)
43145-MM9-000
|
$3.79 | ||
|
Unavailable |
|||
|
#6
SPRING, BRAKE SHOE
43151-329-000
|
$3.09 | ||
|
Available to order. Add to View Price |
|||
|
#7
ARM, RR. BRAKE
43410-MM9-000
Superseded by 43410-MS6-620
|
$14.98 | ||
|
Available to order. Add to View Price |
|||
|
#8
DUST SEAL, BRAKE CAM (NOK)
45134-KB7-005
|
$3.51 | ||
|
Available to order. Add to View Price |
|||
|
#9
SEAT, FR. BRAKE CAM (NOT AVAILABLE)
45142-KB7-000
|
$3.86 | ||
|
Available to order. Add to View Price |
|||
|
#10
NUT, FLANGE (16MM)
90305-ME5-003
|
$5.04 | ||
|
Available to order. Add to View Price |
|||
|
#11
WASHER, RR. AXLE (NOT AVAILABLE)
90559-MM9-000
|
$8.66 | ||
|
Available to order. Add to View Price |
|||
|
#12
NUT, FLANGE (6MM)
94050-06000
|
$0.60 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT, FLANGE (6X32)
95701-06032-00
|
$1.85 | ||
|
Available to order. Add to View Price |
|||
