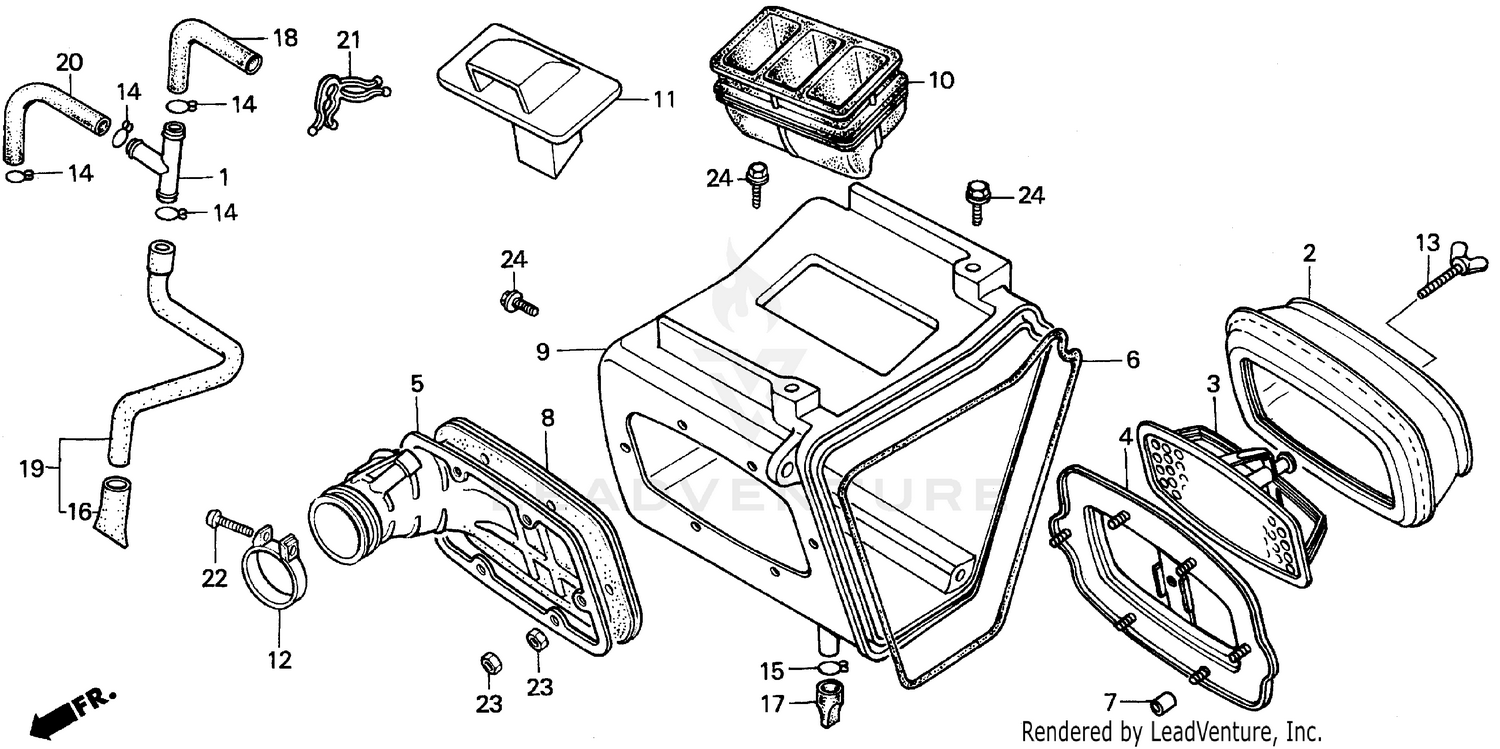

2000 Honda XR 200R AIR CLEANER (1) OEM Parts Diagram
Accessory
+
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Dash & Gauges
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Labels
+
Other
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
JOINT, BREATHER THREE WAY
15772-HA7-670
|
$19.20 | ||
|
Available to order. Add to View Price |
|||
|
#2
ELEMENT, AIR CLEANER
17213-KK0-000
|
$30.09 | ||
|
Available to order. Add to View Price |
|||
|
#3
HOLDER, ELEMENT
17214-KK0-030
|
$83.70 | ||
|
Unavailable |
|||
|
#4
PLATE, ELEMENT SETTING
17216-KK0-000
|
$44.43 | ||
|
Available to order. Add to View Price |
|||
|
#5
PLATE, HOLDER
17217-KK0-000
|
$25.04 | ||
|
Available to order. Add to View Price |
|||
|
#6
SEAL, AIR CLEANER COVER
17219-KK0-000
Superseded by 17222-MN4-405
|
$8.65 | ||
|
Available to order. Add to View Price |
|||
|
#6
SEAL, AIR CLEANER COVER
17222-MN4-405
|
$8.65 | ||
|
Unavailable |
|||
|
#7
COLLAR, CONNECTING TUBE SETTING
17221-KA4-300
|
$2.62 | ||
|
Available to order. Add to View Price |
|||
|
#8
TUBE, AIR CLEANER CONNECTING
17222-KT0-670
|
$54.35 | ||
|
Unavailable |
|||
|
#9
HOUSING, AIR CLEANER
17230-KK0-000
|
$149.51 | ||
|
Available to order. Add to View Price |
|||
|
#10
DUCT, AIR CLEANER IN.
17240-KK0-000
|
$33.04 | ||
|
Available to order. Add to View Price |
|||
|
#11
CAP, IN. DUCT
17241-KT0-770
|
$40.69 | ||
|
Available to order. Add to View Price |
|||
|
#12
BAND, AIR CLEANER CONNECTING TUBE (46)
17255-KF9-900
Superseded by 95018-46250
|
$9.05 | ||
|
Available to order. Add to View Price |
|||
|
#12
BAND, AIR CLEANER CONNECTING TUBE (46)
90652-GHB-660
Superseded by 95018-46250
|
$9.05 | ||
|
Unavailable |
|||
|
#12
BAND, AIR CLEANER CONNECTING TUBE (46)
95018-46250
|
$9.05 | ||
|
Unavailable |
|||
|
#13
BOLT, ELEMENT SETTING
17291-KT0-674
|
$11.16 | ||
|
Unavailable |
|||
|
#14
CLIP A, BREATHER TUBE
17316-MN1-670
|
$2.64 | ||
|
Available to order. Add to View Price |
|||
|
#15
CLIP, BREATHER TUBE
17316-611-000
|
$10.55 | ||
|
Available to order. Add to View Price |
|||
|
#16
TUBE, DRAIN
17358-170-000
|
$4.42 | ||
|
Available to order. Add to View Price |
|||
|
#17
TUBE, DRAIN
17359-KK0-000
|
$7.85 | ||
|
Available to order. Add to View Price |
|||
|
#18
TUBE A, BREATHER
17373-KK0-000
|
$13.96 | ||
|
Available to order. Add to View Price |
|||
|
#19
TUBE B, BREATHER
17374-KT0-830
|
$19.16 | ||
|
Available to order. Add to View Price |
|||
|
#20
TUBE, BREATHER (NOT AVAILABLE)
17561-KA2-000
|
$5.82 | ||
|
Available to order. Add to View Price |
|||
|
#21
CLIP, THROTTLE WIRE (NOT AVAILABLE)
90655-689-671
|
$5.22 | ||
|
Available to order. Add to View Price |
|||
|
#22
SCREW, PAN (4X25)
93500-04025-0G
|
$0.69 | ||
|
Available to order. Add to View Price |
|||
|
#23
NUT, HEX. (5MM)
94002-05070-0S
|
$0.70 | ||
|
Available to order. Add to View Price |
|||
|
#24
BOLT, FLANGE (6X10)
96300-06010-00
|
$1.00 | ||
|
Available to order. Add to View Price |
|||
