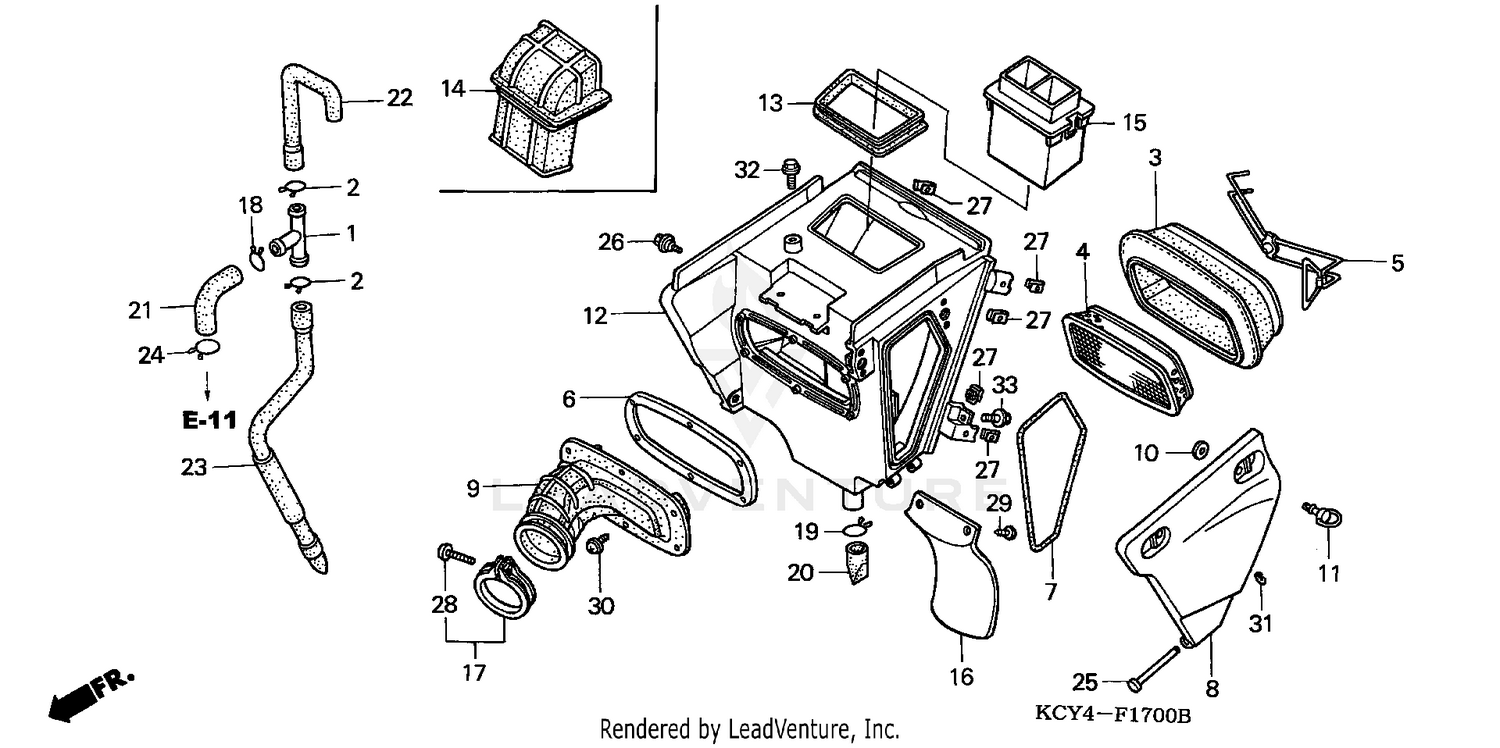

Air Cleaner (a) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
JOINT, BREATHER THREE WAY
15772-KK0-000
|
$13.25 | ||
|
Available to order. Add to View Price |
|||
|
#2
CLIP B, BREATHER TUBE
15772-MN1-670
|
$3.16 | ||
|
Available to order. Add to View Price |
|||
|
#3
ELEMENT, AIR CLEANER
17213-KF0-000
Superseded by 17213-MN1-670
|
$34.12 | ||
|
Available to order. Add to View Price |
|||
|
#3
ELEMENT, AIR CLEANER
17213-MN1-670
|
$34.12 | ||
|
Unavailable |
|||
|
#4
HOLDER, ELEMENT
17214-MN1-670
|
$76.60 | ||
|
Available to order. Add to View Price |
|||
|
#5
SPRING, ELEMENT HOLDING
17216-KCZ-000
|
$21.65 | ||
|
Available to order. Add to View Price |
|||
|
#6
PLATE, HOLDER
17217-KCY-670
|
$8.85 | ||
|
Available to order. Add to View Price |
|||
|
#7
SEAL, AIR CLEANER COVER
17219-KCZ-000
|
$8.57 | ||
|
Available to order. Add to View Price |
|||
|
#8
LID, AIR CLEANER MAINTENANCE *NH1* (BLACK)
17220-KCY-671ZB
|
$25.41 | ||
|
Unavailable |
|||
|
#9
TUBE, AIR CLEANER CONNECTING
17222-KCY-670
|
$59.63 | ||
|
Unavailable |
|||
|
#10
WASHER, AIR CLEANER COVER SETTING
17224-KN5-670
|
$1.48 | ||
|
Available to order. Add to View Price |
|||
|
#11
STUD (6X21)
17225-KN5-670
Superseded by 17225-KN5-671
|
$8.40 | ||
|
Available to order. Add to View Price |
|||
|
#11
STUD (6X21)
17225-KN5-671
|
$8.40 | ||
|
Unavailable |
|||
|
#12
HOUSING, AIR CLEANER *NH1* (BLACK) (NOT AVAILABLE)
17230-KCY-671ZB
|
$114.07 | ||
|
Available to order. Add to View Price |
|||
|
#14
DUCT, IN.
17240-KCZ-000
Superseded by 17240-KCZ-010
|
$25.02 | ||
|
Available to order. Add to View Price |
|||
|
#14
DUCT, IN.
17240-KCZ-010
|
$25.02 | ||
|
Unavailable |
|||
|
#16
SPLASH GUARD, AIR CLEANER
17245-KCY-670
|
$29.28 | ||
|
Available to order. Add to View Price |
|||
|
#17
BAND, AIR CLEANER CONNECTING TUBE
17255-KCY-670
|
$7.85 | ||
|
Unavailable |
|||
|
#18
CLIP A, BREATHER TUBE
17316-MN1-670
|
$2.68 | ||
|
Available to order. Add to View Price |
|||
|
#18
CLIP, SUB-TANK HOSE
17724-MN1-670
|
$3.78 | ||
|
Available to order. Add to View Price |
|||
|
#19
CLIP, BREATHER TUBE
17316-611-000
|
$10.71 | ||
|
Available to order. Add to View Price |
|||
|
#20
TUBE, DRAIN
17359-KK0-000
|
$7.97 | ||
|
Available to order. Add to View Price |
|||
|
#21
TUBE A, BREATHER
17371-KN5-670
|
$7.15 | ||
|
Available to order. Add to View Price |
|||
|
#22
TUBE B, BREATHER
17372-KZ1-670
|
$11.05 | ||
|
Available to order. Add to View Price |
|||
|
#23
TUBE C, BREATHER
17373-KCY-670
|
$18.33 | ||
|
Available to order. Add to View Price |
|||
|
#24
CLIP A, BREATHER TUBE
17316-MN1-670
|
$2.68 | ||
|
Unavailable |
|||
|
#24
CLIP, SUB-TANK HOSE
17724-MN1-670
|
$3.78 | ||
|
Unavailable |
|||
|
#25
PIN, VISOR HINGE
64308-GG2-000
|
$8.82 | ||
|
Available to order. Add to View Price |
|||
|
#26
BOLT, FLANGE (6MM)
90116-ME9-000
|
$4.02 | ||
|
Available to order. Add to View Price |
|||
|
#27
NUT, CLIP (6MM)
90311-MT3-000
|
$6.94 | ||
|
Available to order. Add to View Price |
|||
|
#28
SCREW, PAN (4X25)
93500-04025-0G
|
$0.70 | ||
|
Available to order. Add to View Price |
|||
|
#29
SCREW, TAPPING (5X16)
93903-25310
|
$0.70 | ||
|
Available to order. Add to View Price |
|||
|
#30
SCREW, TAPPING (5X10) (PO)
93913-25180
|
$1.00 | ||
|
Available to order. Add to View Price |
|||
|
#31
E-RING (3MM)
94540-03010
|
$1.20 | ||
|
Available to order. Add to View Price |
|||
|
#32
BOLT, FLANGE (6X12)
96300-06012-00
|
$1.02 | ||
|
Available to order. Add to View Price |
|||
|
#33
BOLT, FLANGE (6X16)
96300-06016-00
|
$1.02 | ||
|
Available to order. Add to View Price |
|||
