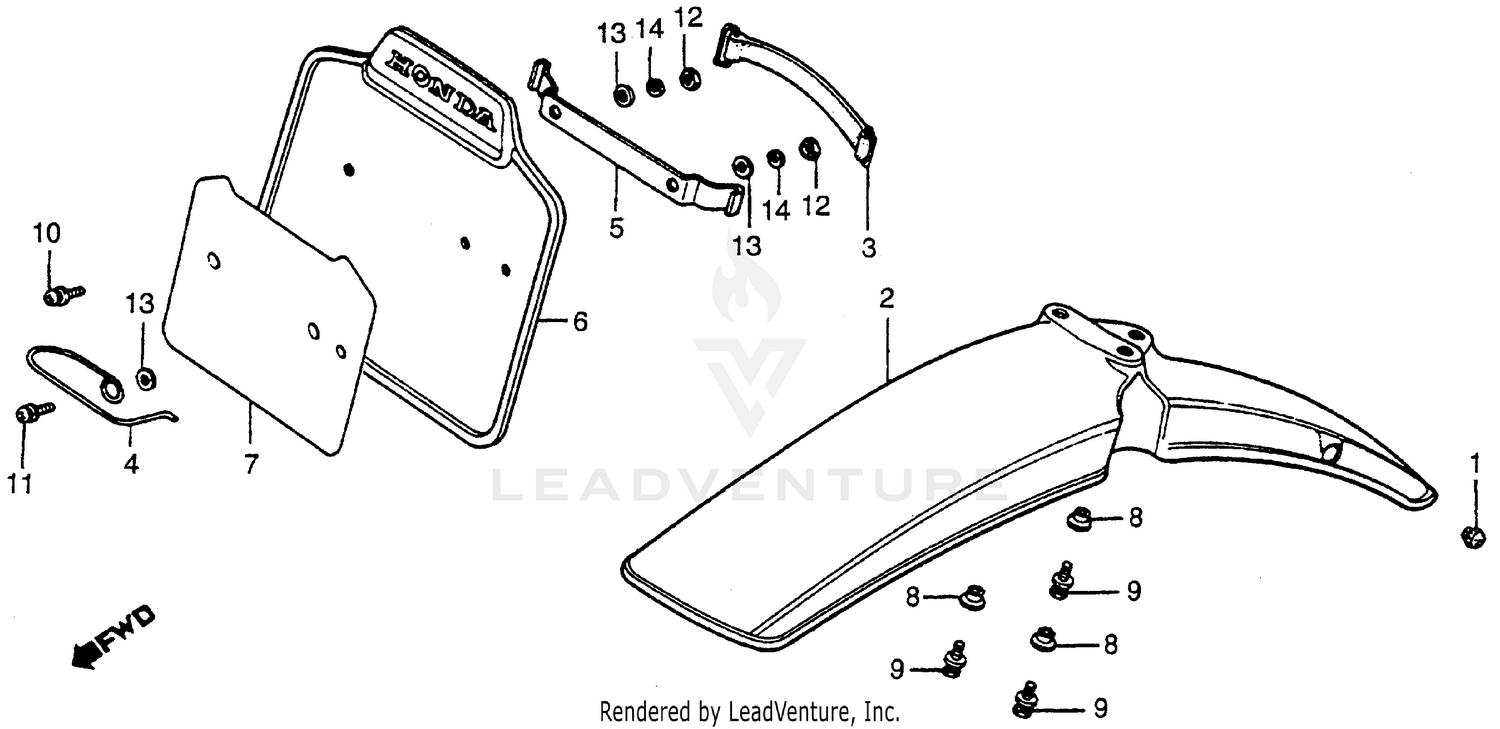

1980 Honda XR80 FRONT FENDER + NUMBER PLATE 79-82 OEM Parts Diagram
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Drive & Transmission
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Other
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
PLUG
50318-041-600
|
$2.38 | ||
|
Available to order. Add to View Price |
|||
|
#2
FENDER, FR. *R23* (TAHITIAN RED) (NOT AVAILABLE)
61100-152-670ZB
|
$94.17 | ||
|
Available to order. Add to View Price |
|||
|
#3
BAND, FR. NUMBER PLATE (NOT AVAILABLE)
61133-131-000
|
$18.16 | ||
|
Unavailable |
|||
|
#4
GUIDE, CABLE (NOT AVAILABLE)
61138-357-000
|
$8.37 | ||
|
Unavailable |
|||
|
#5
STAY, FR. NUMBER PLATE (NOT AVAILABLE)
64111-176-000
|
$12.62 | ||
|
Available to order. Add to View Price |
|||
|
#6
PLATE, FR. NUMBER (WOL) (NOT AVAILABLE)
64113-176-000
|
$45.12 | ||
|
Available to order. Add to View Price |
|||
|
#8
WASHER, CHAIN CASE SETTING
90522-028-000
|
$3.09 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT-WASHER (6X12)
93411-06012-08
|
$1.62 | ||
|
Available to order. Add to View Price |
|||
|
#9
BOLT-WASHER (6X12)
93481-06012-08
Superseded by 93411-06012-08
|
$1.62 | ||
|
Unavailable |
|||
|
#10
SCREW-WASHER (5X12)
93891-05012-00
|
$1.13 | ||
|
Available to order. Add to View Price |
|||
|
#10
SCREW-WASHER (5X12)
93891-05012-10
Superseded by 93891-05012-00
|
$1.13 | ||
|
Unavailable |
|||
|
#11
SCREW-WASHER (5X16)
93891-05016-00
|
$1.08 | ||
|
Available to order. Add to View Price |
|||
|
#11
SCREW-WASHER (5X16)
93891-05016-10
Superseded by 93891-05016-00
|
$1.08 | ||
|
Unavailable |
|||
|
#12
NUT, HEX. (5MM)
94002-05000-0S
|
$1.02 | ||
|
Available to order. Add to View Price |
|||
|
#13
WASHER, PLAIN (5MM)
94101-05000
|
$0.97 | ||
|
Available to order. Add to View Price |
|||
|
#14
WASHER, SPRING (5MM)
94111-05000
|
$1.12 | ||
|
Available to order. Add to View Price |
|||
