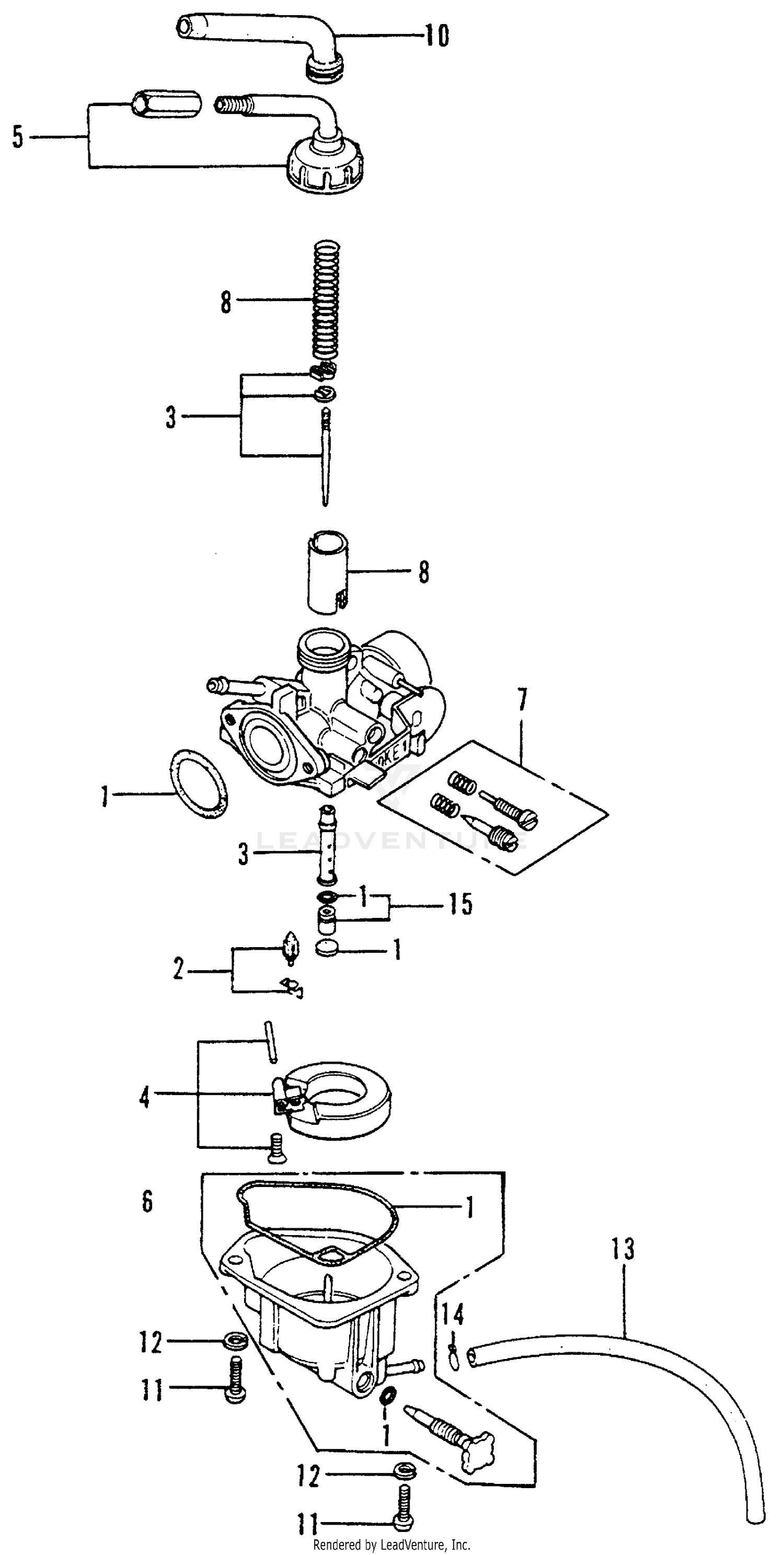

Carburetor 76-78 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
GASKET SET, CABBURETOR
16010-081-004
Superseded by 16010-143-305
|
$24.42 | ||
|
Available to order. Add to View Price |
|||
|
#1
GASKET SET, CABBURETOR
16010-143-305
|
$24.42 | ||
|
Unavailable |
|||
|
#2
VALVE SET, FLOAT
16011-143-620
Superseded by 16011-881-741
|
$28.38 | ||
|
Available to order. Add to View Price |
|||
|
#2
VALVE SET, FLOAT
16011-147-004
Superseded by 16011-881-741
|
$28.38 | ||
|
Unavailable |
|||
|
#2
VALVE SET, FLOAT
16011-147-305
Superseded by 16011-881-741
|
$28.38 | ||
|
Unavailable |
|||
|
#2
VALVE SET, FLOAT
16011-881-741
|
$28.38 | ||
|
Unavailable |
|||
|
#3
NEEDLE SET, JET (NOT AVAILABLE)
16012-130-640
|
$38.37 | ||
|
Available to order. Add to View Price |
|||
|
#4
FLOAT SET
16013-099-691
|
$33.78 | ||
|
Available to order. Add to View Price |
|||
|
#4
FLOAT SET
16013-143-620
Superseded by 16013-099-691
|
$33.78 | ||
|
Unavailable |
|||
|
#5
TOP SET
16014-GB1-911
Superseded by 16014-GB1-912
|
$33.89 | ||
|
Available to order. Add to View Price |
|||
|
#5
TOP SET
16014-GB1-912
|
$33.89 | ||
|
Unavailable |
|||
|
#5
TOP SET
16014-130-640
Superseded by 16014-GB1-912
|
$33.89 | ||
|
Unavailable |
|||
|
#6
CHAMBER SET, FLOAT (NOT AVAILABLE)
16015-130-640
|
$134.80 | ||
|
Available to order. Add to View Price |
|||
|
#7
SCREW SET
16016-143-620
|
$27.42 | ||
|
Available to order. Add to View Price |
|||
|
#8
VALVE SET, THROTTLE
16022-HB2-003
|
$29.53 | ||
|
Available to order. Add to View Price |
|||
|
#8
VALVE SET, THROTTLE
16022-081-004
Superseded by 16022-HB2-003
|
$29.53 | ||
|
Unavailable |
|||
|
#9
CARBURETOR ASSY.
16100-130-641
Superseded by 16100-130-642
|
$176.46 | ||
|
Available to order. Add to View Price |
|||
|
#9
CARBURETOR ASSY.
16100-130-642
|
$176.46 | ||
|
Unavailable |
|||
|
#10
CAP, CABLE SEALING
16118-121-014
|
$7.32 | ||
|
Available to order. Add to View Price |
|||
|
#11
SCREW, PAN (4X12)
93500-04012-0A
|
$0.80 | ||
|
Available to order. Add to View Price |
|||
|
#12
WASHER, SPRING (4MM)
94111-04000
|
$1.05 | ||
|
Available to order. Add to View Price |
|||
|
#13
BULK HOSE, FUEL (3.5X3000) (3.5X180)
95001-35003-60M
|
$23.82 | ||
|
Available to order. Add to View Price |
|||
|
#14
CLIP, TUBE (B7)
95002-02070
|
$1.77 | ||
|
Available to order. Add to View Price |
|||
|
#15
JET SET, MAIN (#58) (NOT AVAILABLE)
99201-081-0580
|
$15.10 | ||
|
Available to order. Add to View Price |
|||
