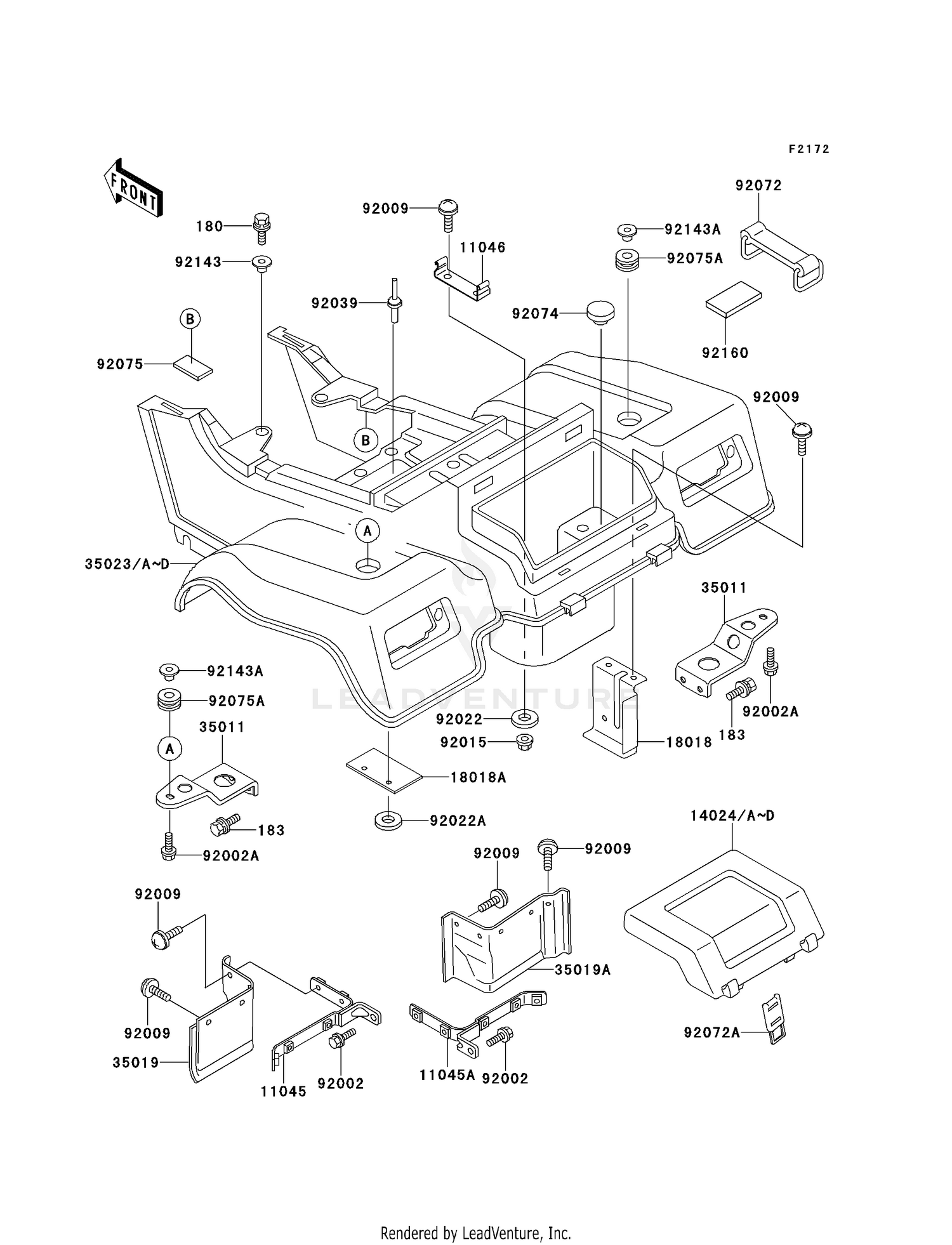

Rear Fender(s) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#180
BOLT-UPSET-WS
180D0618
Superseded by 180AA0618
|
$0.88 | ||
|
Available to order. Add to View Price |
|||
|
#183
BOLT-UPSET-WS-SMALL
183J0814
Superseded by 183BB0814
|
$4.91 | ||
|
Available to order. Add to View Price |
|||
|
#11045
BRACKET,REAR FLAP,LH
11045-1731
|
$27.26 | ||
|
Available to order. Add to View Price |
|||
|
#11045A
BRACKET,REAR FLAP,RH
11045-1732
|
$27.26 | ||
|
Available to order. Add to View Price |
|||
|
#11046
BRACKET,TOOL BAND
11046-1451
|
$8.09 | ||
|
Available to order. Add to View Price |
|||
|
#14024A
COVER,R.FENDER,RR GRY
14024-1477-RF
|
$25.92 | ||
|
Available to order. Add to View Price |
|||
|
#14024C
COVER,REAR FENDER,BLA
14024-1477-6D
|
$29.52 | ||
|
Available to order. Add to View Price |
|||
|
#18018
PLATE-HEAT GUARD
18018-1075
|
$26.02 | ||
|
Available to order. Add to View Price |
|||
|
#18018A
PLATE-HEAT GUARD
18018-1079
|
$9.04 | ||
|
Available to order. Add to View Price |
|||
|
#35011
STAY,REAR FENDER
35011-1363
|
$27.51 | ||
|
Available to order. Add to View Price |
|||
|
#35019
FLAP,RR,LH
35019-1253
|
$23.58 | ||
|
Available to order. Add to View Price |
|||
|
#35019A
FLAP,RR,RH
35019-1254
|
$23.58 | ||
|
Available to order. Add to View Price |
|||
|
#35023A
FENDER-REAR,M.B.GRAY
35023-1196-RF
Superseded by 35023-1594-RF
|
$152.87 | ||
|
Available to order. Add to View Price |
|||
|
#35023C
FENDER-REAR,BLACK
35023-1196-6D
Superseded by 35023-1594-6D
|
$134.15 | ||
|
Available to order. Add to View Price |
|||
|
#92002
BOLT,6X14
92002-1351
|
$4.17 | ||
|
Available to order. Add to View Price |
|||
|
#92002A
BOLT,FLANGED,8X25
92002-1591
|
$4.84 | ||
|
Available to order. Add to View Price |
|||
|
#92009
SCREW,6X14
92009-1288
Superseded by 92009-1662
|
$3.80 | ||
|
Available to order. Add to View Price |
|||
|
#92015
NUT,FLANGED,6MM,BLACK
92015-1233
|
$5.34 | ||
|
Available to order. Add to View Price |
|||
|
#92022
WASHER,6.5X20X1.6
92022-1804
Superseded by 92200-0283
|
$1.36 | ||
|
Available to order. Add to View Price |
|||
|
#92022A
WASHER
92022-4017
|
$0.80 | ||
|
Available to order. Add to View Price |
|||
|
#92039
RIVET
92039-4006
|
$1.33 | ||
|
Available to order. Add to View Price |
|||
|
#92072
BAND,RESERVE TANK
92072-1085
|
$17.50 | ||
|
Available to order. Add to View Price |
|||
|
#92072A
BAND
92072-1227
|
$7.04 | ||
|
Available to order. Add to View Price |
|||
|
#92074
RUBBER PLUG
92074-038
|
$6.97 | ||
|
Available to order. Add to View Price |
|||
|
#92075
DAMPER
92075-1830
Superseded by 92160-1102
|
$3.35 | ||
|
Available to order. Add to View Price |
|||
|
#92075A
DAMPER
92075-1898
|
$4.54 | ||
|
Available to order. Add to View Price |
|||
|
#92143
COLLAR,L=6.5
92143-1025
|
$6.02 | ||
|
Available to order. Add to View Price |
|||
|
#92143A
COLLAR,FLANGED,8.8X10.6
92143-1069
Superseded by 92027-1653
|
$9.92 | ||
|
Available to order. Add to View Price |
|||
|
#92160
DAMPER-TOOL KIT
92160-1076
|
$7.97 | ||
|
Available to order. Add to View Price |
|||
