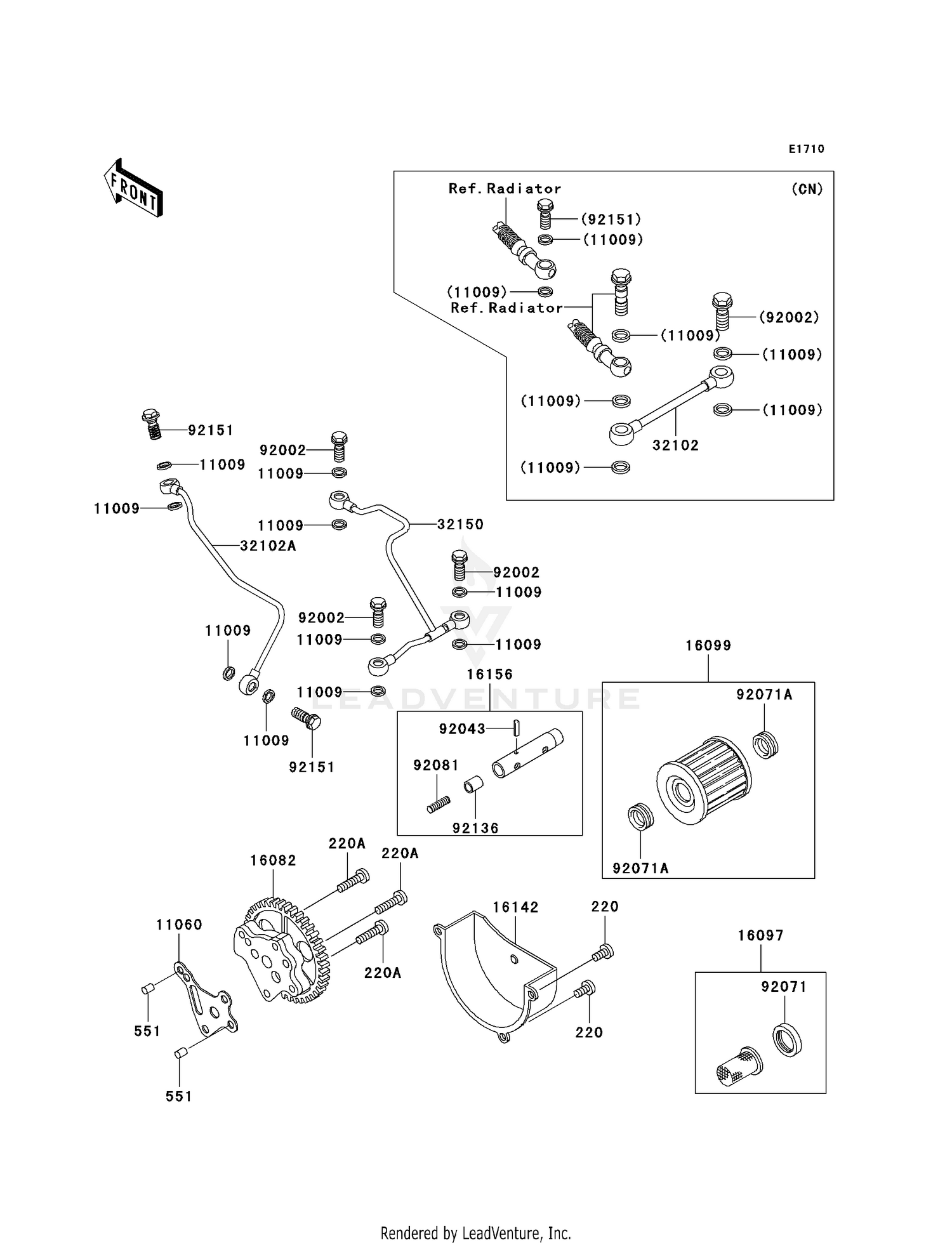

Oil Pump/oil Filter Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#220
SCREW-PAN-CROS,6X12
220B0612
Superseded by 220AA0612
|
$1.16 | ||
|
Available to order. Add to View Price |
|||
|
#220A
SCREW-PAN-CROS,6X25
220B0625
Superseded by 220AA0625
|
$2.70 | ||
|
Available to order. Add to View Price |
|||
|
#551
PIN-DOWEL,6X8
551A0608
|
$3.80 | ||
|
Available to order. Add to View Price |
|||
|
#11009
GASKET,10X14.5X1.5
11009-1105
|
$6.30 | ||
|
Available to order. Add to View Price |
|||
|
#11009
GASKET,10X14.5X1.5
11009-1105
|
$6.30 | ||
|
Unavailable |
|||
|
#11060
GASKET,OIL PUMP
11060-1719
|
$4.06 | ||
|
Available to order. Add to View Price |
|||
|
#16082
PUMP-ASSY-OIL
16082-1068
|
$173.15 | ||
|
Available to order. Add to View Price |
|||
|
#16097
FILTER-ASSY-OIL
16097-1001
|
$11.80 | ||
|
Available to order. Add to View Price |
|||
|
#16099
ELEMENT-OIL FILTER
16099-004
|
$8.94 | ||
|
Available to order. Add to View Price |
|||
|
#16142
COVER-PUMP
16142-1064
|
$16.92 | ||
|
Available to order. Add to View Price |
|||
|
#16156
PISTON-ASSY,VALVE,BY-PASS
16156-002
|
$22.42 | ||
|
Available to order. Add to View Price |
|||
|
#32102
PIPE
32102-1966
|
$41.71 | ||
|
Available to order. Add to View Price |
|||
|
#32102A
PIPE
32102-1967
|
$57.01 | ||
|
Available to order. Add to View Price |
|||
|
#32150
PIPE
32150-1153
|
$103.97 | ||
|
Available to order. Add to View Price |
|||
|
#92002
BOLT,OIL,L=23
92002-1888
Superseded by 92153-0627
|
$5.31 | ||
|
Available to order. Add to View Price |
|||
|
#92043
PIN,SPRING,2.2X13.5
92043-123
|
$4.54 | ||
|
Available to order. Add to View Price |
|||
|
#92071
GROMMET,OIL STRAINER
92071-100
|
$5.29 | ||
|
Available to order. Add to View Price |
|||
|
#92071A
GROMMET,OIL FILTER
92071-101
|
$5.29 | ||
|
Available to order. Add to View Price |
|||
|
#92081
SPRING,PISTON
92081-043
|
$5.29 | ||
|
Available to order. Add to View Price |
|||
|
#92136
VALVE
92136-002
|
$4.50 | ||
|
Available to order. Add to View Price |
|||
|
#92151
BOLT,BANJO,10X23
92151-1349
|
$5.21 | ||
|
Available to order. Add to View Price |
|||
|
#92151
BOLT,BANJO,10X23
92151-1349
|
$5.21 | ||
|
Unavailable |
|||
