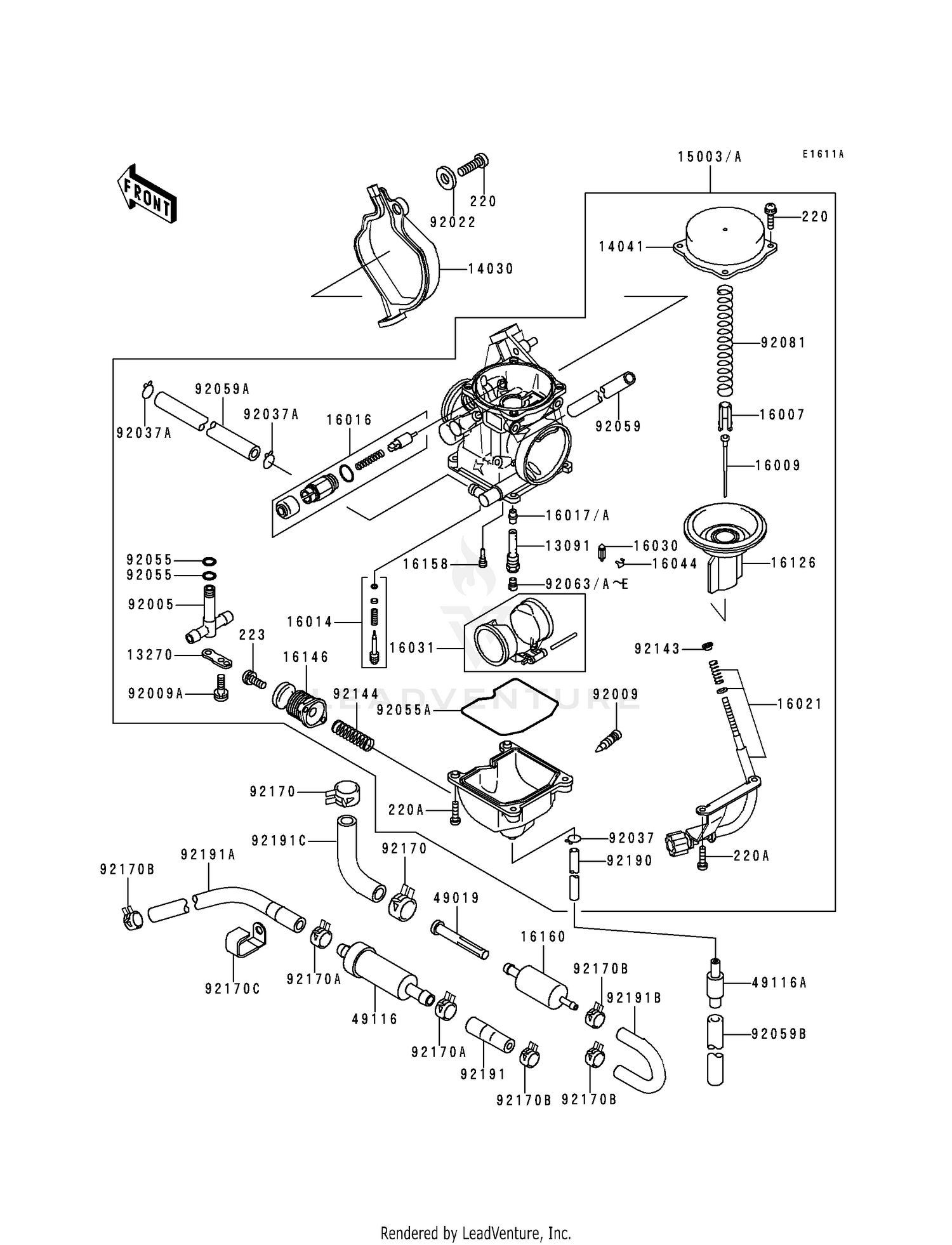

Carburetor (lf400ae532918-) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#13091
HOLDER,NEEDLE JET
13091-1259
|
$32.11 | ||
|
Available to order. Add to View Price |
|||
|
#13270
PLATE,JOINT STAY
13270-1063
|
$27.95 | ||
|
Available to order. Add to View Price |
|||
|
#14030
COVER-CARBURETOR
14030-1054
|
$14.33 | ||
|
Available to order. Add to View Price |
|||
|
#14041
TOP-CHAMBER
14041-1077
Superseded by 14041-1076
|
$92.23 | ||
|
Available to order. Add to View Price |
|||
|
#15003
CARBURETOR-ASSY
15003-1417
|
$557.19 | ||
|
Available to order. Add to View Price |
|||
|
#15003A
CARBURETOR-ASSY
15003-1418
|
$557.19 | ||
|
Available to order. Add to View Price |
|||
|
#16007
SEAT-SPRING
16007-1120
|
$25.30 | ||
|
Available to order. Add to View Price |
|||
|
#16009
NEEDLE-JET
16009-1870
|
$31.98 | ||
|
Available to order. Add to View Price |
|||
|
#16014
SCREW-PILOT AIR
16014-1081
|
$23.70 | ||
|
Available to order. Add to View Price |
|||
|
#16016
PLUNGER
16016-1101
|
$56.24 | ||
|
Available to order. Add to View Price |
|||
|
#16017
JET-NEEDLE
16017-1270
|
$47.22 | ||
|
Available to order. Add to View Price |
|||
|
#16017A
JET-NEEDLE
16017-1286
|
$49.49 | ||
|
Available to order. Add to View Price |
|||
|
#16021
SCREW-THROTTLE STOP
16021-1196
|
$124.85 | ||
|
Available to order. Add to View Price |
|||
|
#16030
VALVE-FLOAT
16030-1007
|
$46.13 | ||
|
Available to order. Add to View Price |
|||
|
#16031
FLOAT
16031-1077
|
$51.51 | ||
|
Available to order. Add to View Price |
|||
|
#16044
CLAMP,FLOAT VALVE
16044-007
|
$7.64 | ||
|
Available to order. Add to View Price |
|||
|
#16126
VALVE,VACUUM
16126-1199
|
$191.89 | ||
|
Available to order. Add to View Price |
|||
|
#16146
COVER-ASSY,PUMP
16146-1129
|
$33.52 | ||
|
Available to order. Add to View Price |
|||
|
#16158
JET-SLOW,#42
16158-1053
|
$25.70 | ||
|
Available to order. Add to View Price |
|||
|
#16160
BODY
16160-1151
Superseded by 16160-1359
|
$9.10 | ||
|
Available to order. Add to View Price |
|||
|
#49019
FILTER-WATER,STRAINER
49019-1068
|
$4.97 | ||
|
Available to order. Add to View Price |
|||
|
#49116
VALVE ASSY
49116-1081
|
$107.87 | ||
|
Available to order. Add to View Price |
|||
|
#49116A
VALVE-ASSY
49116-1126
|
$20.03 | ||
|
Available to order. Add to View Price |
|||
|
#92005
FITTING
92005-1235
|
$11.46 | ||
|
Available to order. Add to View Price |
|||
|
#92009
SCREW,DRAIN,6X0.75
92009-1551
|
$9.56 | ||
|
Available to order. Add to View Price |
|||
|
#92009A
SCREW
92009-1713
|
$3.74 | ||
|
Available to order. Add to View Price |
|||
|
#92022
WASHER,5.2X13X1
92022-1380
|
$4.17 | ||
|
Available to order. Add to View Price |
|||
|
#92037
CLAMP
92037-1201
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
|
#92037A
CLAMP,TUBE
92037-1531
|
$5.34 | ||
|
Available to order. Add to View Price |
|||
|
#92055
RING-O,4.5X1.5
92055-1427
|
$6.14 | ||
|
Available to order. Add to View Price |
|||
|
#92055A
RING-O,FLOAT CHAMBER
92055-1518
|
$23.56 | ||
|
Available to order. Add to View Price |
|||
|
#92059
TUBE,6.5X11.5X150
92059-1463
|
$33.72 | ||
|
Available to order. Add to View Price |
|||
|
#92059A
TUBE,6.5X9.5X430
92059-1727
|
$29.37 | ||
|
Available to order. Add to View Price |
|||
|
#92059B
TUBE,7X10X100
92059-1736
|
$4.32 | ||
|
Available to order. Add to View Price |
|||
|
#92063
MAIN JET,2ND,#85
92063-1023
|
$15.20 | ||
|
Available to order. Add to View Price |
|||
|
#220
SCREW-PAN-CROS,4X8
220B0408
Superseded by 220AA0408
|
$0.67 | ||
|
Available to order. Add to View Price |
|||
|
#220A
SCREW-PAN-CROS
220D0414
Superseded by 220AA0414
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
|
#223
SCREW-PAN-WS-CROS
223C0412
Superseded by 223AB0412
|
$4.18 | ||
|
Available to order. Add to View Price |
|||
|
#92063A
JET-MAIN,2ND,#125
92063-1069
|
$14.26 | ||
|
Available to order. Add to View Price |
|||
|
#92063B
JET-MAIN,#118
92063-1071
|
$14.26 | ||
|
Available to order. Add to View Price |
|||
|
#92063C
JET-MAIN,#120
92063-1072
|
$14.26 | ||
|
Available to order. Add to View Price |
|||
|
#92063D
JET-MAIN,2ND,#122
92063-1073
|
$14.26 | ||
|
Available to order. Add to View Price |
|||
|
#92063E
JET-MAIN,#115
92063-1118
|
$14.26 | ||
|
Available to order. Add to View Price |
|||
|
#92081
SPRING,VACUUM VALVE
92081-1775
Superseded by 92081-1912
|
$24.89 | ||
|
Available to order. Add to View Price |
|||
|
#92143
COLLAR
92143-1589
|
$3.98 | ||
|
Available to order. Add to View Price |
|||
|
#92144
SPRING,PUMP
92144-1672
|
$10.29 | ||
|
Available to order. Add to View Price |
|||
|
#92170
CLAMP
92170-1278
Superseded by 92173-2458
|
$10.29 | ||
|
Available to order. Add to View Price |
|||
|
#92170A
CLAMP
92170-1492
|
$4.84 | ||
|
Available to order. Add to View Price |
|||
|
#92170B
CLAMP
92170-1493
|
$4.84 | ||
|
Available to order. Add to View Price |
|||
|
#92170C
CLAMP
92170-1863
|
$23.98 | ||
|
Available to order. Add to View Price |
|||
|
#92190
TUBE,4.5X8X330
92190-1557
|
$14.92 | ||
|
Available to order. Add to View Price |
|||
|
#92191
TUBE
92191-1223
Superseded by 92191-1427
|
$3.00 | ||
|
Available to order. Add to View Price |
|||
|
#92191A
TUBE
92191-1224
Superseded by 92191-1429
|
$12.11 | ||
|
Available to order. Add to View Price |
|||
|
#92191B
TUBE
92191-1248
Superseded by 92191-1428
|
$12.11 | ||
|
Available to order. Add to View Price |
|||
|
#92191C
TUBE
92191-1249
Superseded by 92191-1430
|
$5.85 | ||
|
Available to order. Add to View Price |
|||
