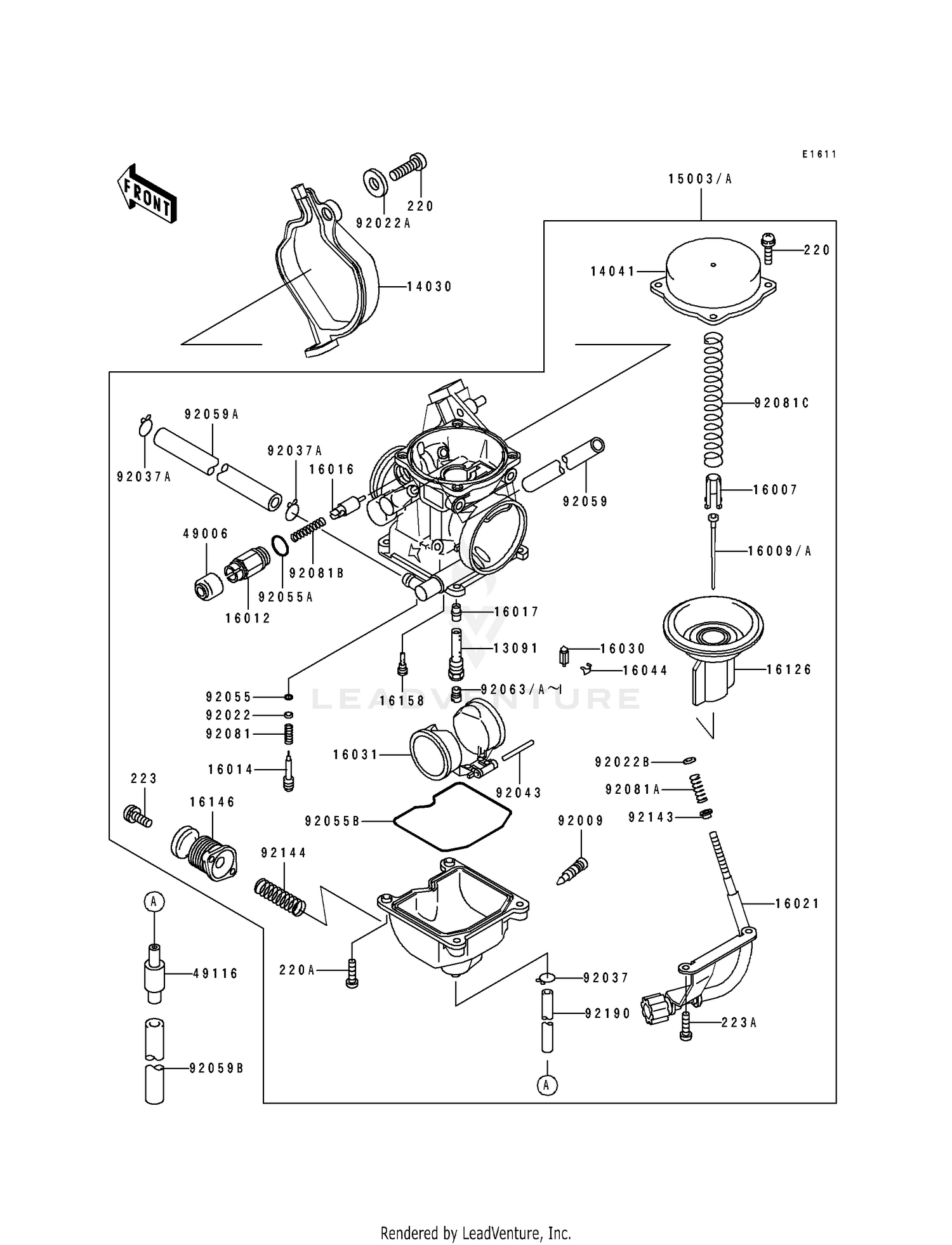

Carburetor Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#13091
HOLDER,NEEDLE JET
13091-1259
|
$32.11 | ||
|
Available to order. Add to View Price |
|||
|
#14030
COVER-CARBURETOR
14030-1054
|
$14.33 | ||
|
Available to order. Add to View Price |
|||
|
#14041
TOP-CHAMBER
14041-1077
Superseded by 14041-1076
|
$92.23 | ||
|
Available to order. Add to View Price |
|||
|
#15003A
CARBURETOR-ASSY
15003-1123
|
$564.75 | ||
|
Available to order. Add to View Price |
|||
|
#16007
SEAT-SPRING
16007-1120
|
$25.30 | ||
|
Available to order. Add to View Price |
|||
|
#16009A
NEEDLE-JET,N74K
16009-1829
|
$30.54 | ||
|
Available to order. Add to View Price |
|||
|
#16012
CAP-STARTER PLUNGER
16012-1055
|
$26.50 | ||
|
Available to order. Add to View Price |
|||
|
#16014
SCREW-PILOT AIR
16014-1054
|
$23.70 | ||
|
Available to order. Add to View Price |
|||
|
#16016
PLUNGER,STARTER
16016-1065
|
$56.24 | ||
|
Available to order. Add to View Price |
|||
|
#16017
JET-NEEDLE
16017-1270
|
$47.22 | ||
|
Available to order. Add to View Price |
|||
|
#16021
SCREW-THROTTLE STOP
16021-1154
|
$120.55 | ||
|
Available to order. Add to View Price |
|||
|
#16030
VALVE-FLOAT
16030-1007
|
$46.13 | ||
|
Available to order. Add to View Price |
|||
|
#16031
FLOAT
16031-1056
|
$51.51 | ||
|
Available to order. Add to View Price |
|||
|
#16044
CLAMP,FLOAT VALVE
16044-007
|
$7.64 | ||
|
Available to order. Add to View Price |
|||
|
#16126
VALVE,VACUUM
16126-1199
|
$191.89 | ||
|
Available to order. Add to View Price |
|||
|
#16146
COVER-ASSY,PUMP
16146-1129
|
$33.52 | ||
|
Available to order. Add to View Price |
|||
|
#16158
JET-SLOW,#42
16158-1053
|
$25.70 | ||
|
Available to order. Add to View Price |
|||
|
#49006
BOOT,STARTER PLUNGER
49006-1165
|
$9.65 | ||
|
Available to order. Add to View Price |
|||
|
#49116
VALVE-ASSY
49116-1126
|
$20.03 | ||
|
Available to order. Add to View Price |
|||
|
#92009
SCREW,DRAIN,6X0.75
92009-1551
|
$9.56 | ||
|
Available to order. Add to View Price |
|||
|
#92022
WASHER,PLAIN
92022-1003
|
$4.17 | ||
|
Available to order. Add to View Price |
|||
|
#92022A
WASHER,5.2X13X1
92022-1380
|
$4.17 | ||
|
Available to order. Add to View Price |
|||
|
#92022B
WASHER,PLAIN,STOP SPRING
92022-1480
|
$4.84 | ||
|
Available to order. Add to View Price |
|||
|
#92037
CLAMP
92037-1201
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
|
#92037A
CLAMP,TUBE
92037-1531
|
$5.34 | ||
|
Available to order. Add to View Price |
|||
|
#92043
PIN,FLOAT
92043-1207
|
$4.88 | ||
|
Available to order. Add to View Price |
|||
|
#92055
RING-O,PILOT ADJUST
92055-1002
|
$4.17 | ||
|
Available to order. Add to View Price |
|||
|
#92055A
RING-O,STARTER PLUNGE
92055-1416
|
$5.60 | ||
|
Available to order. Add to View Price |
|||
|
#92055B
RING-O,FLOAT CHAMBER
92055-1518
|
$23.56 | ||
|
Available to order. Add to View Price |
|||
|
#92059
TUBE,6.5X11.5X150
92059-1463
|
$33.72 | ||
|
Available to order. Add to View Price |
|||
|
#92059A
TUBE,6.5X9.5X430
92059-1727
|
$29.37 | ||
|
Available to order. Add to View Price |
|||
|
#92059B
TUBE,7X10X100
92059-1736
|
$4.32 | ||
|
Available to order. Add to View Price |
|||
|
#92063
MAIN JET,2ND,#85
92063-1023
|
$15.20 | ||
|
Available to order. Add to View Price |
|||
|
#92063A
JET-MAIN,2ND,#125
92063-1069
|
$14.26 | ||
|
Available to order. Add to View Price |
|||
|
#92063C
JET-MAIN,#118
92063-1071
|
$14.26 | ||
|
Available to order. Add to View Price |
|||
|
#92063D
JET-MAIN,#120
92063-1072
|
$14.26 | ||
|
Available to order. Add to View Price |
|||
|
#92063E
JET-MAIN,2ND,#122
92063-1073
|
$14.26 | ||
|
Available to order. Add to View Price |
|||
|
#92063I
JET-MAIN,#115
92063-1118
|
$14.26 | ||
|
Available to order. Add to View Price |
|||
|
#92081
SPRING,PILOT ADJUST SCREW
92081-1002
|
$5.29 | ||
|
Available to order. Add to View Price |
|||
|
#92081A
SPRING
92081-1620
|
$4.80 | ||
|
Available to order. Add to View Price |
|||
|
#92081B
SPRING,PLUNGER
92081-1720
|
$9.83 | ||
|
Available to order. Add to View Price |
|||
|
#92081C
SPRING,VACUUM VALVE
92081-1775
Superseded by 92081-1912
|
$24.89 | ||
|
Available to order. Add to View Price |
|||
|
#92143
COLLAR
92143-1589
|
$3.98 | ||
|
Available to order. Add to View Price |
|||
|
#92144
SPRING,PUMP
92144-1672
|
$10.29 | ||
|
Available to order. Add to View Price |
|||
|
#92190
TUBE,4.5X8X330
92190-1557
|
$14.92 | ||
|
Available to order. Add to View Price |
|||
|
#220
SCREW-PAN-CROS,4X8
220B0408
Superseded by 220AA0408
|
$0.67 | ||
|
Available to order. Add to View Price |
|||
|
#220A
SCREW-PAN-CROS
220D0414
Superseded by 220AA0414
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
|
#223
SCREW-PAN-WS-CROS
223C0412
Superseded by 223AB0412
|
$4.18 | ||
|
Available to order. Add to View Price |
|||
