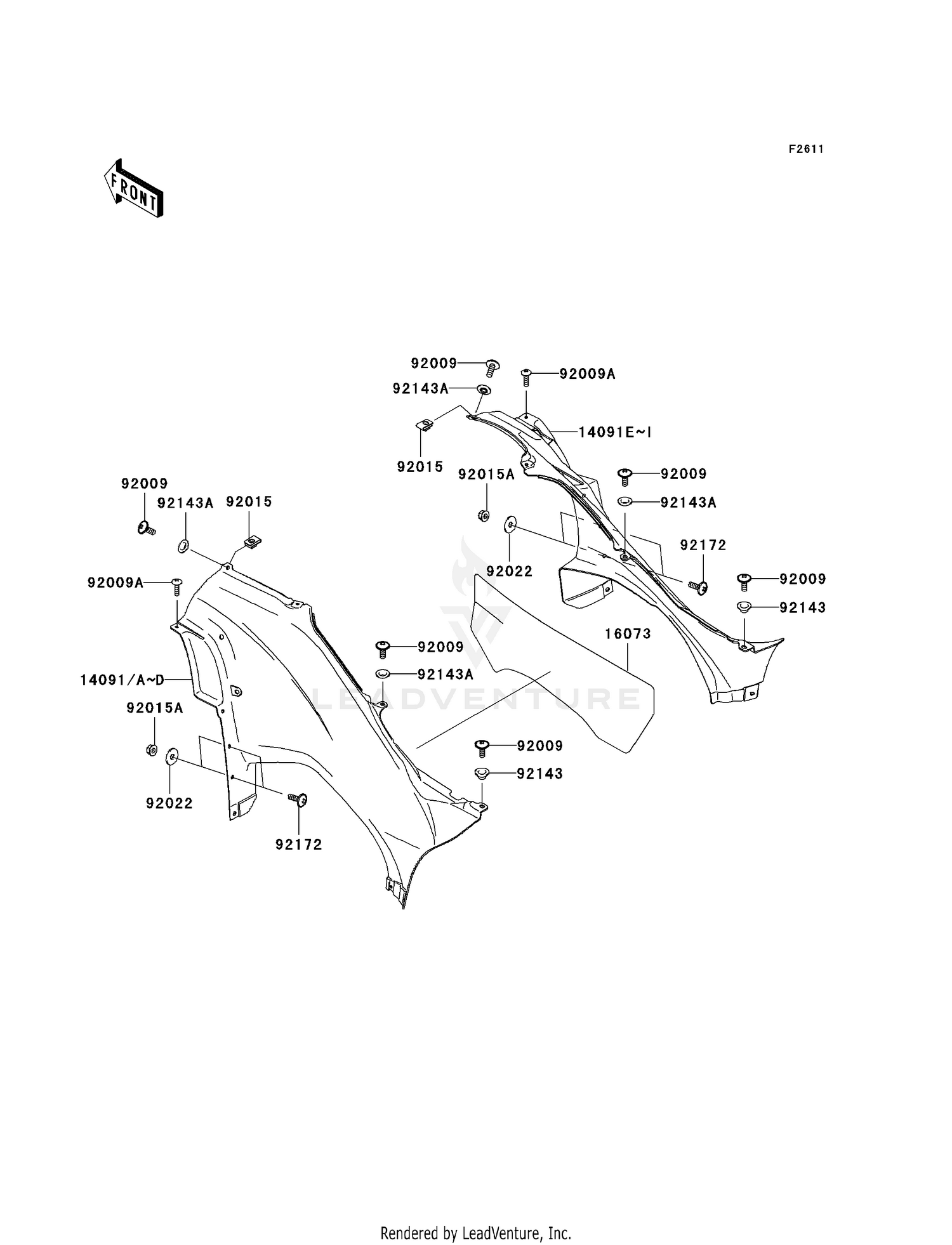

2007 Kawasaki BRUTE FORCE 650 4X4I SIDE COVERS OEM Parts Diagram
Accessory
+
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Cooling System
+
Dash & Gauges
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Labels
+
Other
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#14091A
COVER,SIDE,LH,A.RED
14091-0137-260
|
$43.52 | ||
|
Available to order. Add to View Price |
|||
|
#14091B
COVER,SIDE,LH,W.GREEN
14091-0137-286
|
$44.30 | ||
|
Available to order. Add to View Price |
|||
|
#14091D
COVER,SIDE,LH,BLACK
14091-0137-839
|
$41.54 | ||
|
Available to order. Add to View Price |
|||
|
#14091F
COVER,SIDE,RH,A.RED
14091-0138-260
|
$43.52 | ||
|
Available to order. Add to View Price |
|||
|
#14091G
COVER,SIDE,RH,W.GREEN
14091-0138-286
|
$44.30 | ||
|
Available to order. Add to View Price |
|||
|
#14091I
COVER,SIDE,RH,BLACK
14091-0138-839
|
$41.54 | ||
|
Available to order. Add to View Price |
|||
|
#16073
INSULATOR,SIDE COVER
16073-0030
Superseded by 16073-0927
|
$35.88 | ||
|
Available to order. Add to View Price |
|||
|
#92009
SCREW,6X16
92009-1621
Superseded by 92009-1694
|
$3.57 | ||
|
Available to order. Add to View Price |
|||
|
#92009A
SCREW,5X18
92009-1655
|
$4.01 | ||
|
Available to order. Add to View Price |
|||
|
#92015
NUT,6MM
92015-1602
|
$6.57 | ||
|
Available to order. Add to View Price |
|||
|
#92015A
NUT,LOCK,FLANGED,6MM
92015-1603
|
$4.37 | ||
|
Available to order. Add to View Price |
|||
|
#92022
WASHER,6.5X20X1.6,BLACK
92022-1346
|
$0.48 | ||
|
Available to order. Add to View Price |
|||
|
#92143
COLLAR
92143-1057
|
$4.66 | ||
|
Available to order. Add to View Price |
|||
|
#92143A
COLLAR
92143-1087
|
$4.01 | ||
|
Available to order. Add to View Price |
|||
|
#92172
SCREW,6X18
92172-0002
|
$2.62 | ||
|
Available to order. Add to View Price |
|||
