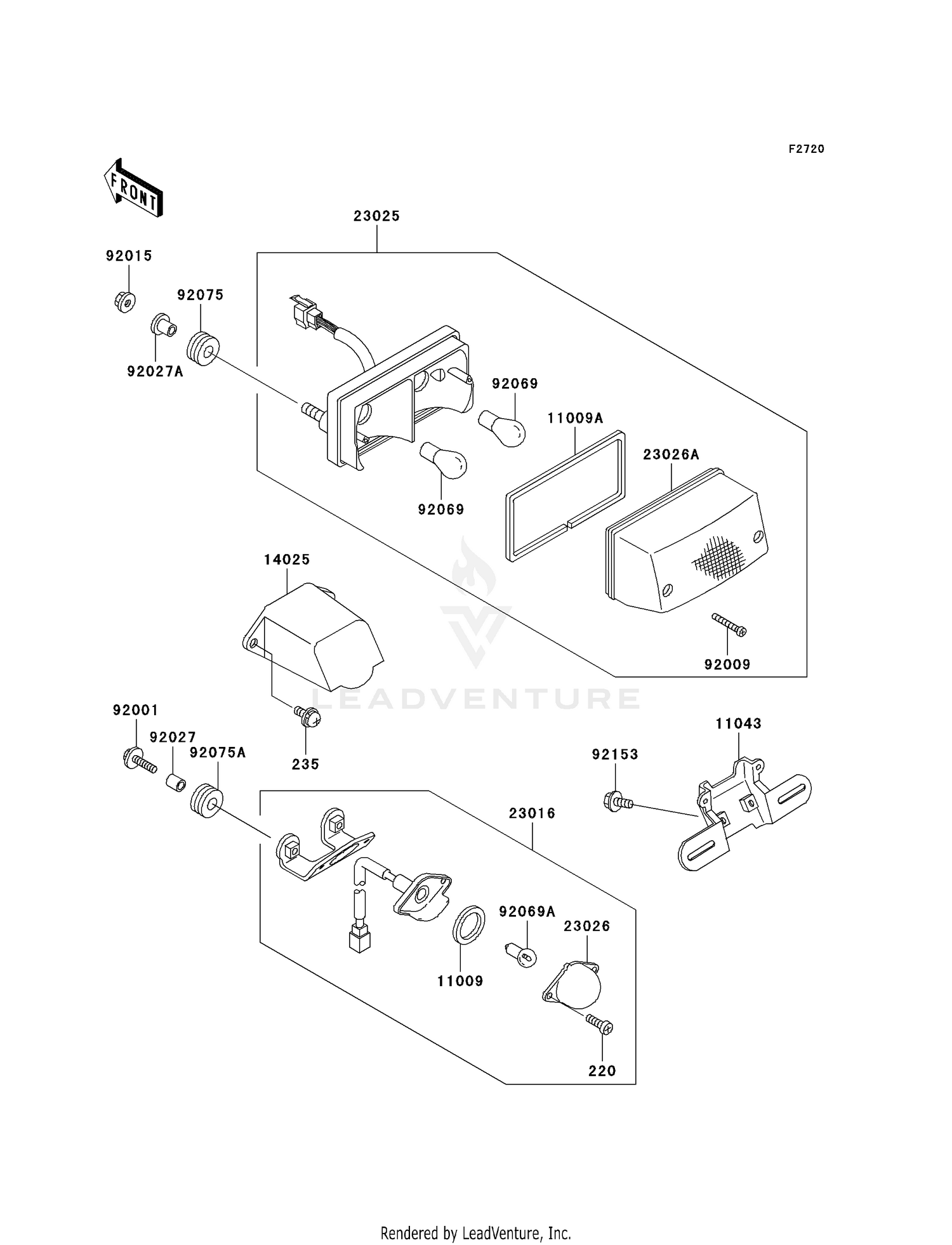

Taillight(s) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#220
SCREW-PAN-CROS,4X10
220B0410
Superseded by 220AA0410
|
$2.39 | ||
|
Available to order. Add to View Price |
|||
|
#235
SCREW-PAN-WP-CROS
235C0616
Superseded by 235AB0616
|
$4.18 | ||
|
Available to order. Add to View Price |
|||
|
#11009
GASKET,LICENSE PLATE LAMP
11009-1372
|
$4.50 | ||
|
Available to order. Add to View Price |
|||
|
#11009A
GASKET,TAIL LAMP
11009-1581
|
$6.67 | ||
|
Available to order. Add to View Price |
|||
|
#11043
BRACKET,REFLECTOR
11043-1440
|
$26.38 | ||
|
Available to order. Add to View Price |
|||
|
#14025
COVER,LICENSE PLATE L
14025-1821
|
$19.28 | ||
|
Available to order. Add to View Price |
|||
|
#23016
LAMP-ASSY,LICENSE PLA
23016-1054
|
$70.14 | ||
|
Available to order. Add to View Price |
|||
|
#23025
LAMP-TAIL
23025-1304
|
$214.64 | ||
|
Available to order. Add to View Price |
|||
|
#23026
LENS,LAMP
23026-1054
|
$8.96 | ||
|
Available to order. Add to View Price |
|||
|
#23026A
LENS,TAIL LAMP
23026-1079
|
$30.88 | ||
|
Available to order. Add to View Price |
|||
|
#92001
BOLT,6X20
92001-1773
|
$3.84 | ||
|
Available to order. Add to View Price |
|||
|
#92009
SCREW,TAPPING,4X20
92009-1378
|
$3.97 | ||
|
Available to order. Add to View Price |
|||
|
#92015
NUT,FLANGED,6MM
92015-1367
|
$3.59 | ||
|
Available to order. Add to View Price |
|||
|
#92027
COLLAR,6.8X10X10.5
92027-120
|
$4.84 | ||
|
Available to order. Add to View Price |
|||
|
#92027A
COLLAR
92027-251
Superseded by 92152-0365
|
$1.31 | ||
|
Available to order. Add to View Price |
|||
|
#92069
BULB,12V 21/5W
92069-063
|
$8.98 | ||
|
Available to order. Add to View Price |
|||
|
#92069A
BULB,12V 5W
92069-1055
|
$5.02 | ||
|
Available to order. Add to View Price |
|||
|
#92075
DAMPER,10X24X12
92075-1690
|
$4.84 | ||
|
Available to order. Add to View Price |
|||
|
#92075A
DAMPER,CASE
92075-222
|
$7.09 | ||
|
Available to order. Add to View Price |
|||
|
#92153
BOLT,6X16
92153-0684
|
$4.35 | ||
|
Available to order. Add to View Price |
|||
