1999 Kawasaki CONCOURS Drive Shaft/final Gear OEM Parts

Accessory
+
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Cooling System
+
Dash & Gauges
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Labels
+
Seat
+
Suspension
+
< Back to Assembly Types

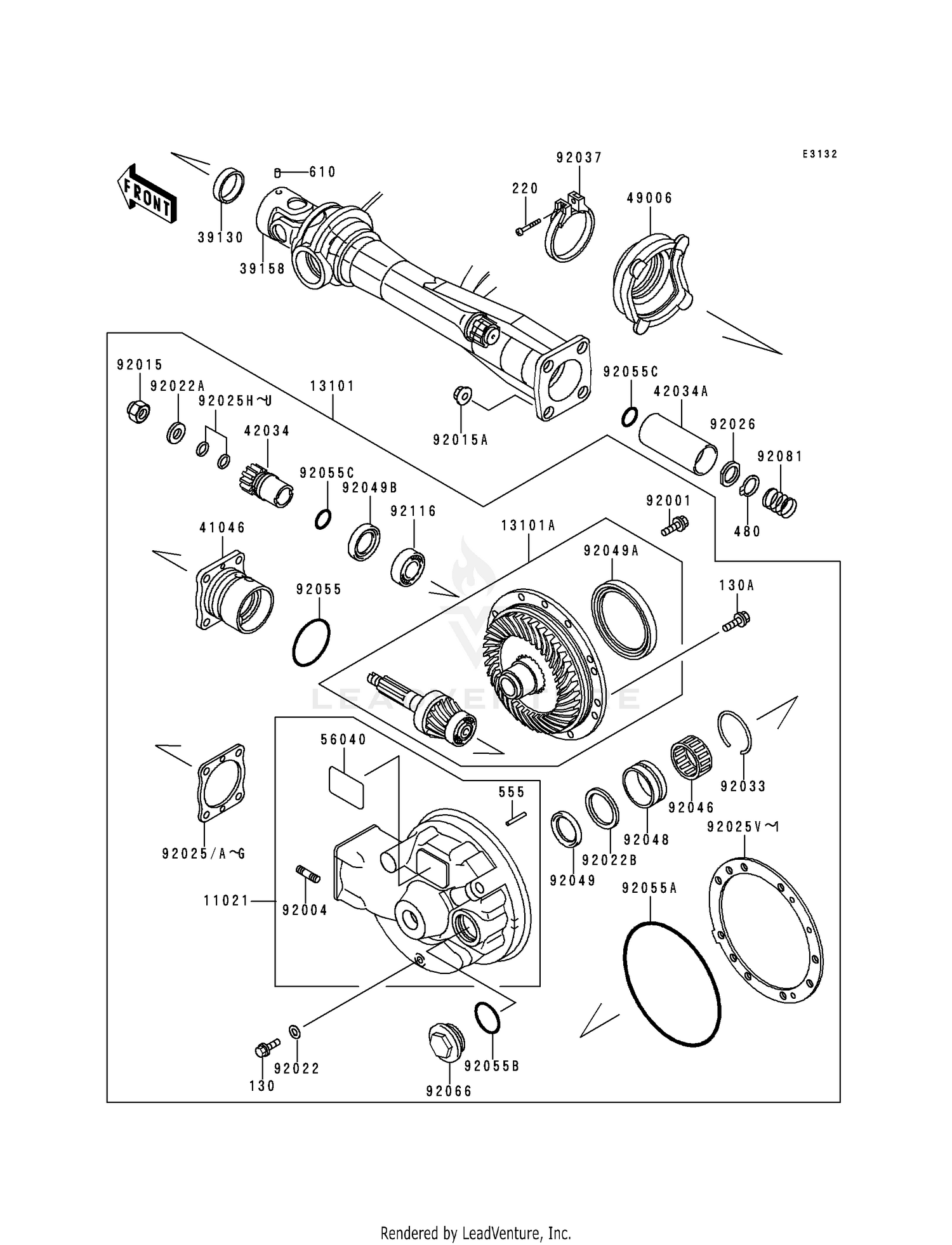

Drive Shaft/final Gear Diagram

Item MSRP Qty
#11021 CASE-ASSY,FINAL BEVEL
11021-1063-GD
 $1,282.53
Available to order.
Add to View Price
#13101 GEAR-ASSY,FINAL BEVEL
13101-1099-GD
 $2,528.06
Available to order.
Add to View Price
#13101A GEAR-ASSY,FINAL BEVEL
13101-5063
 $1,394.07
Available to order.
Add to View Price
#39130 SPRING-LEAF
39130-1002
 $4.50
Available to order.
Add to View Price
#39158 SHAFT-ASSY-DRIVE
39158-1059
 $403.66
Available to order.
Add to View Price
#41046 HOUSING-BEARING,BLACK
41046-1069
 $201.89
Available to order.
Add to View Price
#42034 COUPLING
42034-1079
 $130.87
Available to order.
Add to View Price
#42034A COUPLING,PROPELLER SH
42034-1092
Superseded by 42034-1178
 $92.89
Available to order.
Add to View Price
#49006 BOOT
49006-1188
 $43.47
Available to order.
Add to View Price
#56040 LABEL,HYPOID GEAR OIL
56040-1047
 $5.90
Available to order.
Add to View Price
#92001 BOLT,FLANGED,10X23
92001-1778
 $5.74
Available to order.
Add to View Price
#92004 STUD,10X30,BLACK
92004-1045
 $7.86
Available to order.
Add to View Price
#92015 NUT,16MM
92015-1059
 $11.08
Available to order.
Add to View Price
#92015A NUT,10MM
92015-1649
 $5.34
Available to order.
Add to View Price
#92022 WASHER,8.2X16X1
92022-1086
 $3.80
Available to order.
Add to View Price
#92022A WASHER,16X32X3.2
92022-1105
 $11.08
Available to order.
Add to View Price
#92022B WASHER,39X49.5X1
92022-1294
 $6.99
Available to order.
Add to View Price
#92025 SHIM,0.15T
92025-1052
 $11.91
Available to order.
Add to View Price
#92025A SHIM,0.50T
92025-1053
 $10.03
Available to order.
Add to View Price
#92025B SHIM,0.60T
92025-1054
 $9.76
Available to order.
Add to View Price
#92025C SHIM,0.70T
92025-1055
 $10.03
Available to order.
Add to View Price
#92025D SHIM,0.80T
92025-1056
 $9.76
Available to order.
Add to View Price
#92025E SHIM,0.90T
92025-1057
 $10.03
Available to order.
Add to View Price
#92025F SHIM,1.00T
92025-1058
 $10.03
Available to order.
Add to View Price
#92025G SHIM,1.20T
92025-1059
 $9.76
Available to order.
Add to View Price
#92025H SHIM,T=1.30
92025-1214
 $8.89
Available to order.
Add to View Price
#92025I SHIM,T=1.32
92025-1215
 $9.76
Available to order.
Add to View Price
#92025J SHIM,T=1.34
92025-1216
 $9.76
Available to order.
Add to View Price
#92025K SHIM,T=1.36
92025-1217
 $9.76
Available to order.
Add to View Price
#92025L SHIM,T=1.38
92025-1218
 $9.76
Available to order.
Add to View Price
#92025M SHIM,T=0.10
92025-1219
 $6.40
Available to order.
Add to View Price
#92025N SHIM,T=0.20
92025-1220
 $6.99
Available to order.
Add to View Price
#92025O SHIM,T=0.30
92025-1221
 $6.40
Available to order.
Add to View Price
#92025P SHIM,T=0.50
92025-1222
 $6.99
Available to order.
Add to View Price
#92025Q SHIM,T=0.60
92025-1223
 $8.67
Available to order.
Add to View Price
#92025R SHIM,T=0.70
92025-1224
 $9.25
Available to order.
Add to View Price
#92025S SHIM,T=0.80
92025-1225
 $8.67
Available to order.
Add to View Price
#92025T SHIM,T=0.90
92025-1226
 $8.67
Available to order.
Add to View Price
#92025U SHIM,T=1.00
92025-1227
 $9.25
Available to order.
Add to View Price
#92025V SHIM,T=0.10
92025-1625
 $10.03
Available to order.
Add to View Price
#130 BOLT-FLANGED
130X0812
Superseded by 130AD0812
 $4.40
Available to order.
Add to View Price
#130A BOLT-FLANGED,8X25
130Y0825
Superseded by 130BD0825
 $3.77
Available to order.
Add to View Price
#220 SCREW-PAN-CROS
220B0430
Superseded by 220AA0430
 $0.75
Available to order.
Add to View Price
#480 CIRCLIP-TYPE-C,26MM
480J2600
 $9.68
Available to order.
Add to View Price
#555 PIN-SPRING
555A0428
 $2.28
Available to order.
Add to View Price
#610 ROLLER,4X6
610A0406
 $4.17
Available to order.
Add to View Price
#920250 SHIM
92025-1630
 $21.28
Available to order.
Add to View Price
#920251 SHIM
92025-1631
 $21.28
Available to order.
Add to View Price
#92025W SHIM
92025-1626
 $10.03
Available to order.
Add to View Price
#92025X SHIM
92025-1627
 $9.76
Available to order.
Add to View Price
#92025Y SHIM
92025-1628
 $10.03
Available to order.
Add to View Price
#92025Z SHIM
92025-1629
 $22.65
Available to order.
Add to View Price
#92026 SPACER,PROPELLER SHAFT
92026-1085
 $7.93
Available to order.
Add to View Price
#92033 RING-SNAP,52MM
92033-1074
 $4.50
Available to order.
Add to View Price
#92037 CLAMP,BOOT FITTING
92037-1112
 $16.12
Available to order.
Add to View Price
#92046 BEARING-NEEDLE,KTV384
92046-1057
 $58.94
Available to order.
Add to View Price
#92048 RACE,ORT465021E01
92048-1019
 $42.90
Available to order.
Add to View Price
#92049 SEAL-OIL,S-35477HS
92049-1025
 $14.37
Available to order.
Add to View Price
#92049A OIL SEAL,S-901159HS
92049-1026
 $39.14
Available to order.
Add to View Price
#92049B SEAL-OIL,SC32487
92049-1033
 $18.16
Available to order.
Add to View Price
#92055 0 RING,I.D=57.6MM
92055-1038
 $7.36
Available to order.
Add to View Price
#92055A RING-O,154MM
92055-1165
 $10.97
Available to order.
Add to View Price
#92055B RING-O,35.8MM
92055-1281
 $7.09
Available to order.
Add to View Price
#92055C RING-O
92055-1556
Superseded by 92055-1646
 $7.46
Available to order.
Add to View Price
#92066 PLUG,36X7.5,G.GRAY
92066-1006-GD
 $15.97
Available to order.
Add to View Price
#92081 SPRING,PROPELLER SHAFT
92081-1183
 $7.29
Available to order.
Add to View Price
#92116 BRG,ROLLER,4T-32005
92116-1004
 $46.13
Available to order.
Add to View Price
