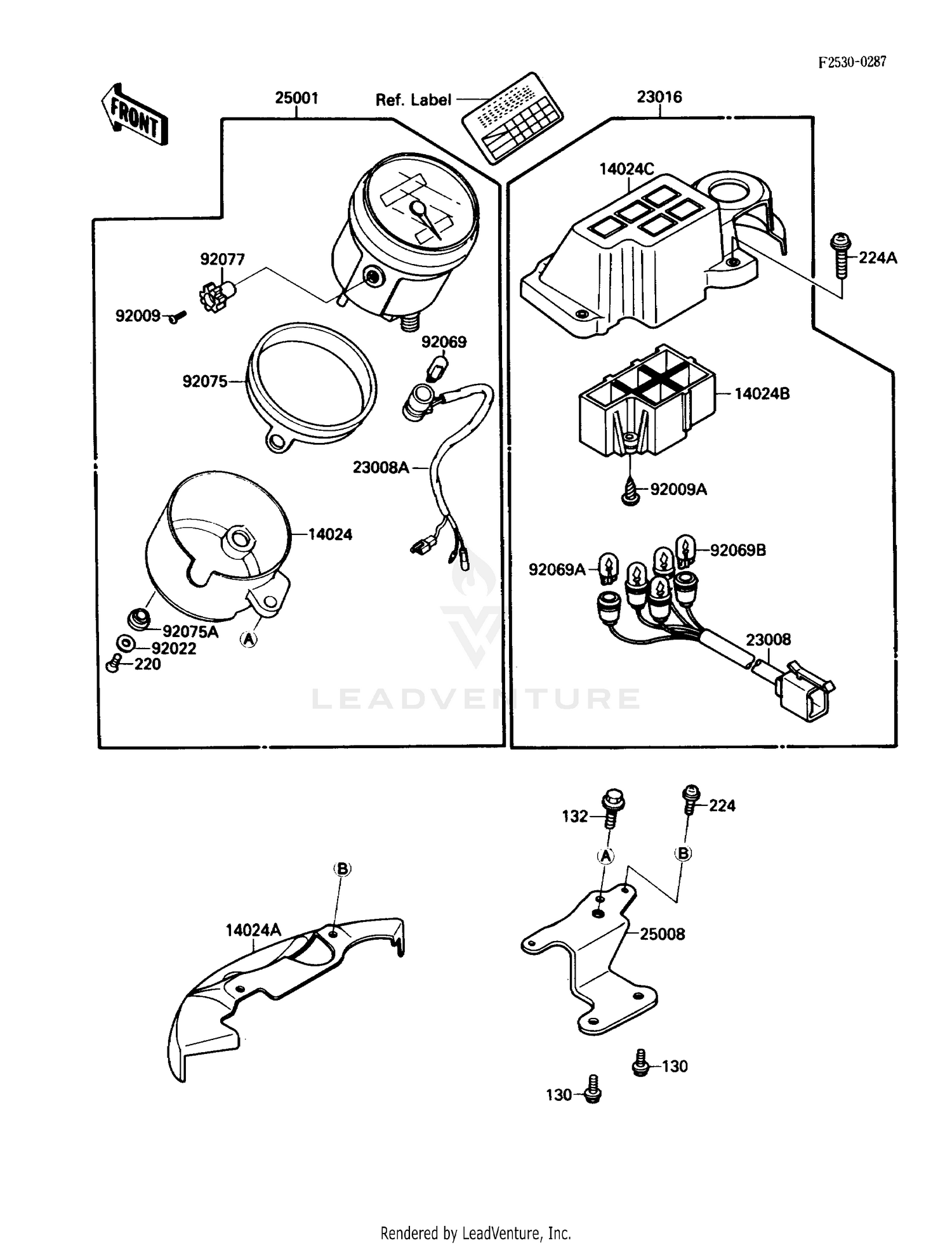

Meter(s) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#14024
COVER
14024-1096
|
$145.44 | ||
|
Available to order. Add to View Price |
|||
|
#14024A
COVER,HEAD LAMP
14024-1564
|
$55.40 | ||
|
Available to order. Add to View Price |
|||
|
#14024B
COVER,PILOT BOX,LWR
14024-1604
|
$21.20 | ||
|
Available to order. Add to View Price |
|||
|
#14024C
COVER,PILOT BOX,UPP
14024-1605
|
$88.38 | ||
|
Available to order. Add to View Price |
|||
|
#23008
SOCKET-ASSY,PILOT BOX
23008-1354
|
$49.25 | ||
|
Available to order. Add to View Price |
|||
|
#23008A
SOCKET-ASSY,SPEEDOMET
23008-1356
|
$20.78 | ||
|
Available to order. Add to View Price |
|||
|
#23016
LAMP-ASSY,PILOT BOX
23016-1089
|
$152.96 | ||
|
Available to order. Add to View Price |
|||
|
#25001
METER-ASSY,SPEED,MPH
25001-1704
|
$558.51 | ||
|
Available to order. Add to View Price |
|||
|
#25008
BRACKET-METER
25008-1141
|
$13.61 | ||
|
Available to order. Add to View Price |
|||
|
#92009
SCREW,2X6,BLACK
92009-1172
|
$2.54 | ||
|
Available to order. Add to View Price |
|||
|
#92009A
SCREW,TAPPING,4X14
92009-1503
|
$3.53 | ||
|
Available to order. Add to View Price |
|||
|
#92022
WASHER
92022-1822
|
$4.65 | ||
|
Available to order. Add to View Price |
|||
|
#92069
BULB,12V 3.4W,T10
92069-1007
|
$4.84 | ||
|
Available to order. Add to View Price |
|||
|
#92069A
BULB,14V 3W,T6.5
92069-1068
|
$4.84 | ||
|
Available to order. Add to View Price |
|||
|
#92069B
BULB,12V 1.7W,T6.5
92069-1070
|
$6.31 | ||
|
Available to order. Add to View Price |
|||
|
#92075
DAMPER
92075-1751
|
$15.09 | ||
|
Available to order. Add to View Price |
|||
|
#92075A
DAMPER
92075-1753
|
$5.77 | ||
|
Available to order. Add to View Price |
|||
|
#92077
KNOB,METER
92077-1059
|
$7.20 | ||
|
Available to order. Add to View Price |
|||
|
#130
BOLT-FLANGED,6X14
130D0614
Superseded by 130AA0614
|
$0.48 | ||
|
Available to order. Add to View Price |
|||
|
#132
BOLT
132E0620
Superseded by 92002-1607
|
$4.61 | ||
|
Available to order. Add to View Price |
|||
|
#220
SCREW-PAN-CROS
220E0408
|
$3.21 | ||
|
Available to order. Add to View Price |
|||
|
#224
SCREW-PAN-WP-CROS,5X8
224B0508
Superseded by 224AA0508
|
$0.67 | ||
|
Available to order. Add to View Price |
|||
|
#224A
SCREW-PAN-WP-CROS,4X2
224C0420
Superseded by 224AB0420
|
$3.26 | ||
|
Available to order. Add to View Price |
|||
