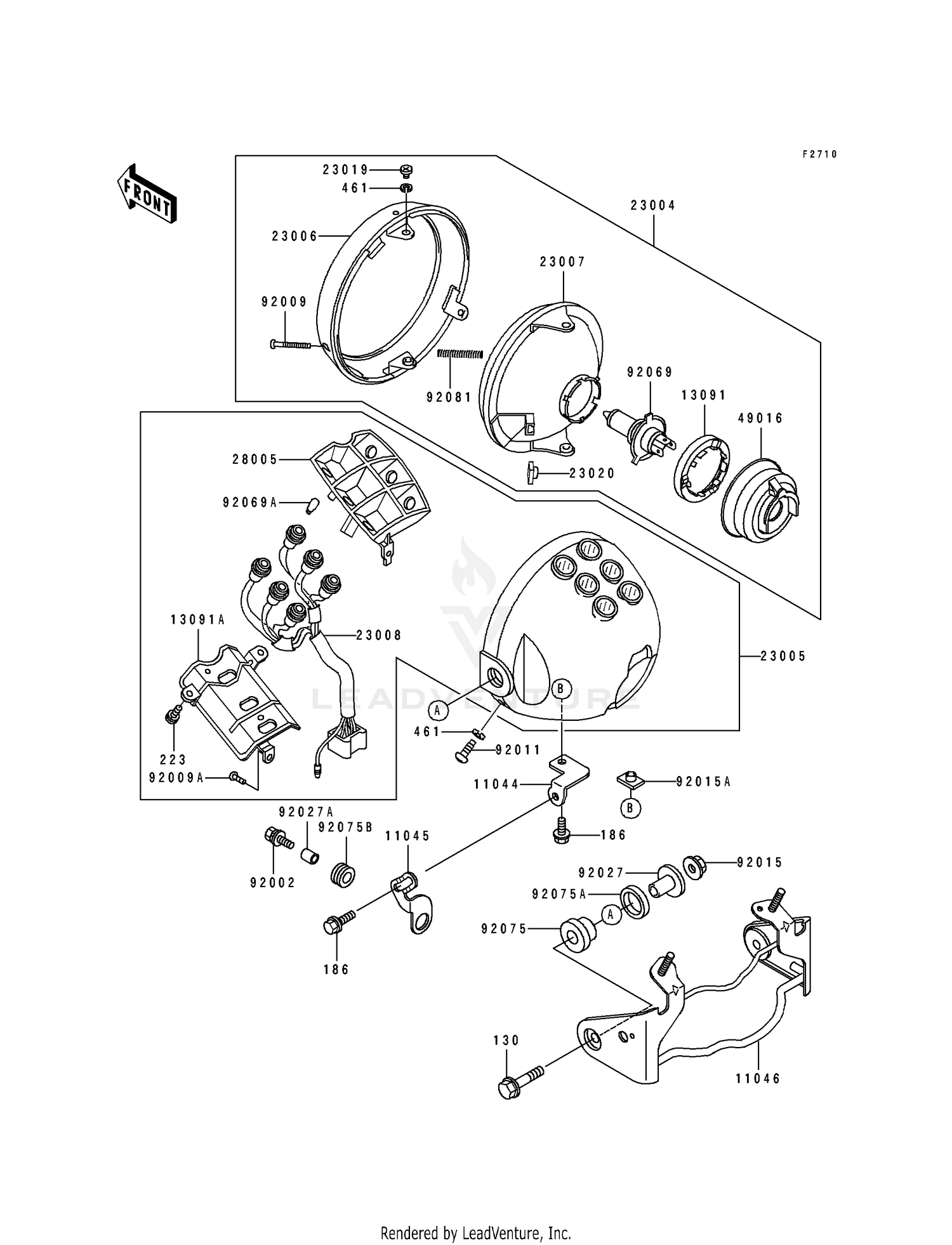

Headlight(s) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#11044
BRACKET,HEAD LAMP,LWR
11044-1915
|
$7.90 | ||
|
Available to order. Add to View Price |
|||
|
#11045
BRACKET,HEAD LAMP,LWR
11045-1789
|
$7.75 | ||
|
Available to order. Add to View Price |
|||
|
#11046
BRACKET,HEAD LAMP STA
11046-1761
|
$62.36 | ||
|
Available to order. Add to View Price |
|||
|
#13091
HOLDER
13091-1386
|
$9.44 | ||
|
Available to order. Add to View Price |
|||
|
#13091A
HOLDER
13091-1387
|
$18.30 | ||
|
Available to order. Add to View Price |
|||
|
#23004
LAMP-HEAD
23004-1188
|
$235.98 | ||
|
Available to order. Add to View Price |
|||
|
#23005
BODY-COMP-HEAD LAMP,E
23005-1076-H8
|
$221.00 | ||
|
Available to order. Add to View Price |
|||
|
#23006
RIM-LAMP
23006-1057
|
$56.42 | ||
|
Available to order. Add to View Price |
|||
|
#23007
LENS-COMP
23007-1136
|
$119.94 | ||
|
Available to order. Add to View Price |
|||
|
#23008
SOCKET-ASSY,HEAD LAMP
23008-1316
|
$73.31 | ||
|
Available to order. Add to View Price |
|||
|
#23019
SCREW,LENS FITTING
23019-031
|
$3.82 | ||
|
Available to order. Add to View Price |
|||
|
#23020
NUT ADJUST
23020-012
|
$3.79 | ||
|
Available to order. Add to View Price |
|||
|
#28005
BODY-LAMP
28005-1053
|
$25.00 | ||
|
Available to order. Add to View Price |
|||
|
#49016
COVER-SEAL
49016-1110
|
$8.59 | ||
|
Available to order. Add to View Price |
|||
|
#92002
BOLT,6X25
92002-1137
|
$4.25 | ||
|
Available to order. Add to View Price |
|||
|
#92009
SCREW
92009-1394
|
$4.11 | ||
|
Available to order. Add to View Price |
|||
|
#92009A
SCREW,TAPPING,4X12
92009-1395
|
$4.50 | ||
|
Available to order. Add to View Price |
|||
|
#92011
SCREW,5MM
92011-024
Superseded by 92009-1947
|
$2.51 | ||
|
Available to order. Add to View Price |
|||
|
#92015
NUT,FLANGED,8MM
92015-1014
|
$0.64 | ||
|
Available to order. Add to View Price |
|||
|
#92015A
NUT-6MM,HEAD LAMP
92015-1231
|
$7.91 | ||
|
Available to order. Add to View Price |
|||
|
#92027
COLLAR,L=20
92027-1131
|
$8.63 | ||
|
Available to order. Add to View Price |
|||
|
#92027A
COLLAR,6.8X10X12
92027-162
|
$6.36 | ||
|
Available to order. Add to View Price |
|||
|
#92069
BULB,12V 60/55W,H4
92069-1002
Superseded by 92069-0050
|
$17.64 | ||
|
Available to order. Add to View Price |
|||
|
#92069A
BULB,12V3W T-7
92069-1020
|
$6.31 | ||
|
Available to order. Add to View Price |
|||
|
#92075
DAMPER,HEAD LAMP FITTING
92075-1109
|
$6.02 | ||
|
Available to order. Add to View Price |
|||
|
#92075A
DAMPER,HEAD LAMP FITTING
92075-1110
|
$4.84 | ||
|
Available to order. Add to View Price |
|||
|
#92075B
DAMPER
92075-209
|
$4.54 | ||
|
Available to order. Add to View Price |
|||
|
#92081
SPRING
92081-1892
|
$3.84 | ||
|
Available to order. Add to View Price |
|||
|
#130
BOLT-FLANGED,8X40
130C0840
|
$3.08 | ||
|
Available to order. Add to View Price |
|||
|
#186
BOLT-UPSET-WP
186C0614
Superseded by 186AB0614
|
$4.47 | ||
|
Available to order. Add to View Price |
|||
|
#223
SCREW-PAN-WS-CROS
223D0410
Superseded by 223AA0410
|
$0.67 | ||
|
Available to order. Add to View Price |
|||
|
#461
WASHER-SPRING,5MM
461F0500
Superseded by 461DA0500
|
$0.69 | ||
|
Available to order. Add to View Price |
|||
