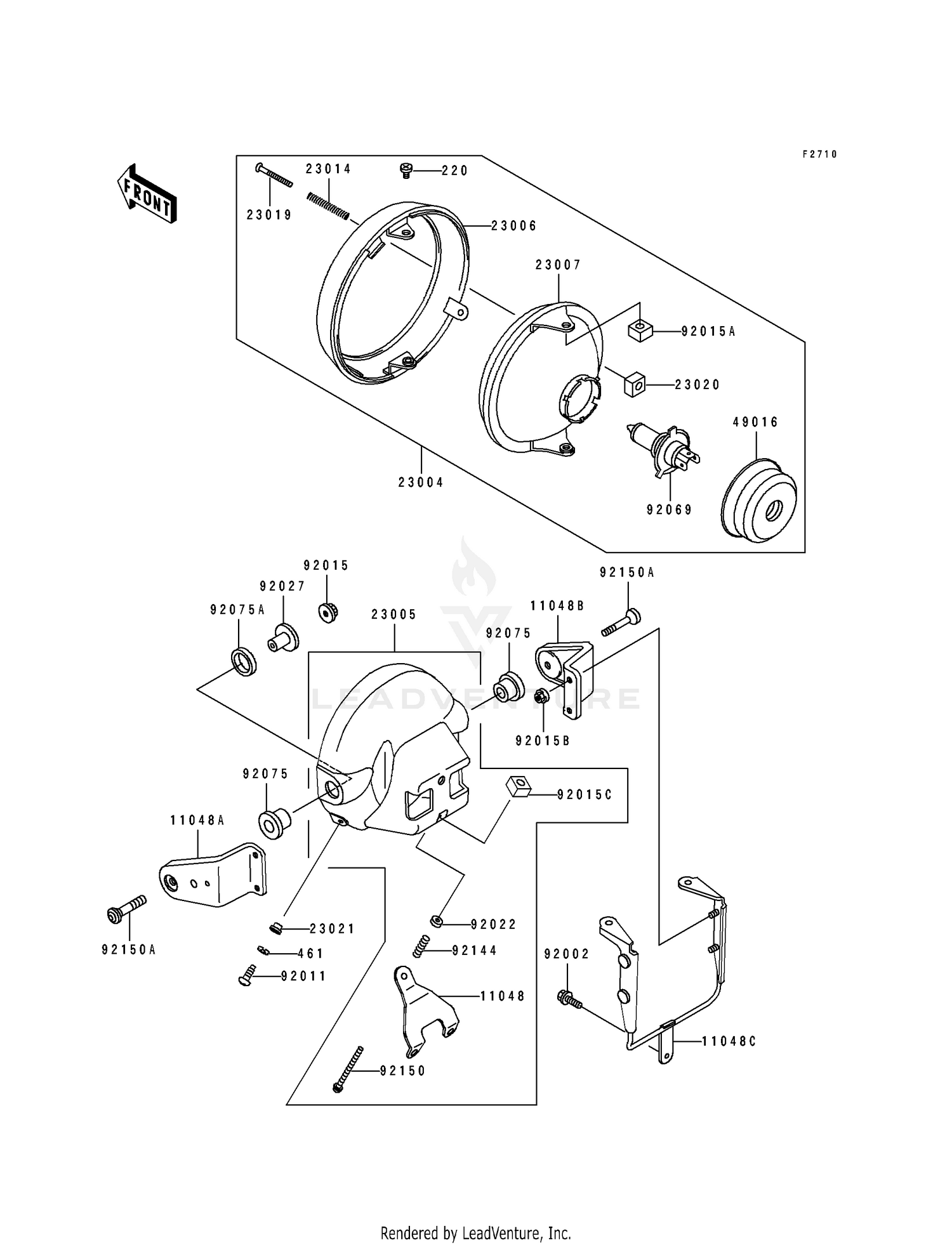

Headlight(s) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#11048
BRACKET,HEAD LAMP BOD
11048-1406
|
$9.57 | ||
|
Available to order. Add to View Price |
|||
|
#11048A
BRACKET,HEAD LAMP,LH
11048-1407
|
$49.61 | ||
|
Available to order. Add to View Price |
|||
|
#11048B
BRACKET,HEAD LAMP,RH
11048-1408
|
$51.99 | ||
|
Available to order. Add to View Price |
|||
|
#11048C
BRACKET,HEAD LAMP
11048-1409
|
$75.34 | ||
|
Available to order. Add to View Price |
|||
|
#23004
LAMP-HEAD
23004-1275
Superseded by 23004-1435
|
$266.30 | ||
|
Available to order. Add to View Price |
|||
|
#23005
BODY-COMP-HEAD LAMP
23005-1144
|
$124.68 | ||
|
Available to order. Add to View Price |
|||
|
#23006
RIM-LAMP,CR PLATED
23006-1020
|
$62.24 | ||
|
Available to order. Add to View Price |
|||
|
#23007
LENS-COMP,HEAD LAMP
23007-1224
Superseded by 23007-1371
|
$148.93 | ||
|
Available to order. Add to View Price |
|||
|
#23014
SPRING FOCUS ADJUST
23014-005
|
$3.50 | ||
|
Available to order. Add to View Price |
|||
|
#23019
SCREW FORCUS ADJUST
23019-021
|
$4.54 | ||
|
Available to order. Add to View Price |
|||
|
#23020
NUT,4MM,FOCUS ADJUST
23020-018
|
$4.50 | ||
|
Available to order. Add to View Price |
|||
|
#23021
WASHER
23021-010
|
$4.17 | ||
|
Available to order. Add to View Price |
|||
|
#49016
COVER-SEAL,HEAD LAMP
49016-1046
|
$11.96 | ||
|
Available to order. Add to View Price |
|||
|
#92002
BOLT
92002-1626
|
$4.30 | ||
|
Available to order. Add to View Price |
|||
|
#92011
SCREW,5MM
92011-024
Superseded by 92009-1947
|
$2.51 | ||
|
Available to order. Add to View Price |
|||
|
#92015
NUT,FLANGED,8MM
92015-1014
|
$0.64 | ||
|
Available to order. Add to View Price |
|||
|
#92015A
NUT,5MM
92015-1157
|
$4.72 | ||
|
Available to order. Add to View Price |
|||
|
#92015B
NUT,CAP,6MM
92015-1170
Superseded by 92210-0003
|
$0.63 | ||
|
Available to order. Add to View Price |
|||
|
#92015C
NUT,5MM,FOCUS ADJUST
92015-1799
|
$4.20 | ||
|
Available to order. Add to View Price |
|||
|
#92022
WASHER,5.2X13X1
92022-1380
|
$4.17 | ||
|
Available to order. Add to View Price |
|||
|
#92027
COLLAR,L=20
92027-1131
|
$8.63 | ||
|
Available to order. Add to View Price |
|||
|
#92069
BULB,12V 60/55W,H4
92069-1002
Superseded by 92069-0050
|
$17.64 | ||
|
Available to order. Add to View Price |
|||
|
#92075
DAMPER,HEAD LAMP FITTING
92075-1109
|
$6.02 | ||
|
Available to order. Add to View Price |
|||
|
#92075A
DAMPER,HEAD LAMP FITTING
92075-1110
|
$4.84 | ||
|
Available to order. Add to View Price |
|||
|
#92144
SPRING
92144-1417
|
$4.46 | ||
|
Available to order. Add to View Price |
|||
|
#92150
BOLT,ADJUST,5X45
92150-1590
|
$6.29 | ||
|
Available to order. Add to View Price |
|||
|
#92150A
BOLT
92150-1735
|
$12.61 | ||
|
Available to order. Add to View Price |
|||
|
#220
SCREW-PAN-CROS,5X10
220D0510
Superseded by 220AA0510
|
$0.69 | ||
|
Available to order. Add to View Price |
|||
|
#461
WASHER-SPRING,5MM
461F0500
Superseded by 461DA0500
|
$0.69 | ||
|
Available to order. Add to View Price |
|||
