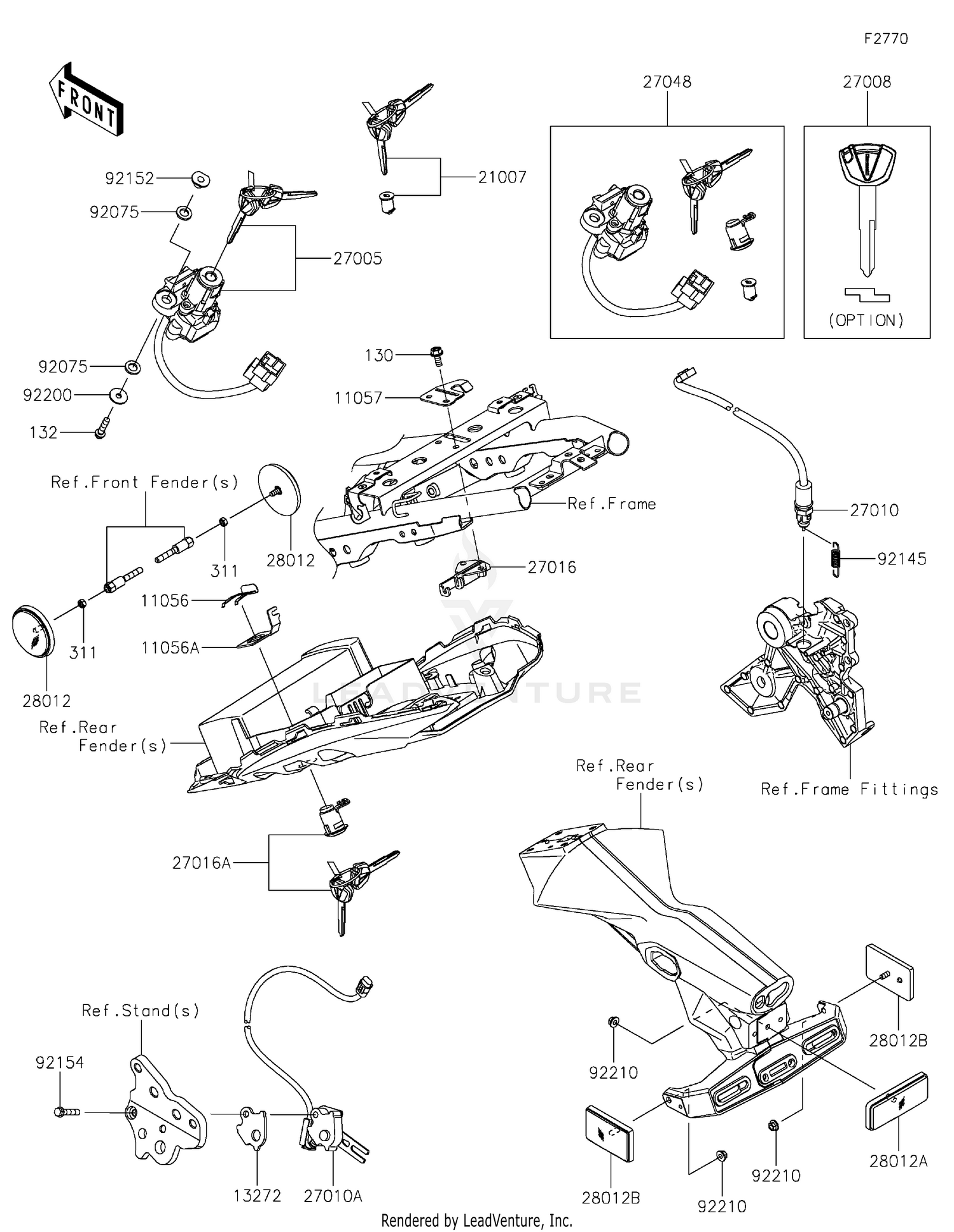

Ignition Switch/locks/reflectors Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#11056
BRACKET,CLASP
11056-0238
|
$5.81 | ||
|
Available to order. Add to View Price |
|||
|
#11056A
BRACKET,SEAT LOCK
11056-2119
|
$4.27 | ||
|
Available to order. Add to View Price |
|||
|
#11057
BRACKET,STRIKER
11057-2812
|
$2.26 | ||
|
Available to order. Add to View Price |
|||
|
#13272
PLATE
13272-1330
|
$3.59 | ||
|
Available to order. Add to View Price |
|||
|
#21007
ROTOR,LOCK,TANK CAP
21007-5077
Superseded by 21007-5083
|
$118.37 | ||
|
Available to order. Add to View Price |
|||
|
#27005
SWITCH-ASSY-IGNITION
27005-0675
|
$167.49 | ||
|
Available to order. Add to View Price |
|||
|
#27008
KEY-LOCK,BLANK
27008-0596
|
$21.11 | ||
|
Available to order. Add to View Price |
|||
|
#27010
SWITCH,BRAKE
27010-0857
|
$27.94 | ||
|
Available to order. Add to View Price |
|||
|
#27010A
SWITCH,SIDE STAND
27010-0920
|
$112.89 | ||
|
Available to order. Add to View Price |
|||
|
#27016
LOCK-ASSY,SEAT STRIKER
27016-0008
|
$14.37 | ||
|
Available to order. Add to View Price |
|||
|
#27016A
LOCK-ASSY,SEAT
27016-5386
|
$86.88 | ||
|
Available to order. Add to View Price |
|||
|
#27048
SWITCH-ASSY
27048-5221
|
$411.41 | ||
|
Available to order. Add to View Price |
|||
|
#28012
REFLECTOR-REFLEX,FR,SIDE
28012-0001
|
$23.28 | ||
|
Available to order. Add to View Price |
|||
|
#28012A
REFLECTOR-REFLEX
28012-1077
|
$22.42 | ||
|
Available to order. Add to View Price |
|||
|
#28012B
REFLECTOR-REFLEX
28012-1088
|
$21.66 | ||
|
Available to order. Add to View Price |
|||
|
#92075
DAMPER
92075-1564
|
$5.31 | ||
|
Available to order. Add to View Price |
|||
|
#92145
SPRING,REAR BRAKE
92145-1896
|
$4.85 | ||
|
Available to order. Add to View Price |
|||
|
#92152
COLLAR,6X9X10.6
92152-1971
|
$11.53 | ||
|
Available to order. Add to View Price |
|||
|
#92154
BOLT,FLANGED,6X30
92154-1040
|
$2.59 | ||
|
Available to order. Add to View Price |
|||
|
#92200
WASHER,6X20X1.6
92200-0780
|
$1.16 | ||
|
Available to order. Add to View Price |
|||
|
#92210
NUT,FLANGED,5MM
92210-0007
|
$2.62 | ||
|
Available to order. Add to View Price |
|||
|
#130
BOLT-FLANGED,6X14
130BA0614
|
$1.17 | ||
|
Available to order. Add to View Price |
|||
|
#132
BOLT,6X25
132BA0625
Superseded by 92153-1148
|
$0.73 | ||
|
Available to order. Add to View Price |
|||
|
#311
NUT-HEX,5MM
311AB0500
|
$0.43 | ||
|
Available to order. Add to View Price |
|||
