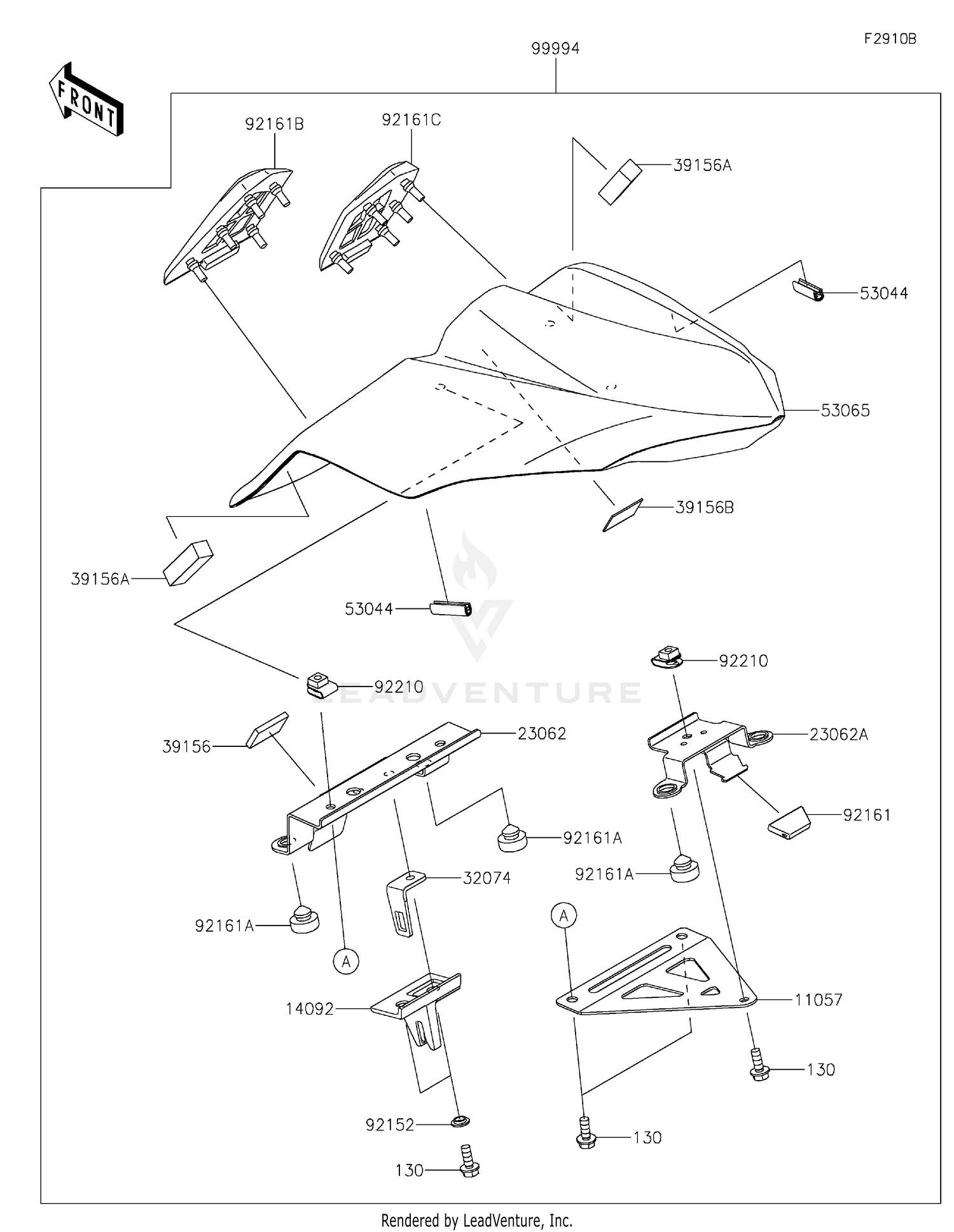

Accessory(pillion Seat Cover) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#11057
BRACKET,SEAT COVER
11057-0808
|
$102.62 | ||
|
Available to order. Add to View Price |
|||
|
#14092
COVER
14092-0248
|
$10.67 | ||
|
Available to order. Add to View Price |
|||
|
#23062
BRACKET-COMP
23062-0907
|
$18.27 | ||
|
Available to order. Add to View Price |
|||
|
#23062A
BRACKET-COMP
23062-0914
|
$7.33 | ||
|
Available to order. Add to View Price |
|||
|
#32074
BRACKET-LOCK
32074-0017
|
$5.42 | ||
|
Available to order. Add to View Price |
|||
|
#39156
PAD,20X30X4
39156-0705
|
$0.41 | ||
|
Available to order. Add to View Price |
|||
|
#39156A
PAD,13X43X12
39156-0978
|
$1.91 | ||
|
Available to order. Add to View Price |
|||
|
#39156B
PAD,20X30X1
39156-2199
|
$2.04 | ||
|
Available to order. Add to View Price |
|||
|
#53044
TRIM,L=30
53044-0001
|
$2.72 | ||
|
Available to order. Add to View Price |
|||
|
#53065
COVER SEAT,M.S.BLACK
53065-0039-660
|
$262.31 | ||
|
Available to order. Add to View Price |
|||
|
#92152
COLLAR
92152-0250
|
$2.89 | ||
|
Available to order. Add to View Price |
|||
|
#92161
DAMPER
92161-0629
|
$6.96 | ||
|
Available to order. Add to View Price |
|||
|
#92161A
DAMPER,10X20X8
92161-0855
|
$4.12 | ||
|
Available to order. Add to View Price |
|||
|
#92161B
DAMPER,COVER SEAT,LH
92161-1855
|
$36.29 | ||
|
Available to order. Add to View Price |
|||
|
#92161C
DAMPER,COVER SEAT,RH
92161-1856
|
$36.29 | ||
|
Available to order. Add to View Price |
|||
|
#92210
NUT,6MM
92210-0277
|
$4.76 | ||
|
Available to order. Add to View Price |
|||
|
#99994
PILLION SEAT COVER,M.S.BLK
99994-0796-660
|
$239.95 | ||
|
Available to order. Add to View Price |
|||
|
#130
BOLT-FLANGED,6X16
130BA0616
|
$1.17 | ||
|
Available to order. Add to View Price |
|||
