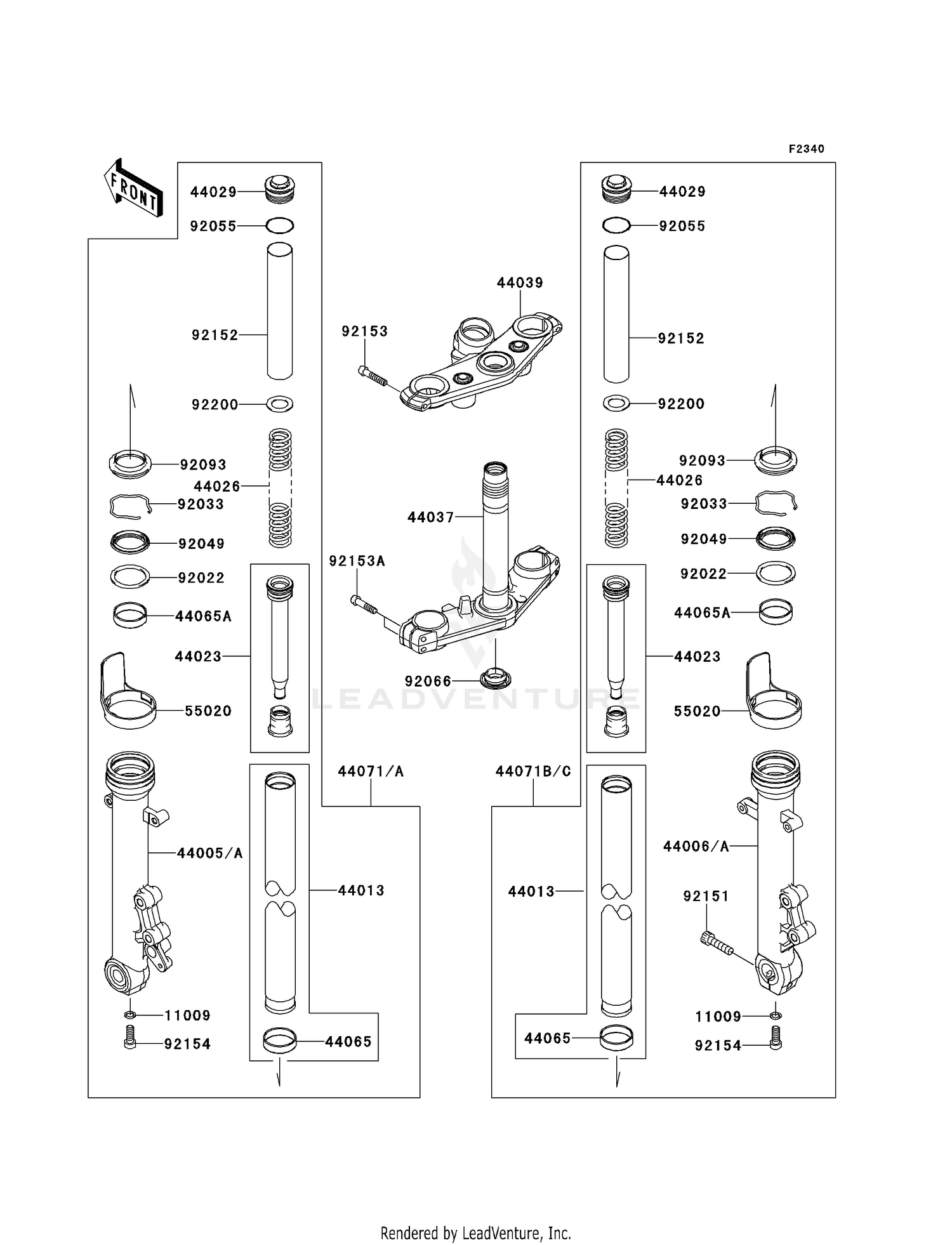

Front Fork Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#11009
GASKET,FORK CYLINDER
11009-1325
Superseded by 44045-057
|
$4.71 | ||
|
Available to order. Add to View Price |
|||
|
#44005A
PIPE-LEFT FORK OUTER,
44005-0066-458
|
$332.29 | ||
|
Available to order. Add to View Price |
|||
|
#44006A
PIPE-RIGHT FORK OUTER
44006-0062-458
|
$332.29 | ||
|
Available to order. Add to View Price |
|||
|
#44013
PIPE-FORK INNER
44013-0055
|
$459.41 | ||
|
Available to order. Add to View Price |
|||
|
#44023
CYLINDER-SET-FORK
44023-0072
|
$114.48 | ||
|
Available to order. Add to View Price |
|||
|
#44026
SPRING-FRONT FORK
44026-0133
|
$62.99 | ||
|
Available to order. Add to View Price |
|||
|
#44029
SEAT-FORK SPRING
44029-0005
|
$42.90 | ||
|
Available to order. Add to View Price |
|||
|
#44037
HOLDER-FORK UNDER
44037-0106
|
$390.16 | ||
|
Available to order. Add to View Price |
|||
|
#44039
HOLDER-FORK UPPER
44039-0089
|
$241.82 | ||
|
Available to order. Add to View Price |
|||
|
#44065
BUSHING-FRONT FORK,INNER TUBE
44065-0014
|
$28.42 | ||
|
Available to order. Add to View Price |
|||
|
#44065A
BUSHING-FRONT FORK,OUTER TUBE
44065-1115
|
$27.60 | ||
|
Available to order. Add to View Price |
|||
|
#44071A
DAMPER-ASSY,FORK,LH,P
44071-0543-458
|
$698.05 | ||
|
Available to order. Add to View Price |
|||
|
#44071C
DAMPER-ASSY,FORK,RH,P
44071-0544-458
|
$698.05 | ||
|
Available to order. Add to View Price |
|||
|
#55020
GUARD,FORK
55020-1691
|
$9.49 | ||
|
Available to order. Add to View Price |
|||
|
#92022
WASHER,FORK OUTER TUBE
92022-1298
|
$8.28 | ||
|
Available to order. Add to View Price |
|||
|
#92033
RING-SNAP
92033-1036
|
$6.30 | ||
|
Available to order. Add to View Price |
|||
|
#92049
SEAL-OIL
92049-0073
|
$21.89 | ||
|
Available to order. Add to View Price |
|||
|
#92055
RING-O
92055-1321
|
$0.72 | ||
|
Available to order. Add to View Price |
|||
|
#92066
PLUG
92066-0032
|
$11.25 | ||
|
Available to order. Add to View Price |
|||
|
#92093
SEAL,FORK OUTER TUBE
92093-1472
|
$22.92 | ||
|
Available to order. Add to View Price |
|||
|
#92151
BOLT,SOCKET,10X40
92151-1357
|
$3.87 | ||
|
Available to order. Add to View Price |
|||
|
#92152
COLLAR,FORK
92152-0767
|
$13.19 | ||
|
Available to order. Add to View Price |
|||
|
#92153
BOLT,SOCKET,8X40
92153-0506
|
$7.31 | ||
|
Available to order. Add to View Price |
|||
|
#92153A
BOLT,SOCKET,8X35
92153-1472
|
$7.12 | ||
|
Available to order. Add to View Price |
|||
|
#92154
BOLT,SOCKET,FORK CYLINDER
92154-0296
|
$3.41 | ||
|
Available to order. Add to View Price |
|||
|
#92200
WASHER
92200-1302
|
$4.72 | ||
|
Available to order. Add to View Price |
|||
