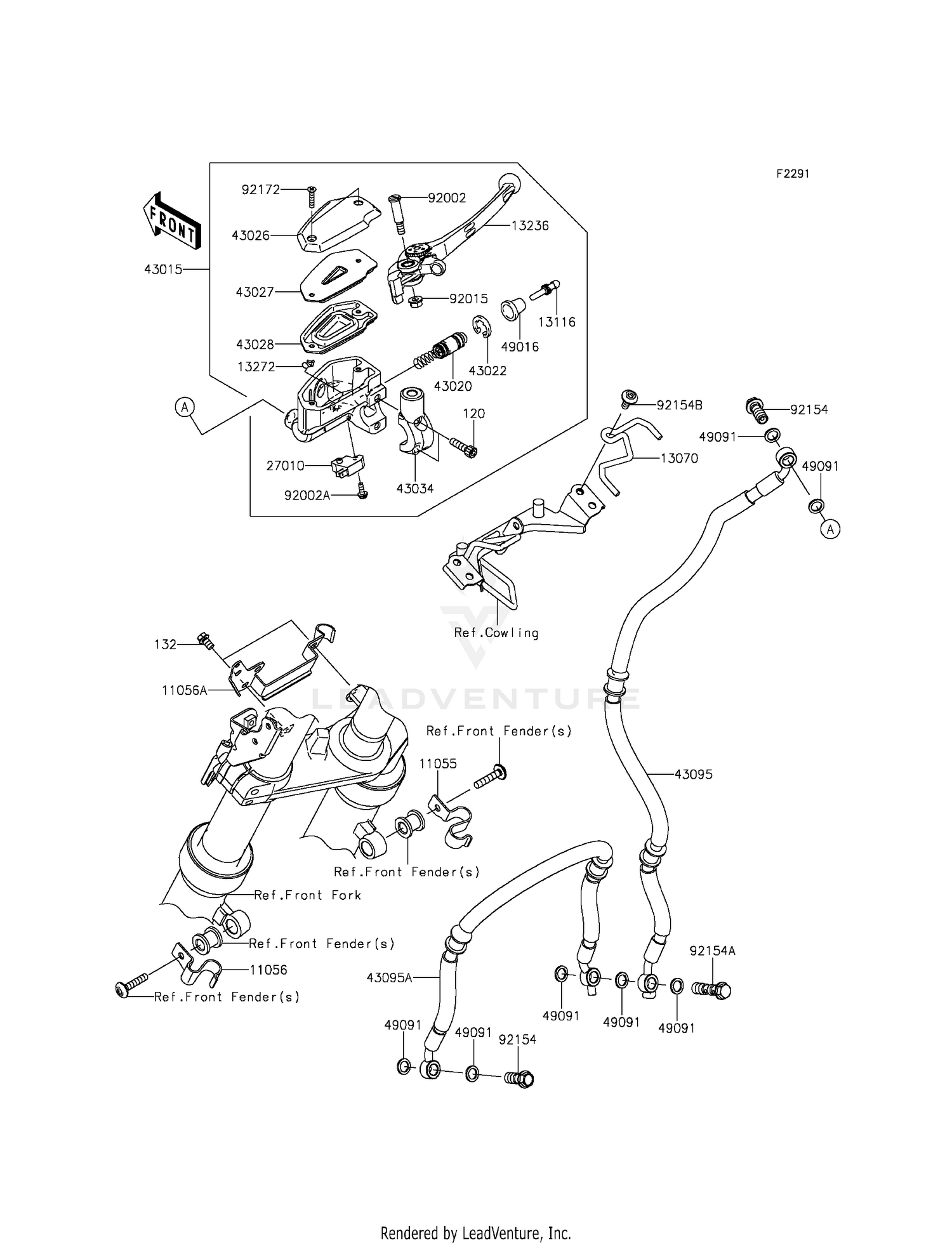

Front Master Cylinder Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#120
BOLT-SOCKET,6X22
120CB0622
|
$5.14 | ||
|
Available to order. Add to View Price |
|||
|
#132
BOLT-FLANGED-SMALL,6X10
132BA0610
|
$1.66 | ||
|
Available to order. Add to View Price |
|||
|
#11055
BRACKET
11055-1116
|
$4.47 | ||
|
Available to order. Add to View Price |
|||
|
#11056
BRACKET
11056-1083
|
$4.74 | ||
|
Available to order. Add to View Price |
|||
|
#11056A
BRACKET
11056-1475
|
$7.71 | ||
|
Available to order. Add to View Price |
|||
|
#13070
GUIDE
13070-0738
|
$6.00 | ||
|
Available to order. Add to View Price |
|||
|
#13116
ROD-PUSH
13116-0032
|
$22.41 | ||
|
Available to order. Add to View Price |
|||
|
#13236
LEVER-COMP,FRONT BRAK
13236-0169
|
$71.73 | ||
|
Available to order. Add to View Price |
|||
|
#13272
PLATE
13272-0573
|
$7.34 | ||
|
Available to order. Add to View Price |
|||
|
#27010
SWITCH,BRAKE
27010-0025
Superseded by 27010-1170
|
$28.14 | ||
|
Available to order. Add to View Price |
|||
|
#43015
CYLINDER-ASSY-MASTER,
43015-0116
|
$392.08 | ||
|
Available to order. Add to View Price |
|||
|
#43020
PISTON-COMP-BRAKE
43020-0015
|
$63.44 | ||
|
Available to order. Add to View Price |
|||
|
#43022
STOPPER-BRAKE,PISTON
43022-1010
|
$4.50 | ||
|
Available to order. Add to View Price |
|||
|
#43026
CAP-BRAKE
43026-0019
|
$44.42 | ||
|
Available to order. Add to View Price |
|||
|
#43027
PLATE-DIAPHRAGM
43027-0008
|
$8.39 | ||
|
Available to order. Add to View Price |
|||
|
#43028
DIAPHRAGM
43028-0015
|
$35.06 | ||
|
Available to order. Add to View Price |
|||
|
#43034
HOLDER-BRAKE,MASTER CYLINDER
43034-0049
|
$43.32 | ||
|
Available to order. Add to View Price |
|||
|
#43095
HOSE-BRAKE,FR,L=755
43095-0625
|
$76.03 | ||
|
Available to order. Add to View Price |
|||
|
#43095A
HOSE-BRAKE,FR,L=545
43095-0626
|
$71.18 | ||
|
Available to order. Add to View Price |
|||
|
#49016
COVER-SEAL,MASTER CYLINDER
49016-1044
|
$8.38 | ||
|
Available to order. Add to View Price |
|||
|
#49091
WASHER-SEAL,10.1X14.5X1.5
49091-0001
|
$2.09 | ||
|
Available to order. Add to View Price |
|||
|
#92002
BOLT,LEVER SET,BLACK
92002-1322
|
$11.30 | ||
|
Available to order. Add to View Price |
|||
|
#92002A
BOLT,SCREW,4X12
92002-1323
|
$3.80 | ||
|
Available to order. Add to View Price |
|||
|
#92015
NUT,FLANGED,6MM
92015-1528
|
$5.34 | ||
|
Available to order. Add to View Price |
|||
|
#92154
BOLT,FLANGED,10X23
92154-0732
|
$4.89 | ||
|
Available to order. Add to View Price |
|||
|
#92154A
BOLT,FLANGED,10X37
92154-0733
|
$8.85 | ||
|
Available to order. Add to View Price |
|||
|
#92154B
BOLT,SOCKET,6X14
92154-0907
|
$1.92 | ||
|
Available to order. Add to View Price |
|||
|
#92172
SCREW,4X20
92172-0320
|
$3.78 | ||
|
Available to order. Add to View Price |
|||
