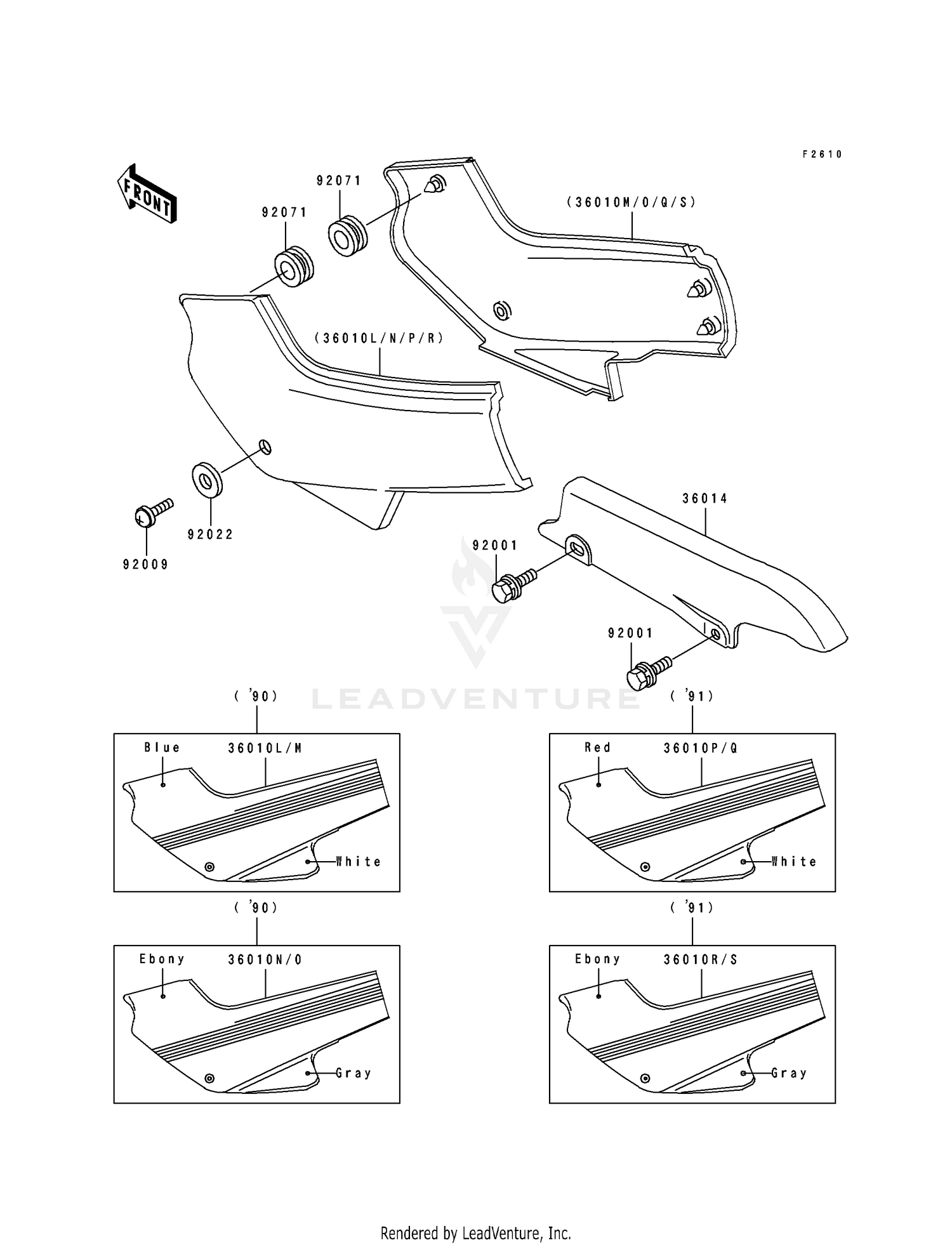

Side Covers (ex500-a4/a5) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#36010P
COVER-SIDE,LH,RED/WHI
36010-5319-GP
|
$224.91 | ||
|
Available to order. Add to View Price |
|||
|
#36010Q
COVER-SIDE,RH,RED/WHI
36010-5320-GP
|
$254.44 | ||
|
Available to order. Add to View Price |
|||
|
#36010R
COVER-SIDE,LH,EBONY/G
36010-5414-FG
|
$224.91 | ||
|
Available to order. Add to View Price |
|||
|
#36010S
COVER-SIDE,RH,EBONY/G
36010-5415-FG
|
$234.00 | ||
|
Available to order. Add to View Price |
|||
|
#36014
CASE-CHAIN
36014-1144
|
$83.60 | ||
|
Available to order. Add to View Price |
|||
|
#92001
BOLT,6X14,BLACK
92001-1847
|
$3.84 | ||
|
Available to order. Add to View Price |
|||
|
#92009
SCREW,6X14
92009-1288
Superseded by 92009-1662
|
$3.80 | ||
|
Available to order. Add to View Price |
|||
|
#92022
WASHER,6.5X16X1.0
92022-1654
|
$3.53 | ||
|
Available to order. Add to View Price |
|||
|
#92071
GROMMET
92071-056
|
$4.13 | ||
|
Available to order. Add to View Price |
|||
