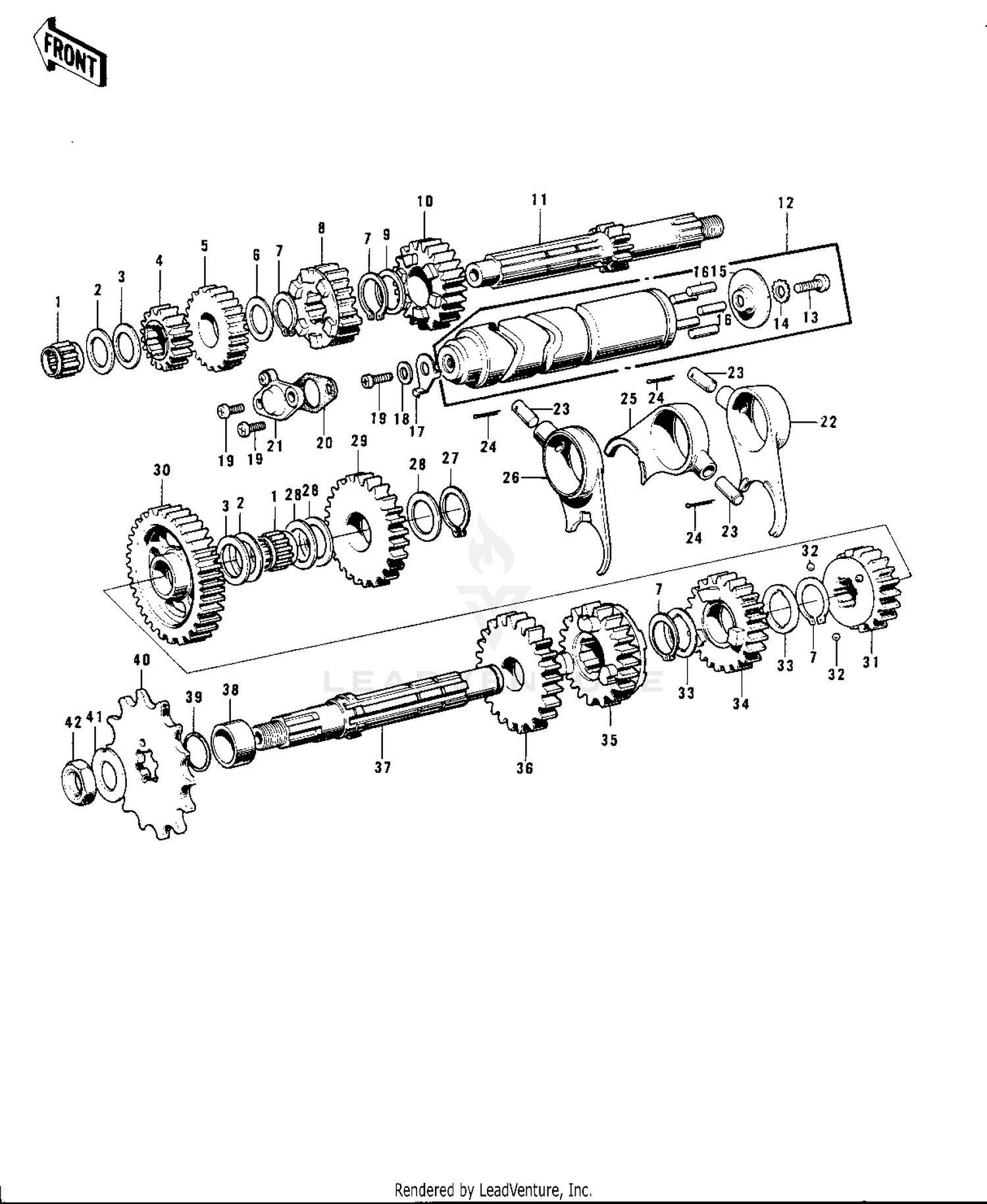

Transmission/change Drum Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
BEARING-NEEDLE
92046-026
|
$23.12 | ||
|
Available to order. Add to View Price |
|||
|
#2
WASHER-THRUST
92022-170
|
$8.96 | ||
|
Available to order. Add to View Price |
|||
|
#3
WASHER-THRUST
92022-171
|
$5.03 | ||
|
Available to order. Add to View Price |
|||
|
#4
2ND GEAR-DRIVE
13130-024
|
$47.07 | ||
|
Available to order. Add to View Price |
|||
|
#5
4TH GEAR-DRIVE
13134-008
|
$41.16 | ||
|
Available to order. Add to View Price |
|||
|
#6
WASHER-PLAIN
92022-181
|
$7.08 | ||
|
Available to order. Add to View Price |
|||
|
#7
CIRCLIP,21MM
480J2100
|
$4.87 | ||
|
Available to order. Add to View Price |
|||
|
#8
3RD GEAR-DRIVE
13132-022
|
$106.73 | ||
|
Available to order. Add to View Price |
|||
|
#9
WASHER 22MM
92022-106
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
|
#10
TOP GEAR-DRIVE
13136-031
|
$41.16 | ||
|
Available to order. Add to View Price |
|||
|
#11
SHAFT-DRIVE
13127-029
|
$117.37 | ||
|
Available to order. Add to View Price |
|||
|
#12
DRUM ASSY-GEAR CHANGE
13239-002
|
$139.33 | ||
|
Available to order. Add to View Price |
|||
|
#13
SCREW-PAN-CROS,6X14
220B0614
Superseded by 220AA0614
|
$1.44 | ||
|
Available to order. Add to View Price |
|||
|
#14
WASHER LOCK 6MM
464H0600
|
$0.67 | ||
|
Available to order. Add to View Price |
|||
|
#15
PLATE-CHANGE DRUM PIN
13142-009
|
$4.24 | ||
|
Available to order. Add to View Price |
|||
|
#16
PIN,DOWEL,4X15.8
92042-014
|
$0.43 | ||
|
Available to order. Add to View Price |
|||
|
#17
ROTOR,NEUTRAL INDICTR
21007-1003
|
$7.36 | ||
|
Available to order. Add to View Price |
|||
|
#18
WASHER-PLAIN-SMALL
410B0600
Superseded by 410AA0600
|
$1.28 | ||
|
Available to order. Add to View Price |
|||
|
#19
SCREW-PAN-CROS,6X16
220B0616
Superseded by 220AA0616
|
$2.95 | ||
|
Available to order. Add to View Price |
|||
|
#20
GASKET NEUTRAL SWITCH
13146-002
|
$4.21 | ||
|
Available to order. Add to View Price |
|||
|
#21
SWITCH,NEUTRAL
13151-1001
|
$13.99 | ||
|
Available to order. Add to View Price |
|||
|
#22
FORK-SELECTOR,LOW
13140-050
|
$53.89 | ||
|
Available to order. Add to View Price |
|||
|
#23
PIN SELECT FORK GUIDE
92043-005
|
$5.23 | ||
|
Available to order. Add to View Price |
|||
|
#24
PIN-COTTER,3.0X20
550D3020
Superseded by 550AA3020
|
$1.73 | ||
|
Available to order. Add to View Price |
|||
|
#25
FORK-SELECTOR,TOP
13140-049
|
$57.69 | ||
|
Available to order. Add to View Price |
|||
|
#26
FORK-SELECTOR
13140-030
|
$88.87 | ||
|
Available to order. Add to View Price |
|||
|
#27
CIRCLIP-TYPE-C,15MM
480J1500
|
$2.28 | ||
|
Available to order. Add to View Price |
|||
|
#28
WASHER,16.5X28X0.5
92022-169
|
$4.84 | ||
|
Available to order. Add to View Price |
|||
|
#29
IDLE GEAR-KICKSTARTER
13073-009
|
$95.60 | ||
|
Available to order. Add to View Price |
|||
|
#30
LOW GEAR,OUTPUT SHAFT
13129-051
|
$69.17 | ||
|
Available to order. Add to View Price |
|||
|
#31
TOP GEAR-OUTPUT
13137-016
|
$48.06 | ||
|
Available to order. Add to View Price |
|||
|
#32
BALL-STEEL,5/32
600A0500
|
$0.80 | ||
|
Available to order. Add to View Price |
|||
|
#33
WASHER-LOCK
92024-031
|
$6.21 | ||
|
Available to order. Add to View Price |
|||
|
#34
3RD GEAR-OUTPUT
13133-021
|
$58.94 | ||
|
Available to order. Add to View Price |
|||
|
#35
4TH GEAR-OUTPUT
13135-012
|
$71.81 | ||
|
Available to order. Add to View Price |
|||
|
#36
2ND GEAR-OUTPUT
13131-029
|
$102.61 | ||
|
Available to order. Add to View Price |
|||
|
#37
SHAFT-OUTPUT
13128-028
|
$107.54 | ||
|
Available to order. Add to View Price |
|||
|
#38
COLLAR-ENG SPROCKET
92027-180
|
$39.43 | ||
|
Available to order. Add to View Price |
|||
|
#39
RING-O,17.5X1.5
92055-022
|
$6.02 | ||
|
Available to order. Add to View Price |
|||
|
#40
ENGINE SPROCKET SET
13249-002
|
$26.58 | ||
|
Available to order. Add to View Price |
|||
|
#40
ENG SPROCKET ASY,13T
13249-001
|
$60.08 | ||
|
Available to order. Add to View Price |
|||
|
#40
ENG SPROCKET,ASY,15T
13249-003
|
$51.12 | ||
|
Available to order. Add to View Price |
|||
|
#41
WASHER LOCK 12MM
92024-002
|
$5.06 | ||
|
Available to order. Add to View Price |
|||
|
#42
NUT,12MM
92016-024
|
$5.67 | ||
|
Available to order. Add to View Price |
|||
