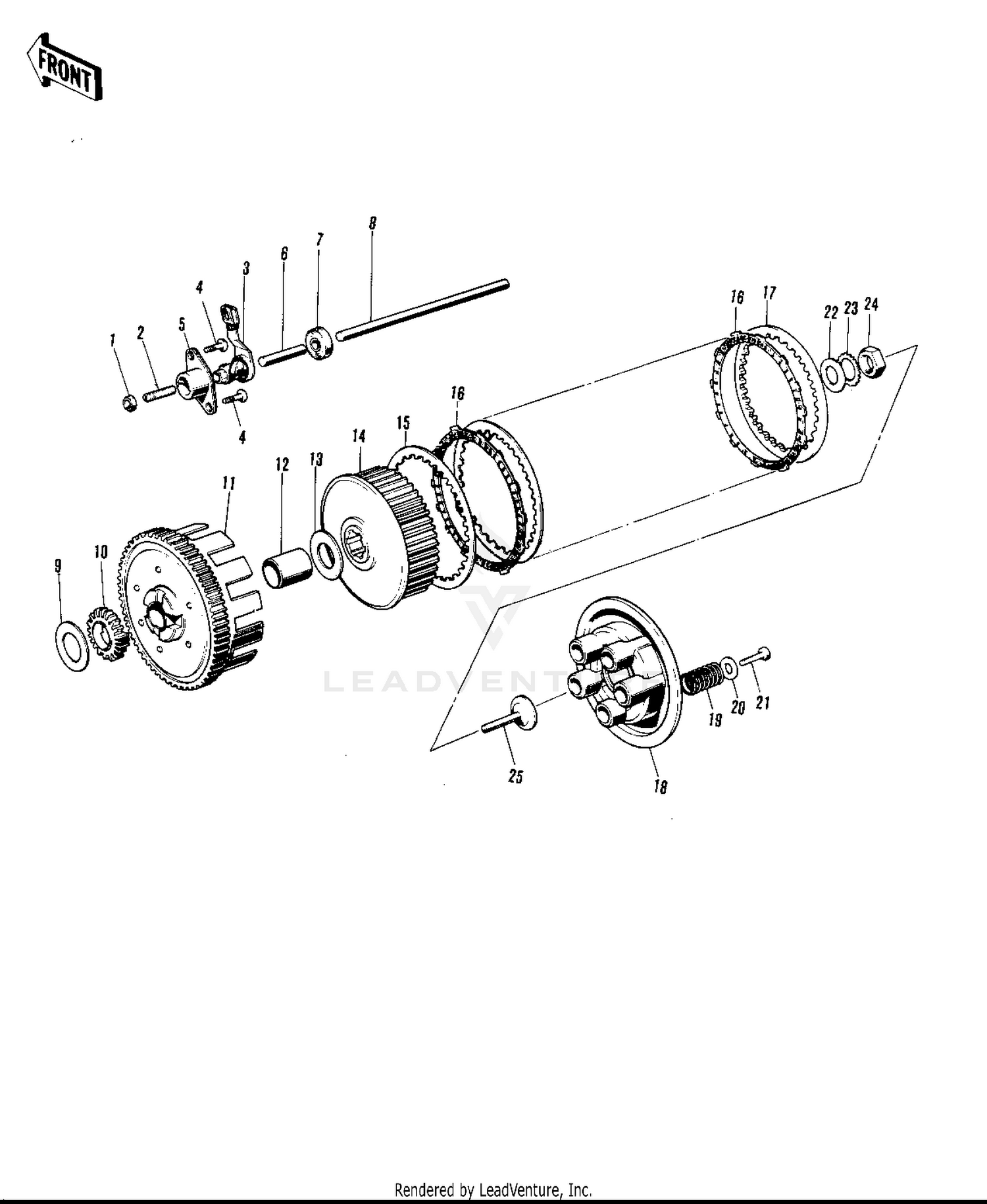

Clutch Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
NUT-HEX,6MM
311B0600
Superseded by 311AA0600
|
$0.93 | ||
|
Available to order. Add to View Price |
|||
|
#2
SCREW SLOTTED
291Z0625
|
$5.58 | ||
|
Available to order. Add to View Price |
|||
|
#3
RELEASE INNER-CLUTCH
13102-011
|
$38.71 | ||
|
Available to order. Add to View Price |
|||
|
#4
SCREW-PAN-CROS,6X14
220B0614
Superseded by 220AA0614
|
$1.44 | ||
|
Available to order. Add to View Price |
|||
|
#5
RELEASE OUTER-CLUTCH
13118-006
|
$28.09 | ||
|
Available to order. Add to View Price |
|||
|
#6
ROD-CLUTCH PUSH,SHORT
13116-018
|
$12.22 | ||
|
Available to order. Add to View Price |
|||
|
#7
OIL SEAL TB7246
92052-010
|
$20.22 | ||
|
Available to order. Add to View Price |
|||
|
#8
ROD-CLUTCH PUSH,LONG
13116-017
|
$14.02 | ||
|
Available to order. Add to View Price |
|||
|
#9
WASHER,20.5X34X1.4
92022-168
|
$9.18 | ||
|
Available to order. Add to View Price |
|||
|
#10
PINION-KICKSTARTER
13075-006
|
$62.06 | ||
|
Available to order. Add to View Price |
|||
|
#11-12
CLUTCH-ASSY
13081-058
|
$239.54 | ||
|
Available to order. Add to View Price |
|||
|
#11
HOUSING-COMP-CLUTCH
13095-1024
|
$404.93 | ||
|
Available to order. Add to View Price |
|||
|
#12
BUSH-CLUTCH
92028-014
|
$20.85 | ||
|
Available to order. Add to View Price |
|||
|
#13
WASHER,20.5X34X1.4
92022-168
|
$9.18 | ||
|
Unavailable |
|||
|
#14
HUB,CLUTCH
13087-032
|
$64.91 | ||
|
Available to order. Add to View Price |
|||
|
#15
PLATE CLUTCH STEEL
13089-003
|
$13.71 | ||
|
Available to order. Add to View Price |
|||
|
#16
PLATE,FRICTION
13088-1104
|
$17.84 | ||
|
Available to order. Add to View Price |
|||
|
#17
PLATE CLUTCH OUTER
13090-002
|
$6.09 | ||
|
Available to order. Add to View Price |
|||
|
#18
PLATE-CLUTCH SPRING
13187-004
|
$39.82 | ||
|
Available to order. Add to View Price |
|||
|
#19
SPRING-CLUTCH
92081-080
|
$14.79 | ||
|
Available to order. Add to View Price |
|||
|
#20
WASHER-PLAIN,5MM
92022-167
|
$2.68 | ||
|
Available to order. Add to View Price |
|||
|
#21
BOLT
110B0518
|
$2.50 | ||
|
Available to order. Add to View Price |
|||
|
#22
WASHER-LOCK,14MM
92024-046
|
$4.63 | ||
|
Available to order. Add to View Price |
|||
|
#22
WASHER-LOCK,14MM
92024-046
|
$4.63 | ||
|
Unavailable |
|||
|
#23
WASHER-LOCK,14MM
463G1400
|
$0.88 | ||
|
Available to order. Add to View Price |
|||
|
#24
NUT,14MM
315B1400
Superseded by 315AA1400
|
$2.11 | ||
|
Available to order. Add to View Price |
|||
|
#25
PUSHER-CLTCH SPRG PLT
13116-016
|
$20.33 | ||
|
Available to order. Add to View Price |
|||
