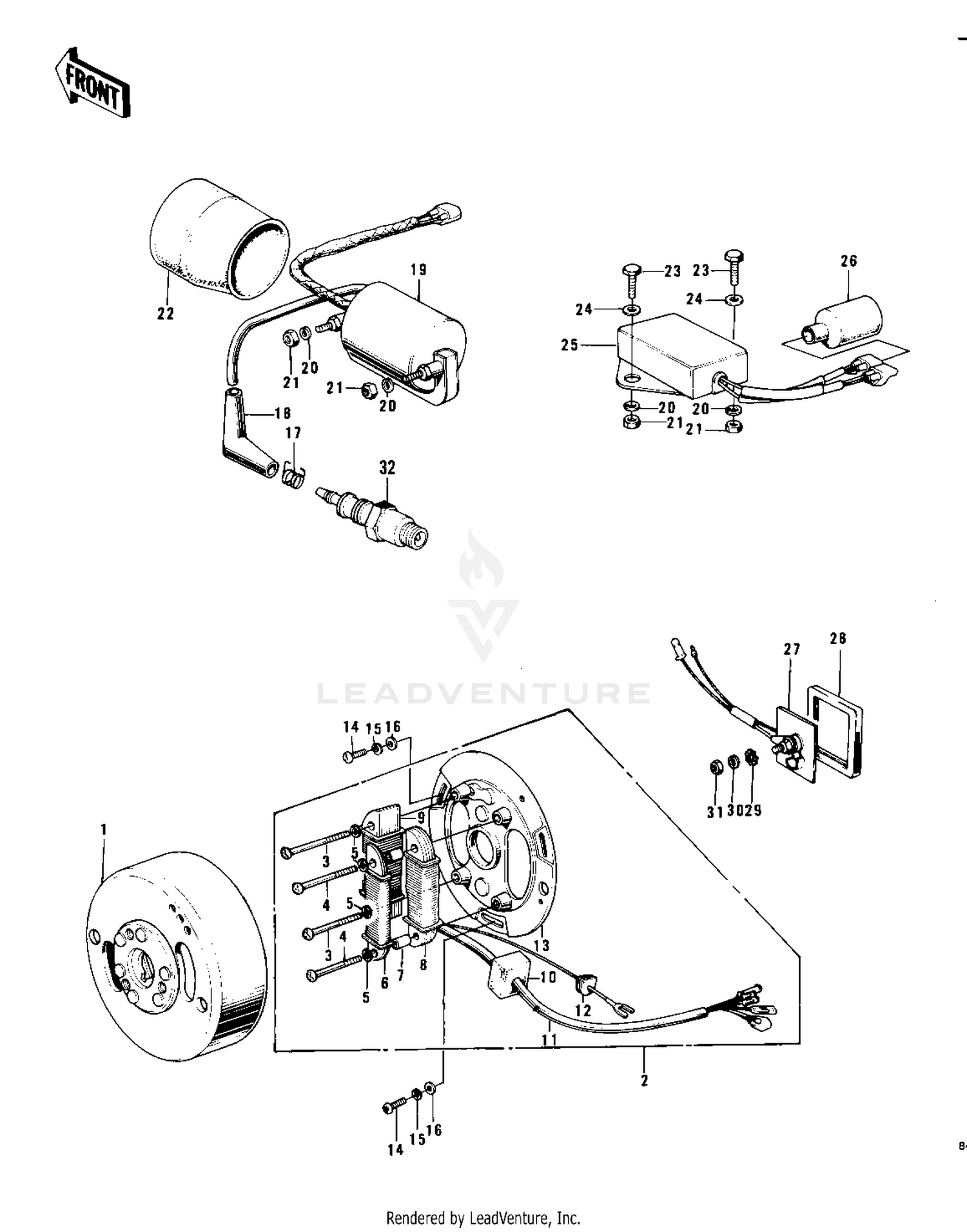

Ignition/generator/rectifier ('74-'75 F7 Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
FLYWEEL
21050-015
|
$477.13 | ||
|
Available to order. Add to View Price |
|||
|
#2
STATOR
21003-011
|
$404.68 | ||
|
Available to order. Add to View Price |
|||
|
#3
SCREW PAN HEAD 4X30
220E0430
|
$3.87 | ||
|
Available to order. Add to View Price |
|||
|
#3
SCREW PAN HEAD 4X30
220E0430
|
$3.87 | ||
|
Unavailable |
|||
|
#4
SCREW-PAN HEAD,4X35
220E0435A
|
$8.26 | ||
|
Available to order. Add to View Price |
|||
|
#4
SCREW-PAN HEAD,4X35
220E0435A
|
$8.26 | ||
|
Unavailable |
|||
|
#5
WASHER SPRING 4MM
461F0400
|
$0.46 | ||
|
Available to order. Add to View Price |
|||
|
#6
COIL-PULSER
21157-001
|
$178.75 | ||
|
Available to order. Add to View Price |
|||
|
#7
COLLAR
21033-002
|
$3.00 | ||
|
Available to order. Add to View Price |
|||
|
#8
COIL-PRIMARY
21049-011
|
$125.64 | ||
|
Available to order. Add to View Price |
|||
|
#9
COIL-LIGHTING
21047-012
|
$97.12 | ||
|
Available to order. Add to View Price |
|||
|
#10
GROMMET-WIRING HARN
92071-050
|
$7.37 | ||
|
Available to order. Add to View Price |
|||
|
#11
WIRING HARNESS-MAGNET
21029-020
|
$34.61 | ||
|
Available to order. Add to View Price |
|||
|
#12
GROMMET WIRING HARN C
21017-005
|
$3.52 | ||
|
Available to order. Add to View Price |
|||
|
#13
BASE-MAGNETO
21048-013
|
$52.45 | ||
|
Available to order. Add to View Price |
|||
|
#14
SCREW-PAN-CROS
220B0520
Superseded by 220AA0520
|
$0.67 | ||
|
Available to order. Add to View Price |
|||
|
#15
WASHER-SPRING,5MM
461F0500
Superseded by 461DA0500
|
$0.69 | ||
|
Available to order. Add to View Price |
|||
|
#16
WASHER-PLAIN-SMALL
410B0500
Superseded by 410AA0500
|
$0.46 | ||
|
Available to order. Add to View Price |
|||
|
#17
SPRING-SPARK PLUG CAP
92101-001
|
$1.66 | ||
|
Available to order. Add to View Price |
|||
|
#18
CAP SPARK PLUG
21130-009
|
$21.31 | ||
|
Available to order. Add to View Price |
|||
|
#19
COIL-IGNITION
21121-039
|
$259.27 | ||
|
Available to order. Add to View Price |
|||
|
#20
WASHER-SPRING,6MM
461F0600
Superseded by 461DA0600
|
$0.69 | ||
|
Available to order. Add to View Price |
|||
|
#21
NUT-HEX,6MM
311B0600
Superseded by 311AA0600
|
$0.93 | ||
|
Available to order. Add to View Price |
|||
|
#22
RUBBER CAP-COIL
92073-016
|
$7.22 | ||
|
Available to order. Add to View Price |
|||
|
#23
BOLT-UPSET
112G0618
Superseded by 112BA0618
|
$1.01 | ||
|
Available to order. Add to View Price |
|||
|
#24
WASHER-PLAIN-SMALL
410B0600
Superseded by 410AA0600
|
$1.28 | ||
|
Available to order. Add to View Price |
|||
|
#25
IGNITION UNIT
21119-013
|
$574.57 | ||
|
Available to order. Add to View Price |
|||
|
#26
COVER WIRING HARNESS
26009-003
|
$3.59 | ||
|
Available to order. Add to View Price |
|||
|
#27
RECTIFIER
21061-5001
|
$28.99 | ||
|
Available to order. Add to View Price |
|||
|
#28
MAT-RECTIFIER
32103-020
|
$3.39 | ||
|
Available to order. Add to View Price |
|||
|
#29
WASHER-TOOTHED
464H0500
Superseded by 464EA0500
|
$1.01 | ||
|
Available to order. Add to View Price |
|||
|
#30
WASHER-SPRING,5MM
461F0500
Superseded by 461DA0500
|
$0.69 | ||
|
Unavailable |
|||
|
#31
NUT-HEX,5MM
311B0500
Superseded by 311AA0500
|
$0.46 | ||
|
Available to order. Add to View Price |
|||
|
#32
SPARK PLUG B9HS
B9HS
|
$3.50 | ||
|
Unavailable |
|||
|
#32
SPARK PLUG B9HS
B9HS
|
$3.50 | ||
|
Unavailable |
|||
|
#32
SPARK PLUG B9HS
B9HS
|
$3.50 | ||
|
Unavailable |
|||
|
#32
SPARK PLUG B9HS
B9HS
|
$3.50 | ||
|
Unavailable |
|||
