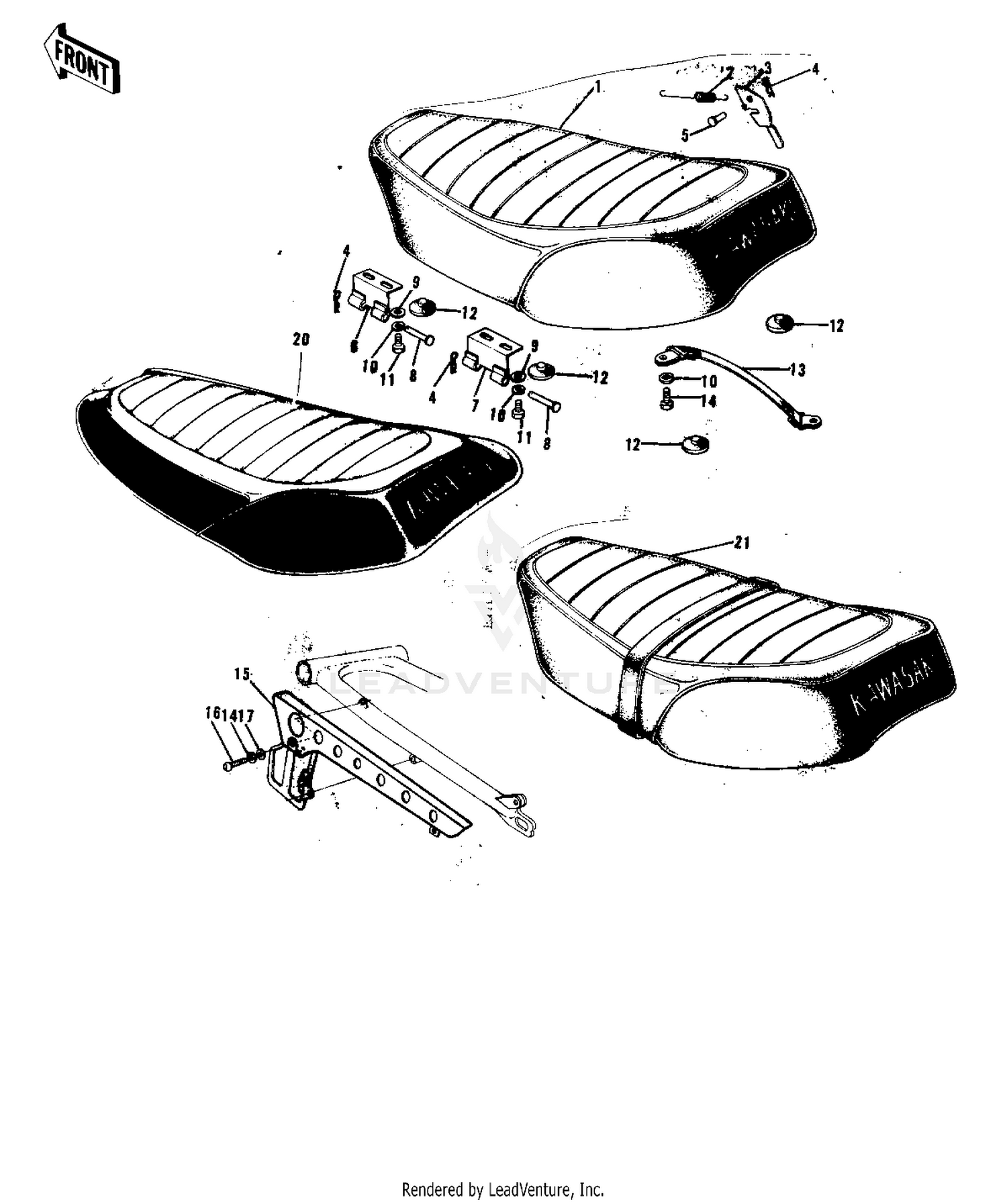

Seat/chain Cover ('72-'73 F9/f9-a 350) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#
SEAT ASSY,DUAL
53002-041
|
$181.79 | ||
|
Available to order. Add to View Price |
|||
|
#2
SPRING,HOOK
53012-013
|
$18.47 | ||
|
Available to order. Add to View Price |
|||
|
#3
HOOK
53008-008
|
$3.08 | ||
|
Available to order. Add to View Price |
|||
|
#4
COTTER PIN
92041-003
|
$5.54 | ||
|
Available to order. Add to View Price |
|||
|
#5
PIN DUAL SEAT PIVOT
53011-001
|
$5.41 | ||
|
Available to order. Add to View Price |
|||
|
#6
HINGE
53009-015
|
$4.59 | ||
|
Available to order. Add to View Price |
|||
|
#7
HINGE
53009-016
|
$10.53 | ||
|
Available to order. Add to View Price |
|||
|
#8
PIN
53011-002
|
$5.77 | ||
|
Available to order. Add to View Price |
|||
|
#9
WASHER-PLAIN,6MM
411B0600
Superseded by 411AA0600
|
$2.84 | ||
|
Available to order. Add to View Price |
|||
|
#10
WASHER-SPRING,6MM
461F0600
Superseded by 461DA0600
|
$0.69 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT-UPSET
112B0614
Superseded by 112AA0614
|
$0.48 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT-UPSET
112B0614
Superseded by 112AA0614
|
$0.48 | ||
|
Unavailable |
|||
|
#12
DAMPER RUBB DUAL SEAT
92075-023
|
$4.76 | ||
|
Available to order. Add to View Price |
|||
|
#13
BAND-SEAT STOPPER
92072-038
|
$6.28 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT-UPSET,6X10
112G0610
Superseded by 112BA0610
|
$0.58 | ||
|
Available to order. Add to View Price |
|||
|
#14
BOLT-UPSET,6X10
112G0610
Superseded by 112BA0610
|
$0.58 | ||
|
Unavailable |
|||
|
#15
CASE-CHAIN
36014-030-21
|
$74.45 | ||
|
Available to order. Add to View Price |
|||
|
#16
SCREW-PAN-CROS,6X14
220B0614
Superseded by 220AA0614
|
$1.44 | ||
|
Available to order. Add to View Price |
|||
|
#17
WASHER,6.5X20X1.6
92022-125
Superseded by 92200-0283
|
$1.36 | ||
|
Available to order. Add to View Price |
|||
|
#20
COVER-DUAL SEAT
53003-003
|
$51.57 | ||
|
Available to order. Add to View Price |
|||
|
#
DUAL SEAT ASSY.
53002-020
|
$148.56 | ||
|
Available to order. Add to View Price |
|||
|
#21
UNAVAILABLE IN PRICE BOOK
53002-044
|
|||
|
Unavailable |
|||
