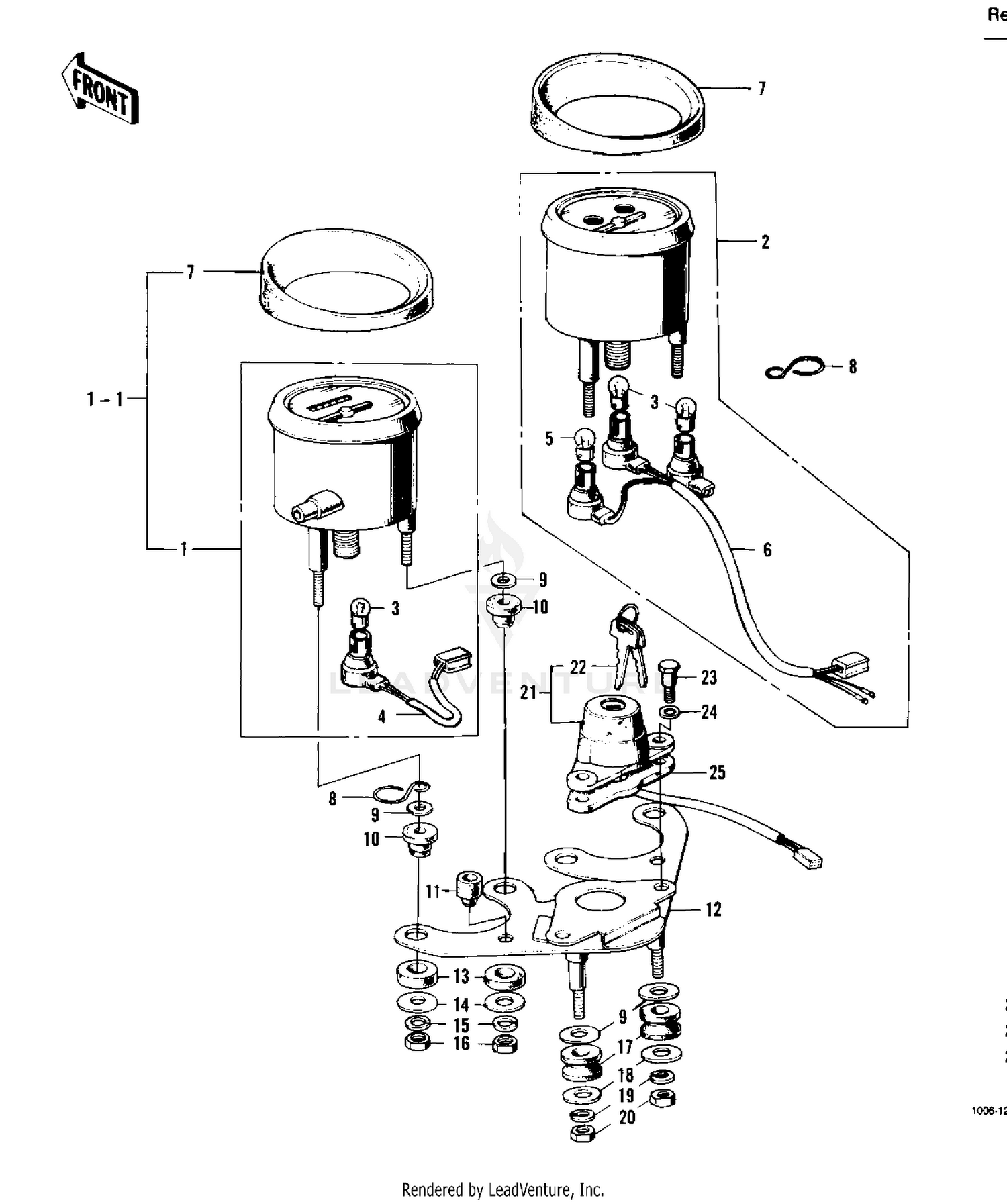

Meters/ignition Switch (f9) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SPEEDOMETER ASSY,MPH
25001-045
|
$211.73 | ||
|
Available to order. Add to View Price |
|||
|
#1-1
SPEEDOMETER ASSY,MPH
25001-045
|
$211.73 | ||
|
Unavailable |
|||
|
#1
UNAVAILABLE IN PRICE BOOK
25005-044
|
|||
|
Unavailable |
|||
|
#2
TACHOMETER ASSY
25015-009
|
$99.09 | ||
|
Available to order. Add to View Price |
|||
|
#3
BULB-6V 3W
92069-053
|
$4.05 | ||
|
Available to order. Add to View Price |
|||
|
#4
SOCKET-SPEEDOMETER
25011-015
|
$21.17 | ||
|
Available to order. Add to View Price |
|||
|
#5
BULB 6V 1.5W
92069-024
|
$5.14 | ||
|
Available to order. Add to View Price |
|||
|
#6
SOCKET-TACHOMETER
25011-016
|
$26.40 | ||
|
Available to order. Add to View Price |
|||
|
#7
COVER-SPEEDOMETER
25012-003
|
$22.40 | ||
|
Available to order. Add to View Price |
|||
|
#8
CLAMP CABLE
25022-002
|
$5.37 | ||
|
Available to order. Add to View Price |
|||
|
#9
WASHER-PLAIN,6MM
411B0600
Superseded by 411AA0600
|
$2.84 | ||
|
Available to order. Add to View Price |
|||
|
#10
DAMPER RUBBER
92075-065
|
$1.56 | ||
|
Available to order. Add to View Price |
|||
|
#11
DAMPER
92075-035
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
|
#12
BRACKET METER
25008-015
|
$23.40 | ||
|
Available to order. Add to View Price |
|||
|
#13
DAMPER RUBBER
92075-066
|
$1.27 | ||
|
Available to order. Add to View Price |
|||
|
#14
WASHER,5.5X20X1.2
92022-104
Superseded by 92022-1405
|
$4.17 | ||
|
Available to order. Add to View Price |
|||
|
#15
WASHER-SPRING,5MM
461F0500
Superseded by 461DA0500
|
$0.69 | ||
|
Available to order. Add to View Price |
|||
|
#16
NUT-HEX,5MM
311B0500
Superseded by 311AA0500
|
$0.46 | ||
|
Available to order. Add to View Price |
|||
|
#17
DAMPER RUBB SPEEDMETR
92075-024
|
$4.25 | ||
|
Available to order. Add to View Price |
|||
|
#18
WASHER,6.5X20X1.6
92022-125
Superseded by 92200-0283
|
$1.36 | ||
|
Available to order. Add to View Price |
|||
|
#19
WASHER-SPRING,6MM
461F0600
Superseded by 461DA0600
|
$0.69 | ||
|
Available to order. Add to View Price |
|||
|
#20
NUT-HEX,6MM
311B0600
Superseded by 311AA0600
|
$0.93 | ||
|
Available to order. Add to View Price |
|||
|
#21
SWITCH ASSY,IGNITION
27005-068
|
$113.27 | ||
|
Available to order. Add to View Price |
|||
|
#21
SWITCH ASSY,IGNITION
27005-068
|
$113.27 | ||
|
Unavailable |
|||
|
#22
KEY SET,#155
27008-042-55
|
$9.28 | ||
|
Available to order. Add to View Price |
|||
|
#22
KEY SET,#156
27008-042-56
|
$9.28 | ||
|
Available to order. Add to View Price |
|||
|
#22
KEY SET,#157
27008-042-57
|
$9.28 | ||
|
Available to order. Add to View Price |
|||
|
#22
KEY SET,#158
27008-042-58
|
$9.70 | ||
|
Available to order. Add to View Price |
|||
|
#22
KEY SET,#159
27008-042-59
|
$8.98 | ||
|
Available to order. Add to View Price |
|||
|
#22
KEY SET,#160
27008-042-60
|
$8.89 | ||
|
Available to order. Add to View Price |
|||
|
#22
KEY SET,#161
27008-042-61
|
$8.89 | ||
|
Available to order. Add to View Price |
|||
|
#22
KEY SET,#162
27008-042-62
|
$9.51 | ||
|
Available to order. Add to View Price |
|||
|
#22
KEY SET,#163
27008-042-63
|
$7.72 | ||
|
Available to order. Add to View Price |
|||
|
#22
KEY SET,#164
27008-042-64
|
$9.51 | ||
|
Available to order. Add to View Price |
|||
|
#23
BOLT-HEX HEAD,6MM
92007-026
|
$10.48 | ||
|
Available to order. Add to View Price |
|||
|
#24
WASHER-PLAIN-SMALL,8MM
410B0800
Superseded by 410AA0800
|
$0.93 | ||
|
Available to order. Add to View Price |
|||
|
#25
DAMPER RUBBER
92075-077
|
$8.92 | ||
|
Available to order. Add to View Price |
|||
