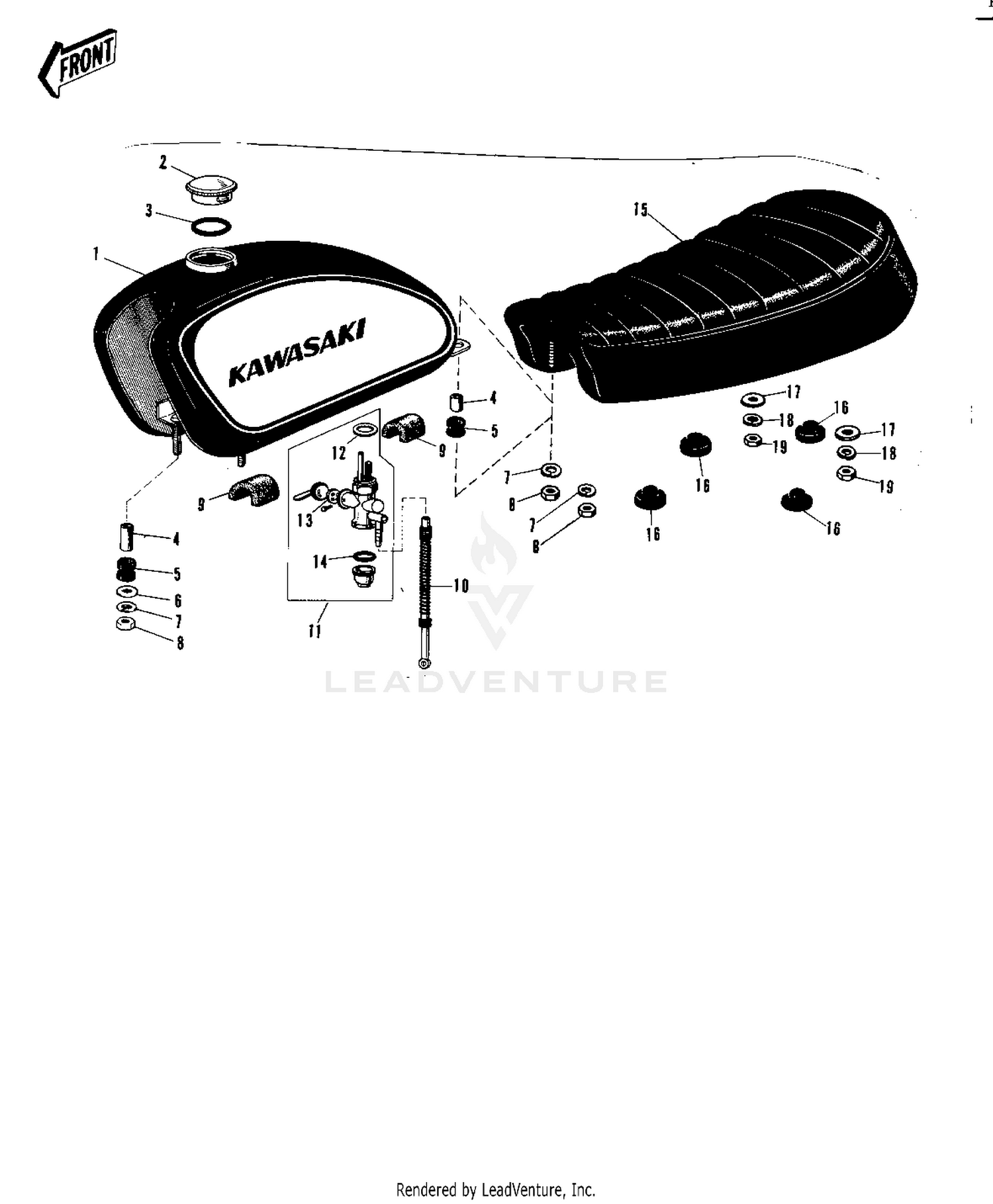

1971 Kawasaki G31M FUEL TANK/SEAT OEM Parts Diagram
Accessory
+
Air & Fuel
+
Body, Fairing & Fender
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
TANK-FUEL,LIME GREEN
51001-062-33
|
$168.38 | ||
|
Available to order. Add to View Price |
|||
|
#1
TANK-FUEL,L.GREEN
51001-062-54
|
$170.38 | ||
|
Available to order. Add to View Price |
|||
|
#2
CAP,FUEL TANK LOCKING
51048-006
|
$50.73 | ||
|
Available to order. Add to View Price |
|||
|
#3
GASKET FUEL TANK CAP
51059-003
|
$6.18 | ||
|
Unavailable |
|||
|
#4
SPACER FUEL TANK MONT
51065-001
|
$3.49 | ||
|
Available to order. Add to View Price |
|||
|
#5
DAMPER RUBB TANK FRNT
92075-019
|
$3.15 | ||
|
Available to order. Add to View Price |
|||
|
#6
WASHER,8X26X2.3
92022-1564
|
$4.01 | ||
|
Available to order. Add to View Price |
|||
|
#7
WASHER-SPRING,8MM
461F0800
Superseded by 461DA0800
|
$0.40 | ||
|
Available to order. Add to View Price |
|||
|
#9
MAT FUEL TANK
51067-006
|
$1.67 | ||
|
Available to order. Add to View Price |
|||
|
#10
PIPE-FUEL
51044-031
|
$13.14 | ||
|
Available to order. Add to View Price |
|||
|
#11
TAP-ASSY,FUEL
51023-1123
|
$67.48 | ||
|
Unavailable |
|||
|
#12
GASKET,FUEL TAP JOINT
11009-1567
|
$6.00 | ||
|
Available to order. Add to View Price |
|||
|
#13
'O' RING FUEL COCK
92065-062
|
$7.10 | ||
|
Unavailable |
|||
|
#14
GASKET FUEL COCK CUP
51037-008
|
$5.61 | ||
|
Unavailable |
|||
|
#15
SEAT-ASSY,DUAL
53001-058
|
$123.27 | ||
|
Available to order. Add to View Price |
|||
|
#16
DAMPER RUBB DUAL SEAT
92075-023
|
$4.58 | ||
|
Available to order. Add to View Price |
|||
|
#17
WASHER-PLAIN-SMALL
410B0600
Superseded by 410AA0600
|
$1.28 | ||
|
Available to order. Add to View Price |
|||
|
#18
WASHER-SPRING,6MM
461F0600
Superseded by 461DA0600
|
$0.69 | ||
|
Available to order. Add to View Price |
|||
|
#19
NUT-HEX,6MM
311B0600
Superseded by 311AA0600
|
$0.93 | ||
|
Available to order. Add to View Price |
|||
