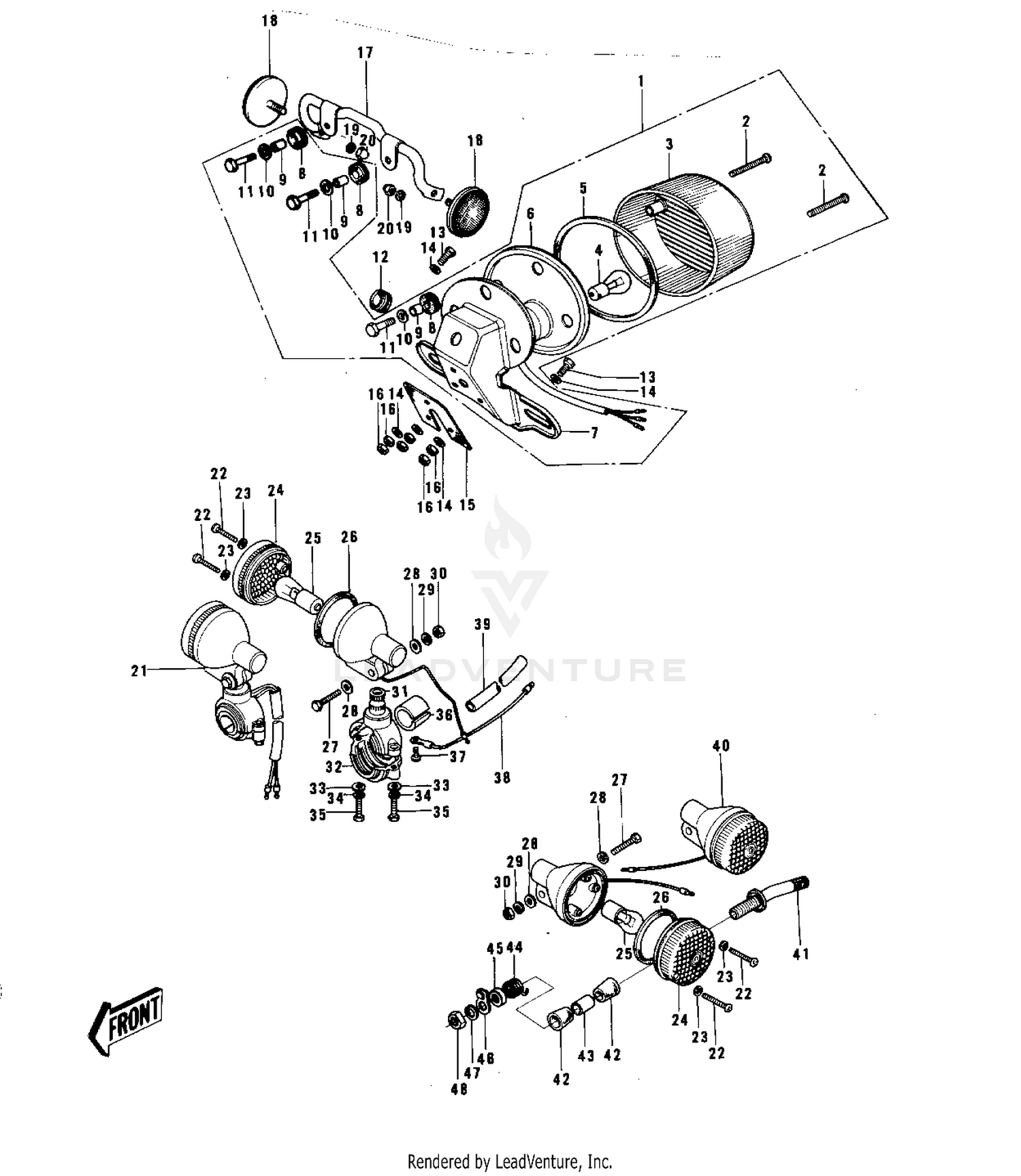

Taillight/turn Signals ('74-'75 B/c) Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
LAMP ASSY,TAIL,BLACK
23024-069-21
|
$131.84 | ||
|
Available to order. Add to View Price |
|||
|
#2
SCREW-PAN HEAD,4X35
220E0435A
|
$8.26 | ||
|
Available to order. Add to View Price |
|||
|
#3
LENS-TAIL LAMP
23026-023
|
$126.00 | ||
|
Available to order. Add to View Price |
|||
|
#4
BULB,6V 17/5.3W
92069-028
|
$9.29 | ||
|
Available to order. Add to View Price |
|||
|
#5
GASKET-TAIL LAMP LENS
23028-018
|
$11.88 | ||
|
Available to order. Add to View Price |
|||
|
#6
CASE,TAIL LAMP
23027-030
|
$136.16 | ||
|
Available to order. Add to View Price |
|||
|
#7
BKT-LICENSE PLT.BLACK
23036-019-21
|
$88.25 | ||
|
Available to order. Add to View Price |
|||
|
#8
DAMPER RUBBER
92075-076
|
$4.63 | ||
|
Available to order. Add to View Price |
|||
|
#9
COLLAR,6.8X10X8.5
92027-129
|
$4.84 | ||
|
Available to order. Add to View Price |
|||
|
#10
WASHER,6.5X20X1.6
92022-125
Superseded by 92200-0283
|
$1.36 | ||
|
Available to order. Add to View Price |
|||
|
#11
BOLT-UPSET
112B0622
Superseded by 112BA0622
|
$3.62 | ||
|
Available to order. Add to View Price |
|||
|
#12
GROMMET HARNESS 10MM
92071-019
|
$3.77 | ||
|
Available to order. Add to View Price |
|||
|
#13
BOLT-UPSET
112G0630
Superseded by 112BA0630
|
$1.36 | ||
|
Available to order. Add to View Price |
|||
|
#14
WASHER,6.5X20X1.6
92022-125
Superseded by 92200-0283
|
$1.36 | ||
|
Unavailable |
|||
|
#15
DAMPER-TAIL LAMP SHCK
35039-005
|
$10.16 | ||
|
Available to order. Add to View Price |
|||
|
#16
NUT-HEX
312B0600
Superseded by 312AA0600
|
$0.72 | ||
|
Available to order. Add to View Price |
|||
|
#17
BRACKET-REFLECTOR
28013-005
|
$19.85 | ||
|
Available to order. Add to View Price |
|||
|
#18
REFLECTOR-REFLEX,REAR
28012-008
|
$12.75 | ||
|
Available to order. Add to View Price |
|||
|
#19
WASHER-SPRING,5MM
461F0500
Superseded by 461DA0500
|
$0.69 | ||
|
Available to order. Add to View Price |
|||
|
#20
NUT-CAP,5MM
322N0500
|
$3.93 | ||
|
Available to order. Add to View Price |
|||
|
#21
LAMP ASY-FR TURN SIG
23037-005
|
$96.42 | ||
|
Available to order. Add to View Price |
|||
|
#22
SCREW-PAN HEAD,4X20
220E0420A
|
$2.68 | ||
|
Available to order. Add to View Price |
|||
|
#23
WASHER,PLAIN,4MM
23058-002
|
$2.42 | ||
|
Available to order. Add to View Price |
|||
|
#24
LENS,TURN SIGNAL LAMP
23048-1001
|
$10.20 | ||
|
Available to order. Add to View Price |
|||
|
#25
BULB,6V 21CP
92069-056
|
$6.20 | ||
|
Available to order. Add to View Price |
|||
|
#26
GASKET-SIG LAMP LENS
23050-003
|
$5.62 | ||
|
Available to order. Add to View Price |
|||
|
#27
BOLT-UPSET
112G0630
Superseded by 112BA0630
|
$1.36 | ||
|
Unavailable |
|||
|
#28
WASHER-PLAIN,6MM
411D0600
Superseded by 411S0600
|
$2.00 | ||
|
Available to order. Add to View Price |
|||
|
#29
WASHER-SPRING,6MM
461F0600
Superseded by 461DA0600
|
$0.69 | ||
|
Available to order. Add to View Price |
|||
|
#30
NUT-HEX,6MM
311B0600
Superseded by 311AA0600
|
$0.93 | ||
|
Available to order. Add to View Price |
|||
|
#31
BRACKET,FRNT TURN SIG
23051-1004
|
$36.61 | ||
|
Available to order. Add to View Price |
|||
|
#32
BRACKET,SIGNAL LAMP
23051-1013
|
$21.51 | ||
|
Available to order. Add to View Price |
|||
|
#33
W-PLAIN-S,5MM
410D0500
Superseded by 410S0500
|
$1.55 | ||
|
Available to order. Add to View Price |
|||
|
#34
WASHER-SPRING,5MM
461F0500
Superseded by 461DA0500
|
$0.69 | ||
|
Unavailable |
|||
|
#35
BOLT,5X16
110N0516
Superseded by 110R0516
|
$3.63 | ||
|
Available to order. Add to View Price |
|||
|
#36
DAMPER RUBBER
23066-003
|
$7.44 | ||
|
Available to order. Add to View Price |
|||
|
#37
SCREW,3X5
220B0305A
Superseded by 92009-1123
|
$0.58 | ||
|
Available to order. Add to View Price |
|||
|
#38
WIRE-TURN SIGNAL LEAD
26011-061
|
$5.27 | ||
|
Available to order. Add to View Price |
|||
|
#39
COVER-WIRING HARNESS
26009-004
|
$1.93 | ||
|
Available to order. Add to View Price |
|||
|
#40
LAMP-REAR TURN SIGNAL
23040-033
|
$141.18 | ||
|
Available to order. Add to View Price |
|||
|
#41
BKT-RR SIGNAL LAMP
23051-044
|
$30.46 | ||
|
Available to order. Add to View Price |
|||
|
#42
DAMPER RUBBER
92075-148
|
$3.94 | ||
|
Available to order. Add to View Price |
|||
|
#43
COLLAR 12.7X17.3X30
92027-168
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
|
#44
SPRING
92081-111
|
$3.39 | ||
|
Available to order. Add to View Price |
|||
|
#45
WASHER CUP 12.5X35X4T
92022-235
|
$5.37 | ||
|
Available to order. Add to View Price |
|||
|
#46
CLAMP-RR SIGNAL LAMP
92037-087
|
$3.73 | ||
|
Available to order. Add to View Price |
|||
|
#47
WASHER-SPRING,12MM
461F1200
Superseded by 461DA1200
|
$1.00 | ||
|
Available to order. Add to View Price |
|||
|
#48
NUT-HEX-FINE
315B1200
Superseded by 315AA1200
|
$0.93 | ||
|
Available to order. Add to View Price |
|||
