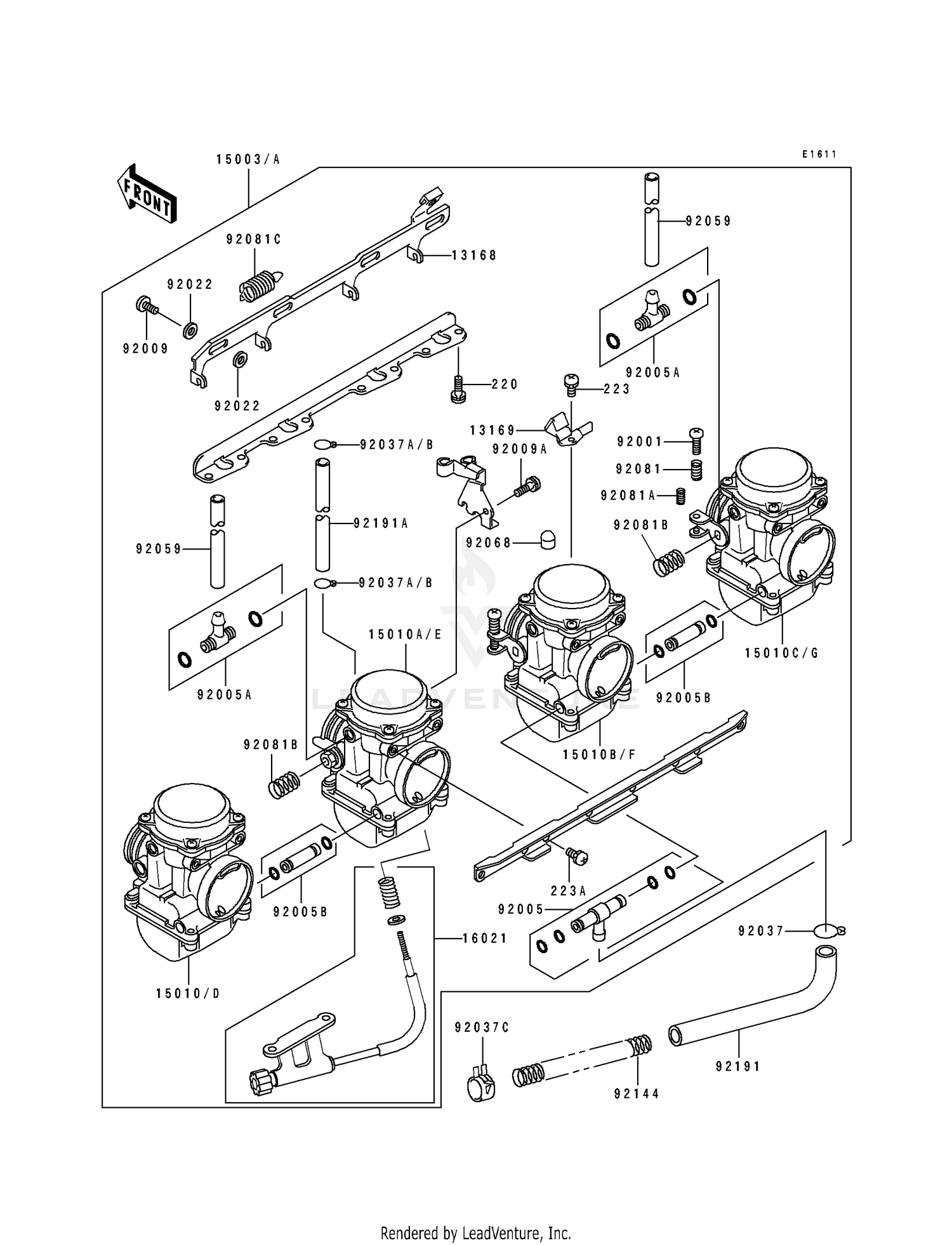

Carburetor Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#13168
LEVER,STARTER
13168-1245
|
$118.18 | ||
|
Available to order. Add to View Price |
|||
|
#13169
PLATE
13169-1871
|
$26.38 | ||
|
Available to order. Add to View Price |
|||
|
#15003
CARBURETOR-ASSY
15003-1129
|
$2,107.27 | ||
|
Available to order. Add to View Price |
|||
|
#15003A
CARBURETOR-ASSY
15003-1130
|
$2,107.27 | ||
|
Available to order. Add to View Price |
|||
|
#15010
CARBURETOR,LH,OUTSIDE
15010-1917
|
$634.46 | ||
|
Available to order. Add to View Price |
|||
|
#15010A
CARBURETOR,LH,INSIDE
15010-1918
|
$634.46 | ||
|
Available to order. Add to View Price |
|||
|
#15010B
CARBURETOR,RH,INSIDE
15010-1919
|
$586.03 | ||
|
Available to order. Add to View Price |
|||
|
#15010C
CARBURETOR,RH OUTSIDE
15010-1920
|
$623.29 | ||
|
Available to order. Add to View Price |
|||
|
#15010D
CARBURETOR,LH OUTSIDE
15010-1921
|
$634.46 | ||
|
Available to order. Add to View Price |
|||
|
#15010E
CARBURETOR,LH INSIDE
15010-1922
|
$623.29 | ||
|
Available to order. Add to View Price |
|||
|
#15010F
CARBURETOR,RH INSIDE
15010-1923
|
$623.29 | ||
|
Available to order. Add to View Price |
|||
|
#15010G
CARBURETOR,RH,OUTSIDE
15010-1924
|
$634.46 | ||
|
Available to order. Add to View Price |
|||
|
#16021
SCREW-THROTTLE STOP
16021-1204
|
$104.17 | ||
|
Available to order. Add to View Price |
|||
|
#92001
BOLT,THROTTLE ADJUST
92001-1998
|
$16.34 | ||
|
Available to order. Add to View Price |
|||
|
#92005
FITTING
92005-1288
|
$33.99 | ||
|
Available to order. Add to View Price |
|||
|
#92005A
FITTING
92005-1306
|
$25.66 | ||
|
Available to order. Add to View Price |
|||
|
#92005B
FITTING
92005-1310
|
$32.46 | ||
|
Available to order. Add to View Price |
|||
|
#92009
SCREW
92009-1262
|
$6.40 | ||
|
Available to order. Add to View Price |
|||
|
#92009A
SCREW,5X10
92009-1365
|
$7.09 | ||
|
Available to order. Add to View Price |
|||
|
#92022
WASHER,6.1X11X0.8,POLYACETAL
92022-1199
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
|
#92037
CLAMP,HOSE
92037-1104
|
$1.42 | ||
|
Available to order. Add to View Price |
|||
|
#92037A
CLAMP
92037-1201
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
|
#92037B
CLAMP,TUBE
92037-1477
Superseded by 92037-1142
|
$4.17 | ||
|
Available to order. Add to View Price |
|||
|
#92037C
CLAMP
92037-1861
|
$8.89 | ||
|
Available to order. Add to View Price |
|||
|
#92059
TUBE,L=350
92059-1237
|
$22.95 | ||
|
Available to order. Add to View Price |
|||
|
#92068
PLUG,12X25
92068-006
|
$4.13 | ||
|
Available to order. Add to View Price |
|||
|
#92081
SPRING
92081-1620
|
$4.80 | ||
|
Available to order. Add to View Price |
|||
|
#92081A
SPRING,THROTTLE ADJUST LWR
92081-1621
|
$5.02 | ||
|
Available to order. Add to View Price |
|||
|
#92081B
SPRING,THROTTLE ADJUST CNT
92081-1622
|
$10.29 | ||
|
Available to order. Add to View Price |
|||
|
#92081C
SPRING,STARTER LEVER
92081-1762
|
$23.46 | ||
|
Available to order. Add to View Price |
|||
|
#92144
SPRING,FUEL TUBE
92144-1874
Superseded by 92145-1420
|
$7.74 | ||
|
Available to order. Add to View Price |
|||
|
#92191
TUBE
92191-1007
|
$12.85 | ||
|
Available to order. Add to View Price |
|||
|
#92191A
TUBE
92191-1017
|
$11.00 | ||
|
Available to order. Add to View Price |
|||
|
#220
SCREW-PAN-CROS,6X16
220B0616
Superseded by 220AA0616
|
$2.95 | ||
|
Available to order. Add to View Price |
|||
|
#223
SCREW-PAN-WS-CROS
223C0420
|
$3.84 | ||
|
Available to order. Add to View Price |
|||
|
#223A
SCREW-PAN-WS-CROS,5X10
223C0510
Superseded by 223AB0510
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
