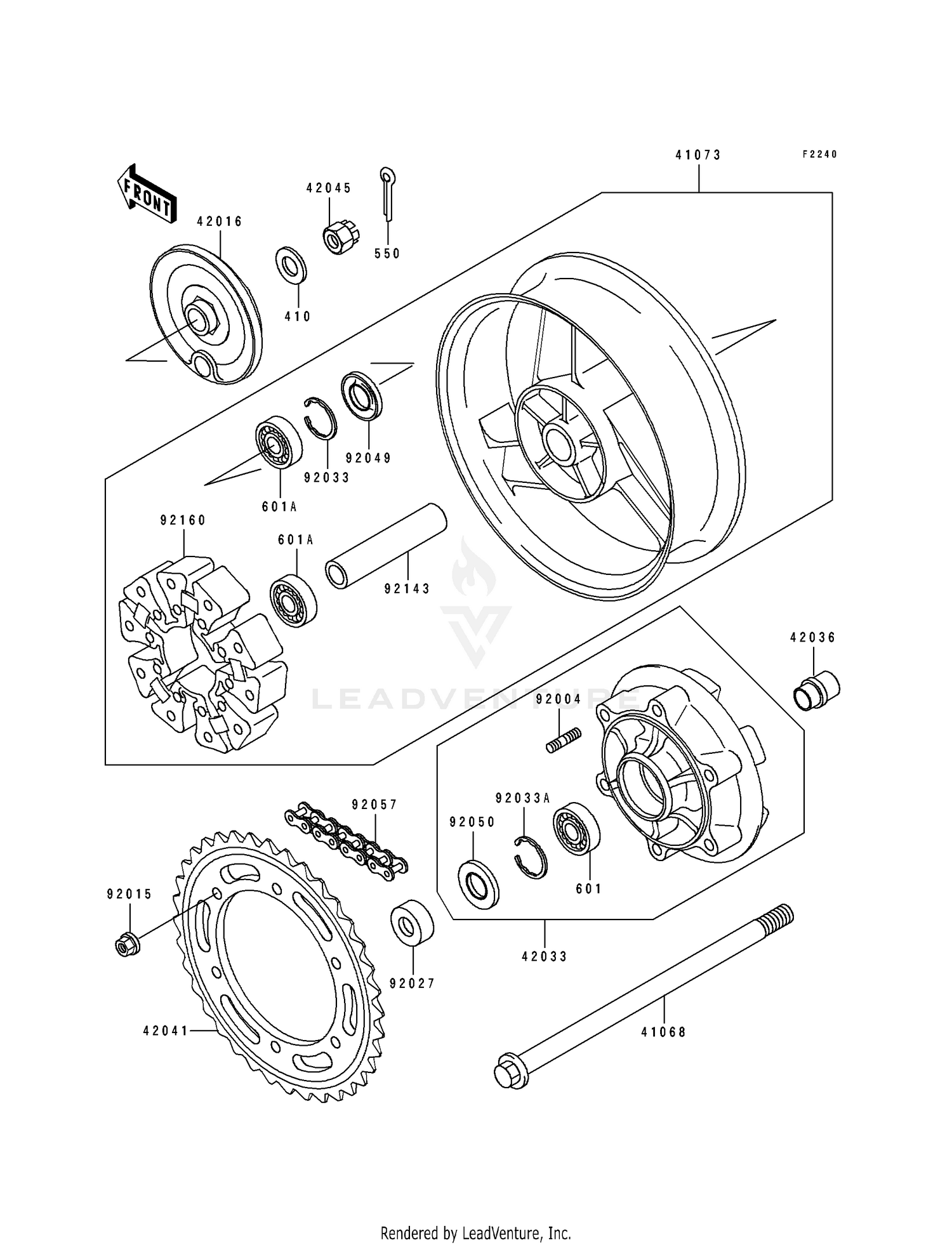

Rear Wheel/chain Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#41068
AXLE,RR
41068-1350
|
$156.97 | ||
|
Available to order. Add to View Price |
|||
|
#41073
WHEEL-SUB ASSY,RR,C.G
41073-1594-DH
Superseded by 41090-5137-DH
|
$843.97 | ||
|
Available to order. Add to View Price |
|||
|
#42016
PANEL-REAR BRAKE
42016-1167
|
$124.00 | ||
|
Available to order. Add to View Price |
|||
|
#42033
COUPLING-ASSY,RR HUB,
42033-1160-EZ
Superseded by 42033-1208-EZ
|
$331.13 | ||
|
Available to order. Add to View Price |
|||
|
#42036
SLEEVE,RR AXLE,L=45
42036-1302
|
$36.78 | ||
|
Available to order. Add to View Price |
|||
|
#42041
SPROCKET-HUB,45T
42041-1283
|
$114.32 | ||
|
Available to order. Add to View Price |
|||
|
#42045
NUT,CASTLE,18MM
42045-018
|
$8.97 | ||
|
Available to order. Add to View Price |
|||
|
#92004
STUD,10X24
92004-1146
Superseded by 92004-0029
|
$5.42 | ||
|
Available to order. Add to View Price |
|||
|
#92015
NUT,10MM
92015-1720
Superseded by 92210-1258
|
$5.07 | ||
|
Available to order. Add to View Price |
|||
|
#92027
COLLAR,20X40X18
92027-1287
|
$33.91 | ||
|
Available to order. Add to View Price |
|||
|
#92033
RING-SNAP,52MM
92033-1043
|
$7.77 | ||
|
Available to order. Add to View Price |
|||
|
#92033A
RING-SNAP,62MM
92033-1044
|
$10.89 | ||
|
Available to order. Add to View Price |
|||
|
#92049
SEAL-OIL,28X52X5
92049-1061
|
$18.47 | ||
|
Available to order. Add to View Price |
|||
|
#92050
SEAL-OIL,AJN40627
92050-027
|
$20.21 | ||
|
Available to order. Add to View Price |
|||
|
#92057
CHAIN,DRIVE,EK50ZVX2X
92057-1385
Superseded by 92057-0005
|
$281.27 | ||
|
Available to order. Add to View Price |
|||
|
#92143
COLLAR,REAR AXLE,L=11
92143-1390
|
$39.14 | ||
|
Available to order. Add to View Price |
|||
|
#92160
DAMPER,SHOCK,RR HUB
92160-1398
Superseded by 92160-1911
|
$122.90 | ||
|
Available to order. Add to View Price |
|||
|
#410
WASHER,19X32X2.6
410D1800
Superseded by 92200-1489
|
$1.78 | ||
|
Available to order. Add to View Price |
|||
|
#550
PIN-COTTER,4.0X35
550D4035
Superseded by 550AA4035
|
$2.11 | ||
|
Available to order. Add to View Price |
|||
|
#601
BEARING-BALL,#6206UUC3
601B6206UU
|
$38.83 | ||
|
Available to order. Add to View Price |
|||
|
#601A
BEARING-BALL,#6304UUC3
601B6304UU
|
$33.17 | ||
|
Available to order. Add to View Price |
|||
