1995 Kawasaki GPZ 1100 Fuel Evaporative System OEM Parts

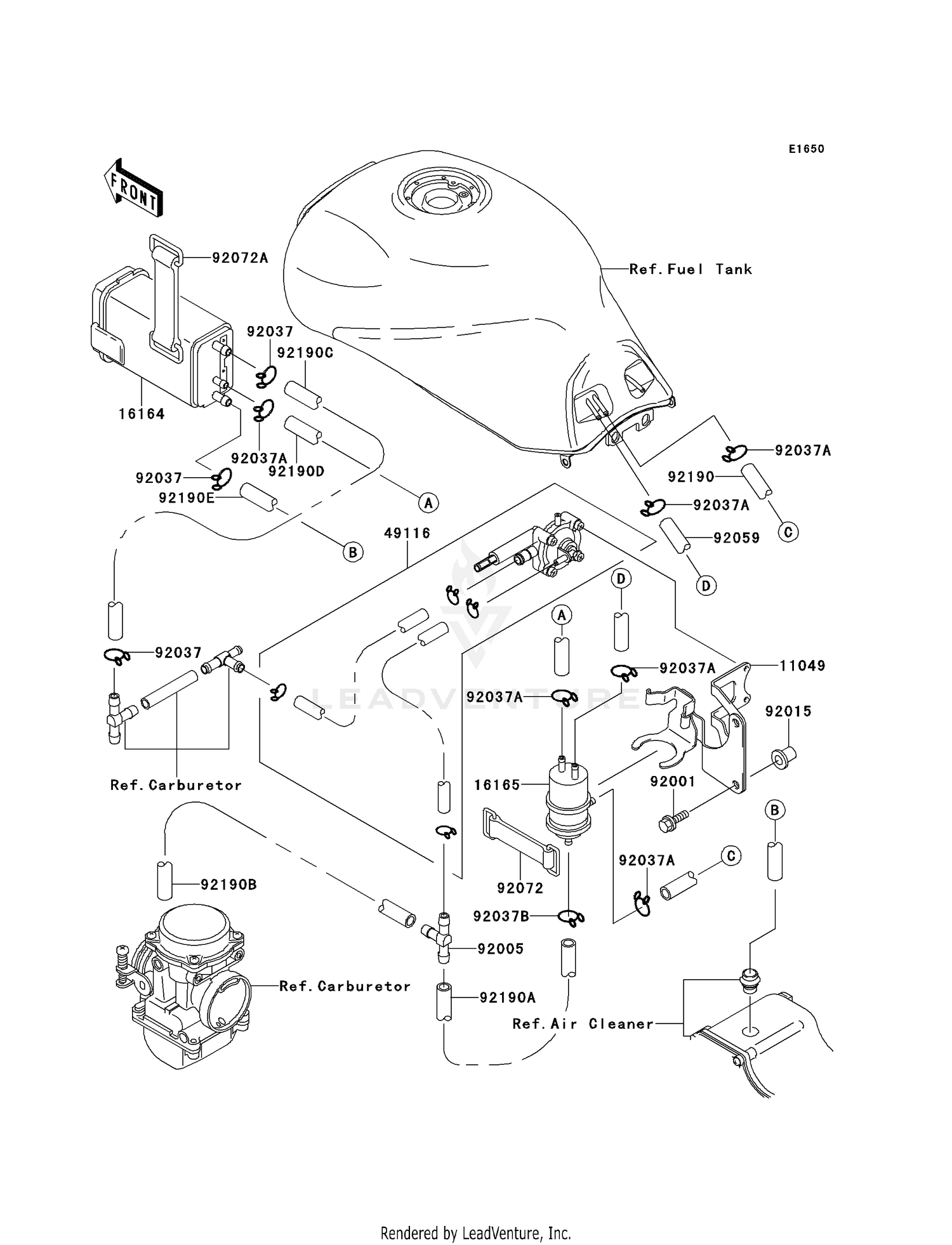

Fuel Evaporative System Diagram

Item	MSRP	Qty
#11049 BRACKET 11049-1259	$17.16
Available to order. Add to View Price
#16164 CANISTER 16164-1064	$139.32
Available to order. Add to View Price
#16165 SEPARATOR 16165-1001	$86.53
Available to order. Add to View Price
#49116 VALVE-ASSY 49116-1137	$92.01
Available to order. Add to View Price
#92001 BOLT,6X20 92001-1791 Superseded by 92153-1454	$2.67
Available to order. Add to View Price
#92005 FITTING,TUBE,T-TYPE 92005-1017	$9.93
Available to order. Add to View Price
#92015 NUT 92015-1700	$8.28
Available to order. Add to View Price
#92037 CLAMP,HOSE 92037-1104	$1.42
Available to order. Add to View Price
#92037A CLAMP,TUBE 92037-147	$7.09
Available to order. Add to View Price
#92037B CLAMP 92037-1712	$4.84
Available to order. Add to View Price
#92059 TUBE,5X10X1000,BLUE 92059-1728 Superseded by 92190-1007	$30.92
Available to order. Add to View Price
#92072 BAND,L=50 92072-066 Superseded by 92072-1419	$15.51
Available to order. Add to View Price
#92072A BAND,L=100 92072-071	$9.20
Available to order. Add to View Price
#92190 TUBE,TANK-SEPARATOR,R 92190-1522	$7.73
Available to order. Add to View Price
#92190A TUBE 92190-1623	$4.35
Available to order. Add to View Price
#92190B TUBE,4X9X590,WHITE 92190-1624	$8.36
Available to order. Add to View Price
#92190C TUBE,7X12X560,YELLOW 92190-1625	$11.05
Available to order. Add to View Price
#92190D TUBE,5X10X1060,BLUE 92190-1626	$13.80
Available to order. Add to View Price
#92190E TUBE,7X12X750,GREEN 92190-1627	$13.49
Available to order. Add to View Price
