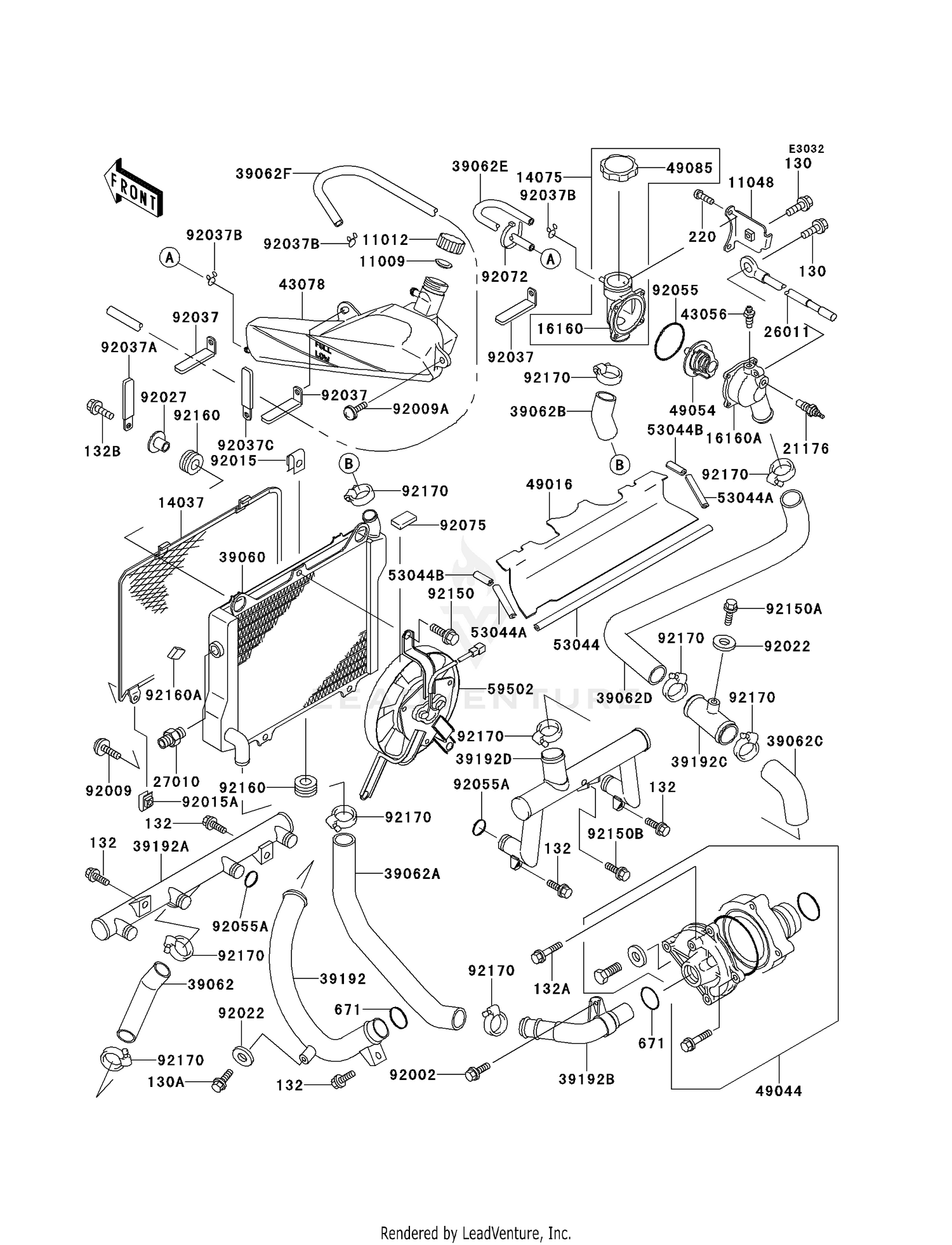

Radiator Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#11009
GASKET,RESERVOIR TANK CAP
11009-1145
|
$1.39 | ||
|
Available to order. Add to View Price |
|||
|
#11012
CAP
11012-1084
|
$1.69 | ||
|
Available to order. Add to View Price |
|||
|
#11048
BRACKET
11048-1941
|
$11.99 | ||
|
Available to order. Add to View Price |
|||
|
#14037
SCREEN,RADIATOR
14037-1198
|
$75.09 | ||
|
Available to order. Add to View Price |
|||
|
#14075
BODY,THERMOSTAT,UPP
14075-1068
Superseded by 16160-1116
|
$102.78 | ||
|
Available to order. Add to View Price |
|||
|
#16160
BODY,THERMOSTAT,UPP
16160-1116
|
$102.78 | ||
|
Unavailable |
|||
|
#16160A
BODY,THERMOSTAT,LWR
16160-1117
|
$80.63 | ||
|
Available to order. Add to View Price |
|||
|
#21176
SENSOR,WATER
21176-1054
|
$70.78 | ||
|
Available to order. Add to View Price |
|||
|
#26011
WIRE-LEAD,(-)
26011-1590
|
$6.21 | ||
|
Available to order. Add to View Price |
|||
|
#27010
SWITCH
27010-1356
Superseded by 27010-1372
|
$75.57 | ||
|
Available to order. Add to View Price |
|||
|
#39060
RADIATOR
39060-1130
|
$509.68 | ||
|
Available to order. Add to View Price |
|||
|
#39062
HOSE-COOLING,PUMP-CYLINDER
39062-1276
|
$37.55 | ||
|
Available to order. Add to View Price |
|||
|
#39062A
HOSE-COOLING,RADIATOR
39062-1638
|
$48.99 | ||
|
Available to order. Add to View Price |
|||
|
#39062B
HOSE-COOLING,THERMO-R
39062-1639
|
$11.82 | ||
|
Available to order. Add to View Price |
|||
|
#39062C
HOSE-COOLING
39062-1640
|
$11.88 | ||
|
Available to order. Add to View Price |
|||
|
#39062D
HOSE-COOLING,PIPE-THE
39062-1641
|
$54.13 | ||
|
Available to order. Add to View Price |
|||
|
#39062E
HOSE-COOLING
39062-1653
|
$19.11 | ||
|
Available to order. Add to View Price |
|||
|
#39062F
HOSE-COOLING,OVER FLO
39062-1654
|
$23.14 | ||
|
Available to order. Add to View Price |
|||
|
#39192
PIPE-WATER,PUMP-CYLINDER
39192-1011
|
$71.96 | ||
|
Available to order. Add to View Price |
|||
|
#39192A
PIPE-WATER,CYLINDER
39192-1031
|
$138.29 | ||
|
Available to order. Add to View Price |
|||
|
#39192B
PIPE-WATER
39192-1074
|
$84.15 | ||
|
Available to order. Add to View Price |
|||
|
#39192C
PIPE-WATER
39192-1076
|
$19.61 | ||
|
Available to order. Add to View Price |
|||
|
#39192D
PIPE-WATER
39192-1092
|
$107.76 | ||
|
Available to order. Add to View Price |
|||
|
#43056
BLEEDER SET
43056-003
Superseded by 43085-001
|
$23.70 | ||
|
Available to order. Add to View Price |
|||
|
#43078
RESERVOIR
43078-1148
|
$56.46 | ||
|
Available to order. Add to View Price |
|||
|
#49016
COVER-SEAL
49016-1189
|
$62.40 | ||
|
Available to order. Add to View Price |
|||
|
#49044
PUMP-WATER
49044-1076
Superseded by 49044-1080
|
$283.40 | ||
|
Available to order. Add to View Price |
|||
|
#49054
THERMOSTAT
49054-1051
|
$40.10 | ||
|
Available to order. Add to View Price |
|||
|
#49085
CAP-ASSY-PRESSURE
49085-1067
|
$51.84 | ||
|
Available to order. Add to View Price |
|||
|
#53044
TRIM,L=520
53044-1205
|
$18.16 | ||
|
Available to order. Add to View Price |
|||
|
#53044A
TRIM
53044-1288
|
$6.63 | ||
|
Available to order. Add to View Price |
|||
|
#53044B
TRIM
53044-1289
|
$4.02 | ||
|
Available to order. Add to View Price |
|||
|
#59502
FAN-ASSY
59502-1118
|
$613.22 | ||
|
Available to order. Add to View Price |
|||
|
#92002
BOLT,FLANGED-SMALL,6X16
92002-1571
Superseded by 92154-1893
|
$4.54 | ||
|
Available to order. Add to View Price |
|||
|
#92009
SCREW,TAPPING,6X12
92009-1261
Superseded by 92172-0003
|
$2.72 | ||
|
Available to order. Add to View Price |
|||
|
#92009A
SCREW,6X14
92009-1662
|
$3.80 | ||
|
Available to order. Add to View Price |
|||
|
#92015
NUT
92015-1487
|
$4.66 | ||
|
Available to order. Add to View Price |
|||
|
#92015A
NUT,6MM
92015-1758
|
$6.66 | ||
|
Available to order. Add to View Price |
|||
|
#92022
WASHER,6.2X11X1
92022-304
|
$3.53 | ||
|
Available to order. Add to View Price |
|||
|
#92027
COLLAR,L=14
92027-1134
|
$9.92 | ||
|
Available to order. Add to View Price |
|||
|
#130
BOLT-FLANGED,6X10
130G0610
Superseded by 130BA0610
|
$1.17 | ||
|
Available to order. Add to View Price |
|||
|
#130A
BOLT-FLANGED,6X16
130J0616
Superseded by 130BB0616
|
$2.00 | ||
|
Available to order. Add to View Price |
|||
|
#132
BOLT-FLANGED-SMALL,6X12
132J0612
Superseded by 132BB0612
|
$2.00 | ||
|
Available to order. Add to View Price |
|||
|
#132A
BOLT-FLANGED-SMALL,6X40
132J0640
|
$3.25 | ||
|
Available to order. Add to View Price |
|||
|
#132B
BOLT-FLANGED-SMALL,8X25
132J0825
Superseded by 132BB0825
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#220
SCREW-PAN-CROS,5X14
220D0514
Superseded by 220AA0514
|
$4.29 | ||
|
Available to order. Add to View Price |
|||
|
#671
O RING,25MM
671B2525
|
$4.84 | ||
|
Available to order. Add to View Price |
|||
|
#92037
CLAMP,L=60
92037-1069
Superseded by 92171-0652
|
$2.54 | ||
|
Available to order. Add to View Price |
|||
|
#92037A
CLAMP,HARNESS
92037-113
|
$5.95 | ||
|
Available to order. Add to View Price |
|||
|
#92037B
CLAMP,TUBE
92037-147
|
$7.09 | ||
|
Available to order. Add to View Price |
|||
|
#92037C
CLAMP
92037-1993
|
$5.34 | ||
|
Available to order. Add to View Price |
|||
|
#92055
RING-O,53.5X2.6
92055-112
|
$6.42 | ||
|
Available to order. Add to View Price |
|||
|
#92055A
RING-O
92055-1282
|
$5.07 | ||
|
Available to order. Add to View Price |
|||
|
#92072
BAND,L=186
92072-056
|
$4.84 | ||
|
Available to order. Add to View Price |
|||
|
#92075
DAMPER
92075-1446
|
$4.54 | ||
|
Available to order. Add to View Price |
|||
|
#92150
BOLT,6X12
92150-1186
|
$3.28 | ||
|
Available to order. Add to View Price |
|||
|
#92150A
BOLT,BANJO,6X16
92150-1796
|
$5.21 | ||
|
Available to order. Add to View Price |
|||
|
#92150B
BOLT,FLANGED-SMALL,6X12
92150-1841
Superseded by 92154-1888
|
$4.17 | ||
|
Available to order. Add to View Price |
|||
|
#92160
DAMPER
92160-1007
|
$5.34 | ||
|
Available to order. Add to View Price |
|||
|
#92160A
DAMPER,SCREEN
92160-1663
|
$3.58 | ||
|
Available to order. Add to View Price |
|||
|
#92170
CLAMP
92170-1284
Superseded by 92171-0179
|
$7.96 | ||
|
Available to order. Add to View Price |
|||
