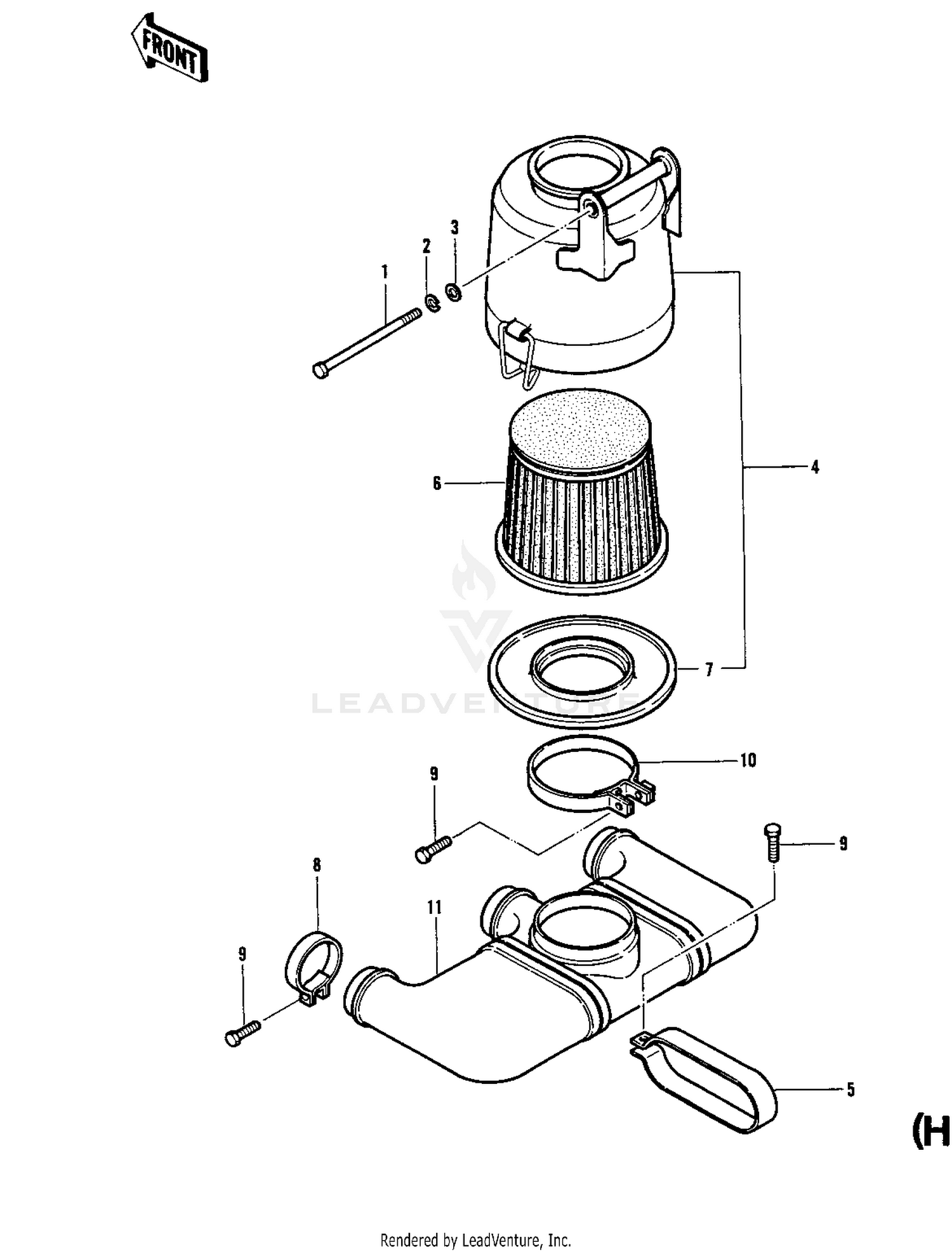

1972 Kawasaki H1 MACH III AIR CLEANER (H1/A/C) OEM Parts Diagram
Accessory
+
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Dash & Gauges
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
SCREW PAN HEAD 6X110
220B06110
|
$3.73 | ||
|
Available to order. Add to View Price |
|||
|
#2
WASHER-SPRING,6MM
461F0600
Superseded by 461DA0600
|
$0.69 | ||
|
Available to order. Add to View Price |
|||
|
#3
WASHER-PLAIN,6MM
411B0600
Superseded by 411AA0600
|
$2.84 | ||
|
Available to order. Add to View Price |
|||
|
#4
AIR CLEANER ASY,BLACK
11010-058-21
|
$76.61 | ||
|
Available to order. Add to View Price |
|||
|
#5
CLAMP AIR INLET PIPE
92037-043
|
$28.15 | ||
|
Available to order. Add to View Price |
|||
|
#6
ELEMENT,AIR CLNR
11013-019
|
$45.13 | ||
|
Available to order. Add to View Price |
|||
|
#7
CAP AIR CLEANER
11012-011
|
$17.74 | ||
|
Available to order. Add to View Price |
|||
|
#8
CLAMP AIR CLEANER
92037-034
|
$3.91 | ||
|
Available to order. Add to View Price |
|||
|
#9
SCREW-PAN-CROS,6X35
220B0635
Superseded by 220AA0635
|
$1.53 | ||
|
Available to order. Add to View Price |
|||
|
#10
CLAMP,AIR CLEANER
92037-128
|
$7.51 | ||
|
Available to order. Add to View Price |
|||
|
#11
INLET PIPE
11015-014
|
$62.83 | ||
|
Available to order. Add to View Price |
|||
