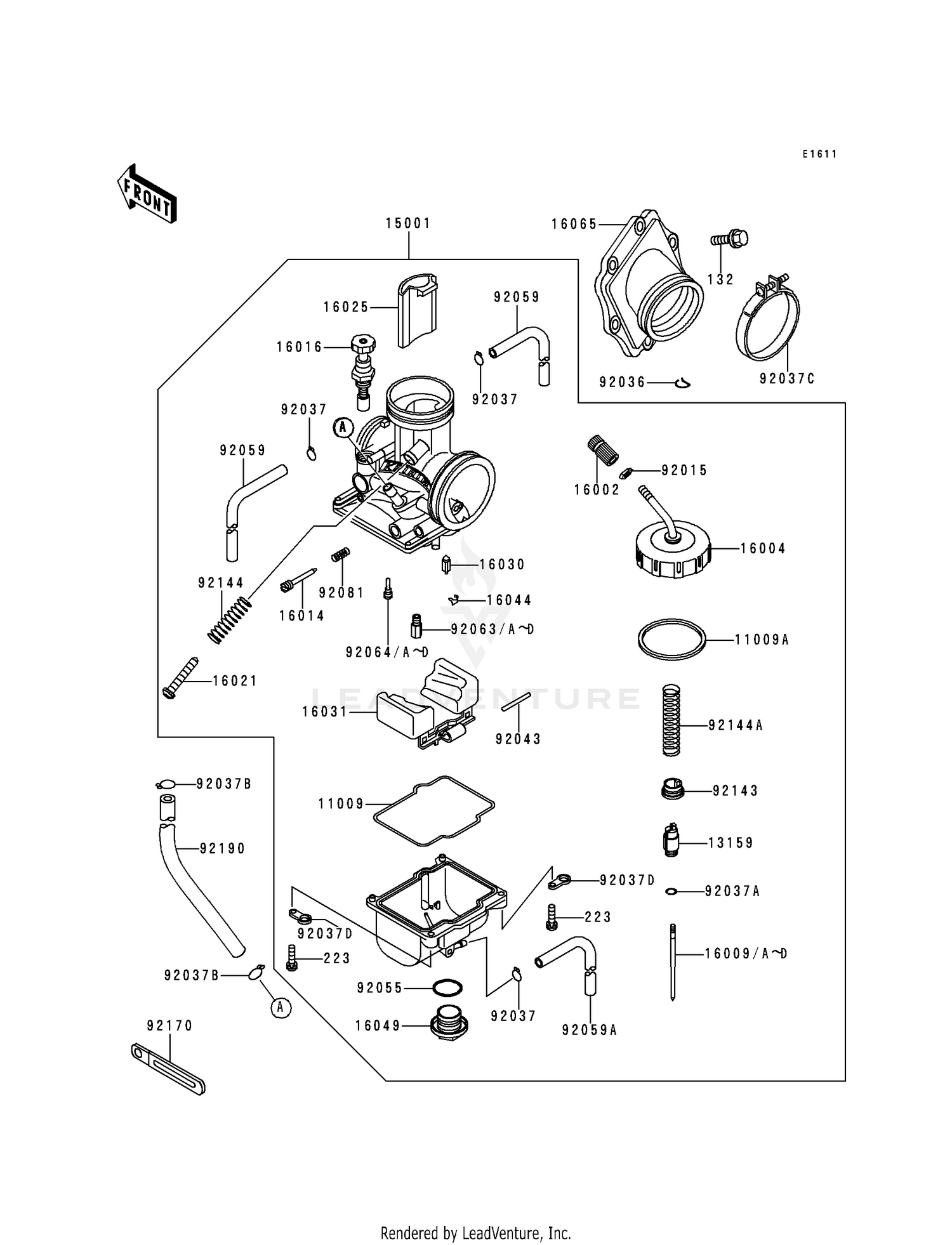

Carburetor Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#11009
GASKET,FLOAT CHAMBER
11009-1716
|
$14.70 | ||
|
Available to order. Add to View Price |
|||
|
#11009A
GASKET,CHAMBER CAP
11009-1717
|
$12.20 | ||
|
Available to order. Add to View Price |
|||
|
#13159
CONNECTOR,THROTTLE CA
13159-1063
|
$20.78 | ||
|
Available to order. Add to View Price |
|||
|
#15001
CARBURETOR-ASSY
15001-1564
|
$479.87 | ||
|
Available to order. Add to View Price |
|||
|
#16002
ADJUSTER-CABLE
16002-1057
|
$20.15 | ||
|
Available to order. Add to View Price |
|||
|
#16004
CAP-CHAMBER
16004-1070
|
$69.38 | ||
|
Available to order. Add to View Price |
|||
|
#16009
NEEDLE-JET,R1170N
16009-1440
|
$34.37 | ||
|
Available to order. Add to View Price |
|||
|
#16009A
NEEDLE-JET,R1171N
16009-1441
|
$32.83 | ||
|
Available to order. Add to View Price |
|||
|
#16009B
NEEDLE-JET,R1172N
16009-1523
|
$32.83 | ||
|
Available to order. Add to View Price |
|||
|
#16009C
NEEDLE-JET,R1173N
16009-1524
|
$32.83 | ||
|
Unavailable |
|||
|
#16009D
NEEDLE-JET,R1174N
16009-1525
|
$32.83 | ||
|
Available to order. Add to View Price |
|||
|
#16014
SCREW-PILOT AIR
16014-1058
|
$20.03 | ||
|
Available to order. Add to View Price |
|||
|
#16016
PLUNGER,STARTER
16016-1075
|
$39.13 | ||
|
Available to order. Add to View Price |
|||
|
#16021
SCREW-THROTTLE STOP
16021-1124
|
$24.82 | ||
|
Available to order. Add to View Price |
|||
|
#16025
VALVE-THROTTLE
16025-1164
|
$141.03 | ||
|
Available to order. Add to View Price |
|||
|
#16030
VALVE-FLOAT
16030-1057
|
$45.31 | ||
|
Available to order. Add to View Price |
|||
|
#16031
FLOAT
16031-1067
|
$57.64 | ||
|
Available to order. Add to View Price |
|||
|
#16044
CLAMP,FLOAT VALVE
16044-007
|
$7.64 | ||
|
Available to order. Add to View Price |
|||
|
#16049
COVER-MAIN JET
16049-1051
|
$32.02 | ||
|
Available to order. Add to View Price |
|||
|
#16065
HOLDER-CARBURETOR
16065-1181
|
$78.11 | ||
|
Unavailable |
|||
|
#92015
NUT,CABLE ADJUST LOCK
92015-1772
|
$5.41 | ||
|
Available to order. Add to View Price |
|||
|
#92036
RING-SNAP
92036-018
|
$3.77 | ||
|
Available to order. Add to View Price |
|||
|
#92037
CLAMP,TUBE
92037-1396
|
$5.34 | ||
|
Available to order. Add to View Price |
|||
|
#92037A
CLAMP,JET NEEDLE
92037-1401
|
$4.17 | ||
|
Available to order. Add to View Price |
|||
|
#92037B
CLAMP,TUBE
92037-147
|
$7.09 | ||
|
Available to order. Add to View Price |
|||
|
#92037C
CLAMP
92037-1843
|
$8.28 | ||
|
Available to order. Add to View Price |
|||
|
#92037D
CLAMP,HOSE
92037-1969
|
$7.82 | ||
|
Available to order. Add to View Price |
|||
|
#92043
PIN,FLOAT
92043-1207
|
$4.88 | ||
|
Available to order. Add to View Price |
|||
|
#92055
RING-O,MAIN JET COVER
92055-1167
|
$9.18 | ||
|
Available to order. Add to View Price |
|||
|
#92059
TUBE,4X7X420
92059-1896
Superseded by 92191-1591
|
$15.66 | ||
|
Available to order. Add to View Price |
|||
|
#92059A
TUBE,3.5X6.5X390
92059-1897
Superseded by 92059-1899
|
$10.41 | ||
|
Available to order. Add to View Price |
|||
|
#92063
JET-MAIN,#145
92063-1362
|
$13.60 | ||
|
Available to order. Add to View Price |
|||
|
#92063A
JET-MAIN,#148
92063-1363
|
$13.60 | ||
|
Available to order. Add to View Price |
|||
|
#92063B
JET-MAIN,#150
92063-1364
|
$13.60 | ||
|
Available to order. Add to View Price |
|||
|
#92063C
JET-MAIN,#152
92063-1365
|
$15.47 | ||
|
Available to order. Add to View Price |
|||
|
#132
BOLT-FLANGED-SMALL,6X20
132G0620
Superseded by 132BA0620
|
$2.42 | ||
|
Available to order. Add to View Price |
|||
|
#223
SCREW-PAN-WS-CROS,4X16
223C0416
Superseded by 223AB0416
|
$3.99 | ||
|
Available to order. Add to View Price |
|||
|
#92063D
JET-MAIN,#155
92063-1366
|
$14.50 | ||
|
Available to order. Add to View Price |
|||
|
#92064
JET-PILOT,#52
92064-1130
|
$18.37 | ||
|
Available to order. Add to View Price |
|||
|
#92064A
JET-PILOT,#42
92064-1141
|
$16.42 | ||
|
Available to order. Add to View Price |
|||
|
#92064B
JET-PILOT,#45
92064-1142
|
$16.42 | ||
|
Available to order. Add to View Price |
|||
|
#92064C
JET-PILOT,#48
92064-1143
|
$16.42 | ||
|
Available to order. Add to View Price |
|||
|
#92064D
JET-PILOT
92064-1144
|
$17.21 | ||
|
Available to order. Add to View Price |
|||
|
#92081
SPRING,ADJUST SCREW
92081-1555
|
$5.29 | ||
|
Available to order. Add to View Price |
|||
|
#92143
COLLAR,THROTTLE VALVE
92143-1201
|
$23.96 | ||
|
Available to order. Add to View Price |
|||
|
#92144
SPRING,THROTTLE STOP
92144-1257
|
$6.67 | ||
|
Available to order. Add to View Price |
|||
|
#92144A
SPRING,THROTTLE
92144-1284
|
$18.78 | ||
|
Available to order. Add to View Price |
|||
|
#92170
CLAMP
92170-1514
|
$4.17 | ||
|
Available to order. Add to View Price |
|||
|
#92190
TUBE,2.5X5.8X270
92190-1149
Superseded by 92059-3731
|
$8.79 | ||
|
Available to order. Add to View Price |
|||
