1993 Kawasaki KDX 200 Front Fork (kdx200-e5/e6) OEM Parts

Accessory
+
Air & Fuel
+
Body, Fairing & Fender
+
Brakes
+
Cooling System
+
Dash & Gauges
+
Drive & Transmission
+
Electrical
+
Engine
+
Exhaust
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Labels
+
Other
+
Seat
+
Suspension
+
< Back to Assembly Types

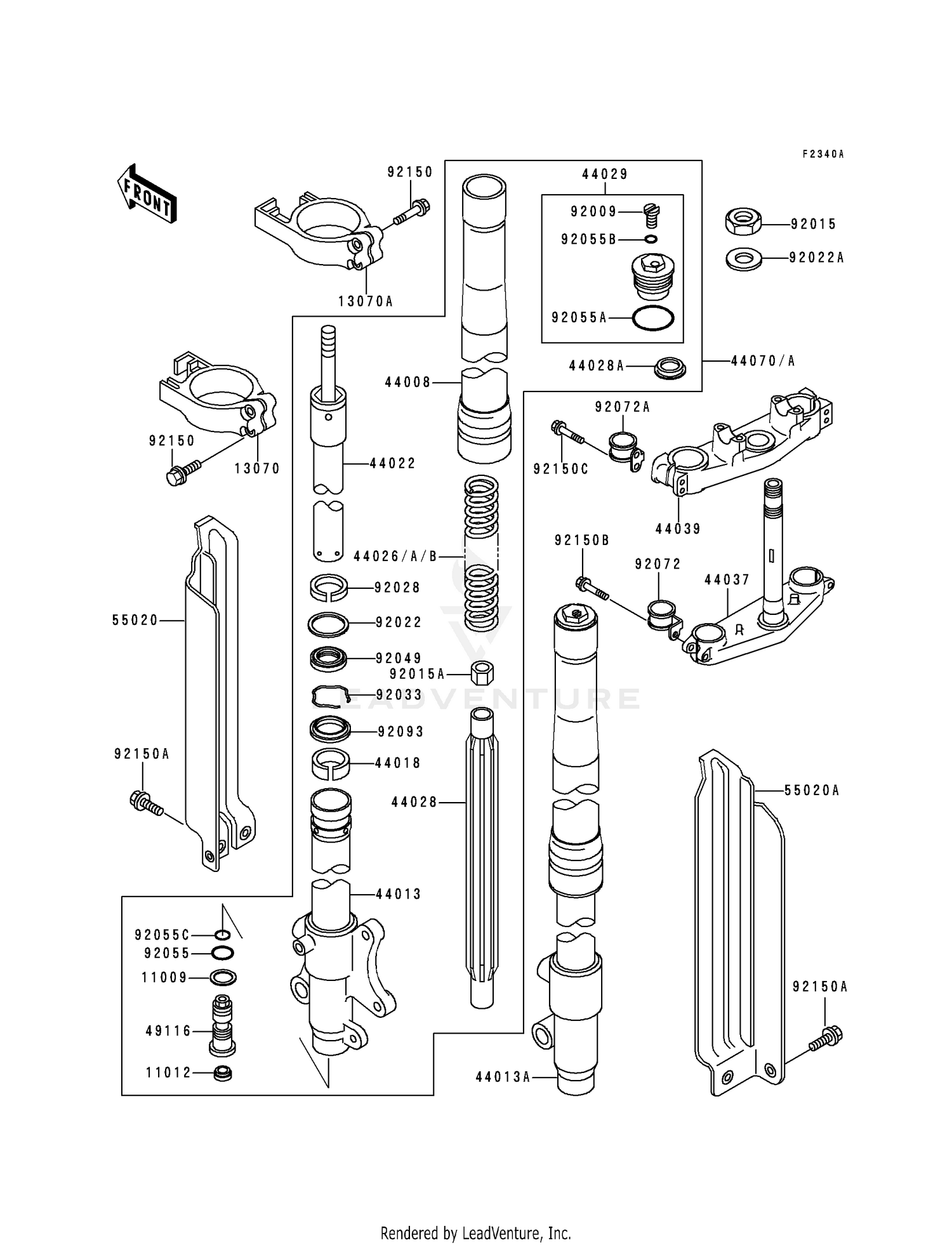

Front Fork (kdx200-e5/e6) Diagram

Item MSRP Qty
#11009 GASKET,FORK CYLINDER BOLT
11009-1592
 $5.96
Available to order.
Add to View Price
#11012 CAP,FORK CYLINDER
11012-1381
 $5.91
Available to order.
Add to View Price
#13070 GUIDE,FORK,LH,WHITE
13070-1263
Superseded by 13070-1263-RZ
 $33.78
Available to order.
Add to View Price
#13070A GUIDE,FORK,RH,WHITE
13070-1264
Superseded by 13070-1264-RZ
 $33.78
Available to order.
Add to View Price
#44008 PIPE-FORK OUTER,BLUE
44008-1025-KW
 $784.49
Available to order.
Add to View Price
#44013 PIPE-FORK INNER,LH
44013-1310
 $528.81
Available to order.
Add to View Price
#44013A PIPE-FORK INNER,RH
44013-1311
 $528.81
Available to order.
Add to View Price
#44018 PISTON-FORK
44018-1054
 $45.21
Available to order.
Add to View Price
#44022 CYLINDER-FORK
44022-1286
 $267.31
Available to order.
Add to View Price
#44026 SPRING-FRONT FORK
44026-1456
 $65.52
Available to order.
Add to View Price
#44026A SPRING-FRONT FORK
44026-1460
 $62.65
Available to order.
Add to View Price
#44026B SPRING-FRONT FORK
44026-1461
 $65.52
Available to order.
Add to View Price
#44028 GUIDE-FORK SPRING
44028-1072
 $74.37
Available to order.
Add to View Price
#44028A GUIDE-FORK SPRING
44028-1075
 $10.90
Available to order.
Add to View Price
#44029 SEAT-FORK SPRING
44029-1142
 $78.69
Available to order.
Add to View Price
#44037 HOLDER-FORK UNDER
44037-1282
 $608.93
Available to order.
Add to View Price
#44039 HOLDER-FORK UPPER
44039-1189
 $253.91
Available to order.
Add to View Price
#44070 DAMPER-ASSY,FORK,LH,B
44070-1230-KW
 $1,388.60
Available to order.
Add to View Price
#44070A DAMPER-ASSY,FORK,RH,B
44070-1231-KW
 $1,388.60
Available to order.
Add to View Price
#49116 VALVE-ASSY,FORK
49116-1111
 $172.54
Available to order.
Add to View Price
#55020 GUARD,FORK,LH,WHITE
55020-1363-RZ
Superseded by 55020-0132-RZ
 $42.33
Unavailable
#55020A GUARD,FORK,RH,WHITE
55020-1423-RZ
Superseded by 55020-0005-RZ
 $26.24
Available to order.
Add to View Price
#92009 SCREW
92009-1568
 $6.96
Available to order.
Add to View Price
#92015 NUT,STEERING STEM,22MM
92015-1653
Superseded by 92210-1521
 $16.09
Available to order.
Add to View Price
#92015A NUT
92015-1827
 $23.22
Available to order.
Add to View Price
#92022 WASHER,FORK OUTER TUBE
92022-1298
 $8.28
Available to order.
Add to View Price
#92022A WASHER,STEERING STEM
92022-1873
 $7.19
Available to order.
Add to View Price
#92028 BUSHING
92028-1566
 $29.29
Available to order.
Add to View Price
#92033 RING-SNAP
92033-1036
 $6.30
Available to order.
Add to View Price
#92049 SEAL-OIL,FORK OUTER TUBE
92049-1356
 $18.65
Available to order.
Add to View Price
#92055 RING-O,ROD
92055-1115
Superseded by 92055-1369
 $9.78
Available to order.
Add to View Price
#92055A O RING,18MM
92055-1156
Superseded by 670B2018
 $1.39
Available to order.
Add to View Price
#92055B RING-O,2.8X6.6X1.9
92055-1441
 $2.87
Unavailable
#92055C RING-O,FORK VALVE
92055-1502
 $7.19
Available to order.
Add to View Price
#92072 BAND
92072-1267
 $20.18
Available to order.
Add to View Price
#92072A BAND
92072-1268
 $22.62
Available to order.
Add to View Price
#92093 SEAL
92093-1305
 $32.59
Available to order.
Add to View Price
#92150 BOLT,6X14
92150-1340
 $4.91
Available to order.
Add to View Price
#92150A BOLT,5X40
92150-1434
 $4.45
Available to order.
Add to View Price
#92150B BOLT,FLANGED,8X40
92150-1446
 $12.23
Available to order.
Add to View Price
#92150C BOLT,FLANGED,8X40
92150-1516
 $13.65
Available to order.
Add to View Price
