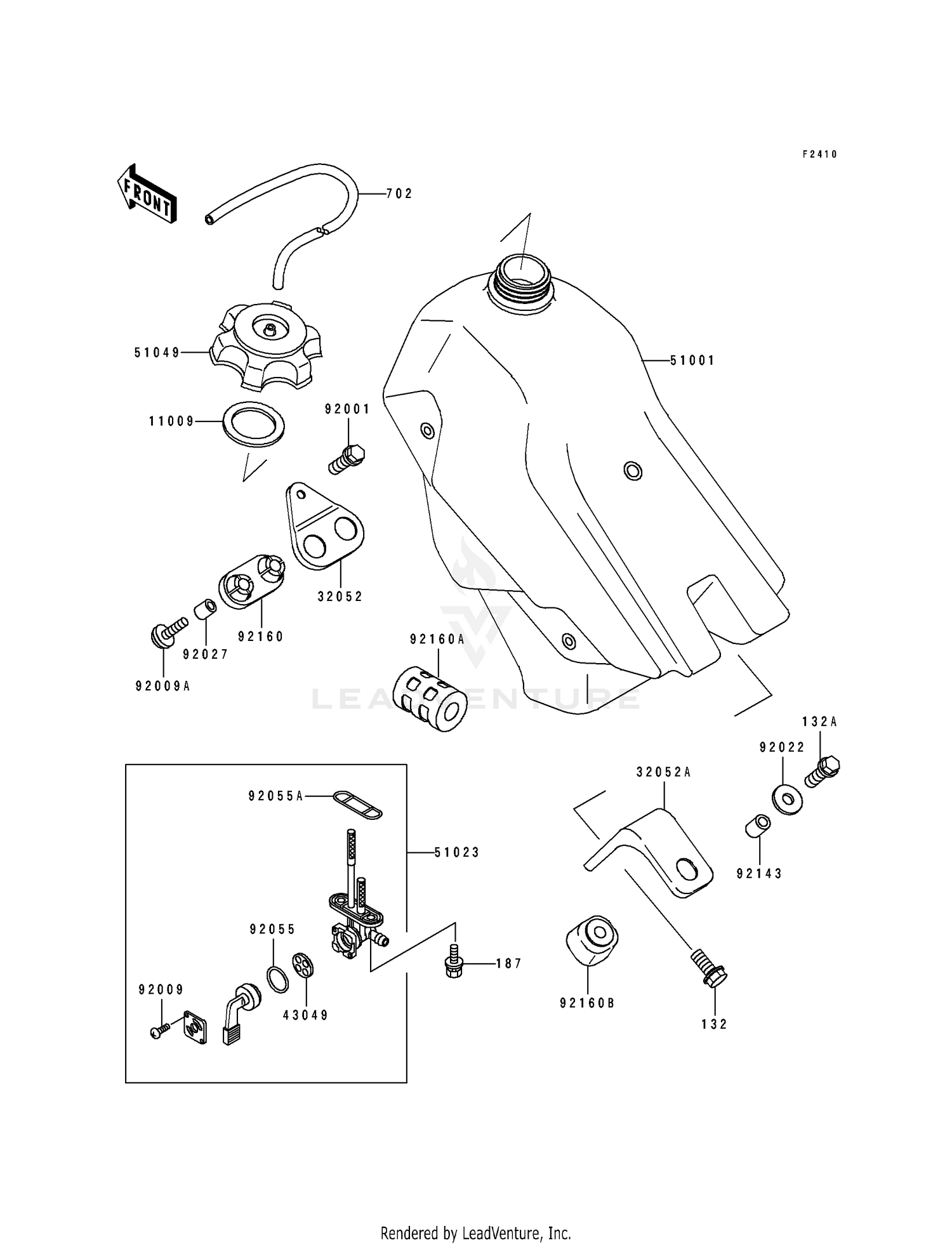

Fuel Tank Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#11009
GASKET,FUEL TANK CAP
11009-1622
Superseded by 11060-1340
|
$5.96 | ||
|
Available to order. Add to View Price |
|||
|
#32052
BRACKET-TANK,FR,L.GRE
32052-1317-CC
|
$8.10 | ||
|
Available to order. Add to View Price |
|||
|
#32052A
BRACKET-TANK,RR,L.GRE
32052-1318-CC
|
$8.87 | ||
|
Available to order. Add to View Price |
|||
|
#43049
PACKING,VALVE
43049-1017
Superseded by 43049-1102
|
$7.01 | ||
|
Available to order. Add to View Price |
|||
|
#51001
TANK-COMP-FUEL,L.GREE
51001-1344-6W
Superseded by 51001-1475-6W
|
$498.34 | ||
|
Unavailable |
|||
|
#51023
TAP-ASSY
51023-1178
Superseded by 51023-1353
|
$48.05 | ||
|
Available to order. Add to View Price |
|||
|
#51049
CAP-TANK,FUEL
51049-1089
Superseded by 51049-1108
|
$30.63 | ||
|
Available to order. Add to View Price |
|||
|
#92001
BOLT,8X16
92001-1897
|
$5.41 | ||
|
Available to order. Add to View Price |
|||
|
#92009
SCREW,3X5
92009-1123
|
$0.58 | ||
|
Available to order. Add to View Price |
|||
|
#92009A
SCREW,6X22
92009-1441
|
$4.17 | ||
|
Available to order. Add to View Price |
|||
|
#92022
WASHER,6.5X24X2
92022-1690
|
$3.80 | ||
|
Available to order. Add to View Price |
|||
|
#92027
COLLAR,6.8X10X11.5
92027-1210
|
$9.92 | ||
|
Available to order. Add to View Price |
|||
|
#92055
RING-O,FUEL TAP LEVER
92055-1111
Superseded by 92055-0960
|
$4.84 | ||
|
Available to order. Add to View Price |
|||
|
#92055A
RING-O,FUEL TAP PACKI
92055-1348
|
$7.09 | ||
|
Available to order. Add to View Price |
|||
|
#92143
COLLAR,6.8X10X24.5
92143-1459
|
$4.25 | ||
|
Available to order. Add to View Price |
|||
|
#92160
DAMPER,FUEL TANK,FR
92160-1252
|
$8.10 | ||
|
Available to order. Add to View Price |
|||
|
#92160A
DAMPER,FUEL TANK
92160-1253
|
$8.10 | ||
|
Available to order. Add to View Price |
|||
|
#92160B
DAMPER,FUEL TANK,RR
92160-1254
|
$10.28 | ||
|
Available to order. Add to View Price |
|||
|
#132
BOLT-FLANGED-SMALL,6X12
132G0612
Superseded by 132BA0612
|
$1.17 | ||
|
Available to order. Add to View Price |
|||
|
#132A
BOLT-FLANGED-SMALL,6X35
132G0635
Superseded by 132BA0635
|
$2.00 | ||
|
Available to order. Add to View Price |
|||
|
#187
BOLT-UPSET-WSP
187B0616
Superseded by 187AA0616
|
$1.22 | ||
|
Available to order. Add to View Price |
|||
|
#702
TUBE,5X1430
702A05350
Superseded by 702A051430
|
$28.01 | ||
|
Available to order. Add to View Price |
|||
