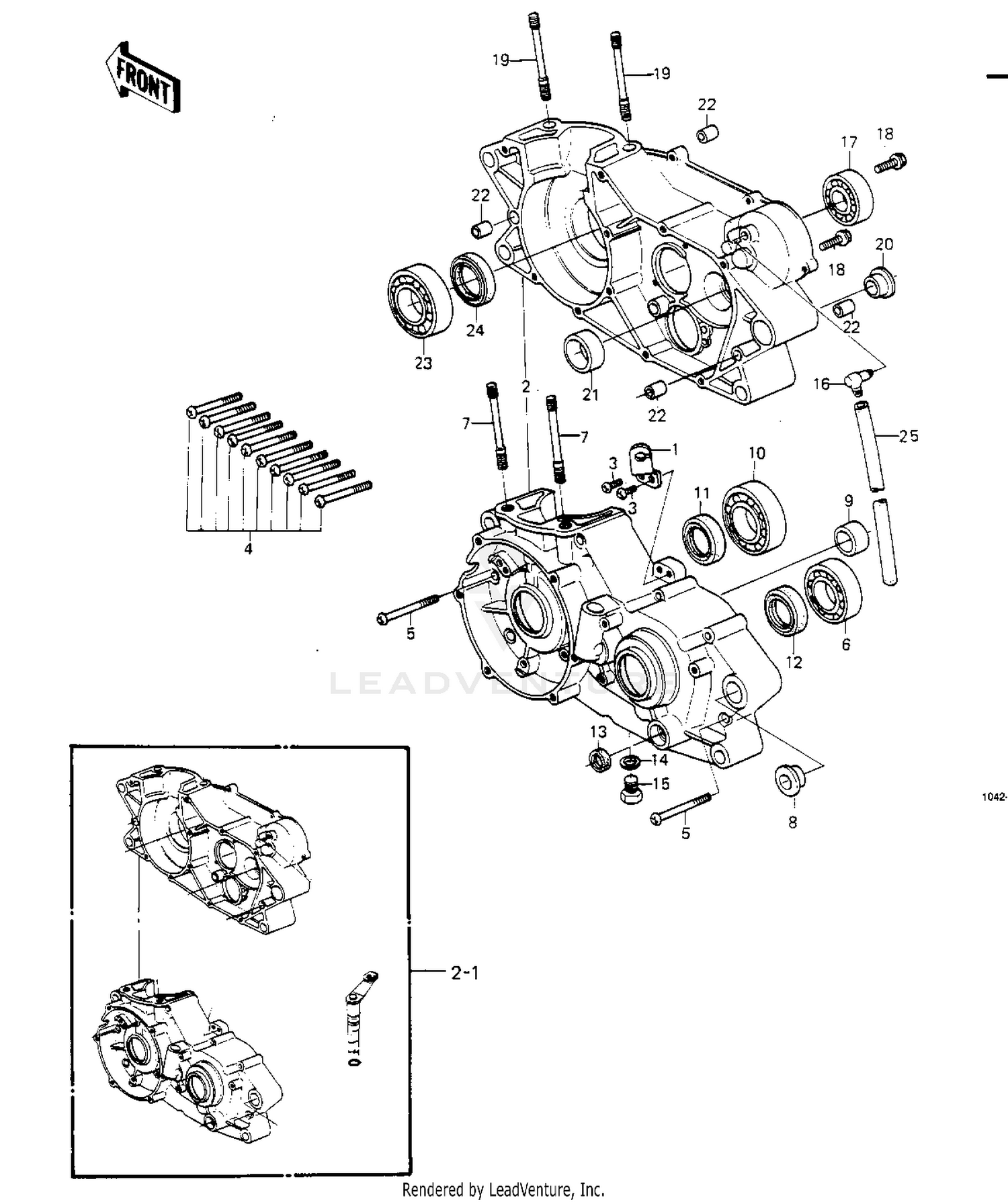

Crankcase Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
HOLDER,CLUTCH CABLE
13091-1068
|
$6.30 | ||
|
Available to order. Add to View Price |
|||
|
#2
SET-CRANKCASE
14001-5068
|
$434.11 | ||
|
Available to order. Add to View Price |
|||
|
#2-1
SET-CRANKCASE
14001-5068
|
$434.11 | ||
|
Unavailable |
|||
|
#3
SCREW-PAN-CROS,6X16
220B0616
Superseded by 220AA0616
|
$2.95 | ||
|
Available to order. Add to View Price |
|||
|
#4
SCREW-PAN-CROS,6X50
220B0650
|
$0.97 | ||
|
Available to order. Add to View Price |
|||
|
#5
SCREW-PAN HEAD,6X60
220B0660
Superseded by 220AA0660
|
$1.86 | ||
|
Available to order. Add to View Price |
|||
|
#6
BEARING BALL #6205
601B6205
|
$19.08 | ||
|
Available to order. Add to View Price |
|||
|
#7
STUD,10X65
92004-1032
|
$10.88 | ||
|
Available to order. Add to View Price |
|||
|
#8
BUSHING,PIVOT MOUNT
92028-1074
|
$16.91 | ||
|
Available to order. Add to View Price |
|||
|
#9
BUSHING,23X30X13
92028-132
|
$36.60 | ||
|
Available to order. Add to View Price |
|||
|
#10
BEARING,BALL,6206-C3
92045-1031
|
$17.26 | ||
|
Available to order. Add to View Price |
|||
|
#11
SEAL-OIL
92049-1047
|
$15.75 | ||
|
Available to order. Add to View Price |
|||
|
#12
OIL SEAL TB3040
92050-033
|
$20.97 | ||
|
Available to order. Add to View Price |
|||
|
#13
SEAL-OIL,TB13225.5
92051-005
|
$7.47 | ||
|
Available to order. Add to View Price |
|||
|
#14
GASKET,10.5X16X1
92065-058
|
$3.84 | ||
|
Available to order. Add to View Price |
|||
|
#15
PLUG,DRAIN,10X12
92067-001
|
$4.27 | ||
|
Available to order. Add to View Price |
|||
|
#16
BREATHER
14069-003
|
$9.93 | ||
|
Available to order. Add to View Price |
|||
|
#17
BEARING BALL #6204
601B6204
|
$13.27 | ||
|
Available to order. Add to View Price |
|||
|
#18
BOLT,FLANGED,6X18
92001-1066
|
$6.02 | ||
|
Available to order. Add to View Price |
|||
|
#19
STUD,10X65
92004-1032
|
$10.88 | ||
|
Unavailable |
|||
|
#20
BUSHING,PIVOT MOUNT
92028-1074
|
$16.91 | ||
|
Unavailable |
|||
|
#21
BUSHING,26X35X14
92028-131
|
$36.60 | ||
|
Available to order. Add to View Price |
|||
|
#22
PIN,DOWEL,10X14
92043-1037
|
$0.72 | ||
|
Available to order. Add to View Price |
|||
|
#23
BEARING,BALL,#6305SH2
92045-1024
|
$55.05 | ||
|
Available to order. Add to View Price |
|||
|
#24
OIL SEAL,TCJ25457
92049-1051
|
$35.38 | ||
|
Available to order. Add to View Price |
|||
|
#25
TUBE
92059-1125
Superseded by 92059-1939
|
$17.97 | ||
|
Available to order. Add to View Price |
|||
