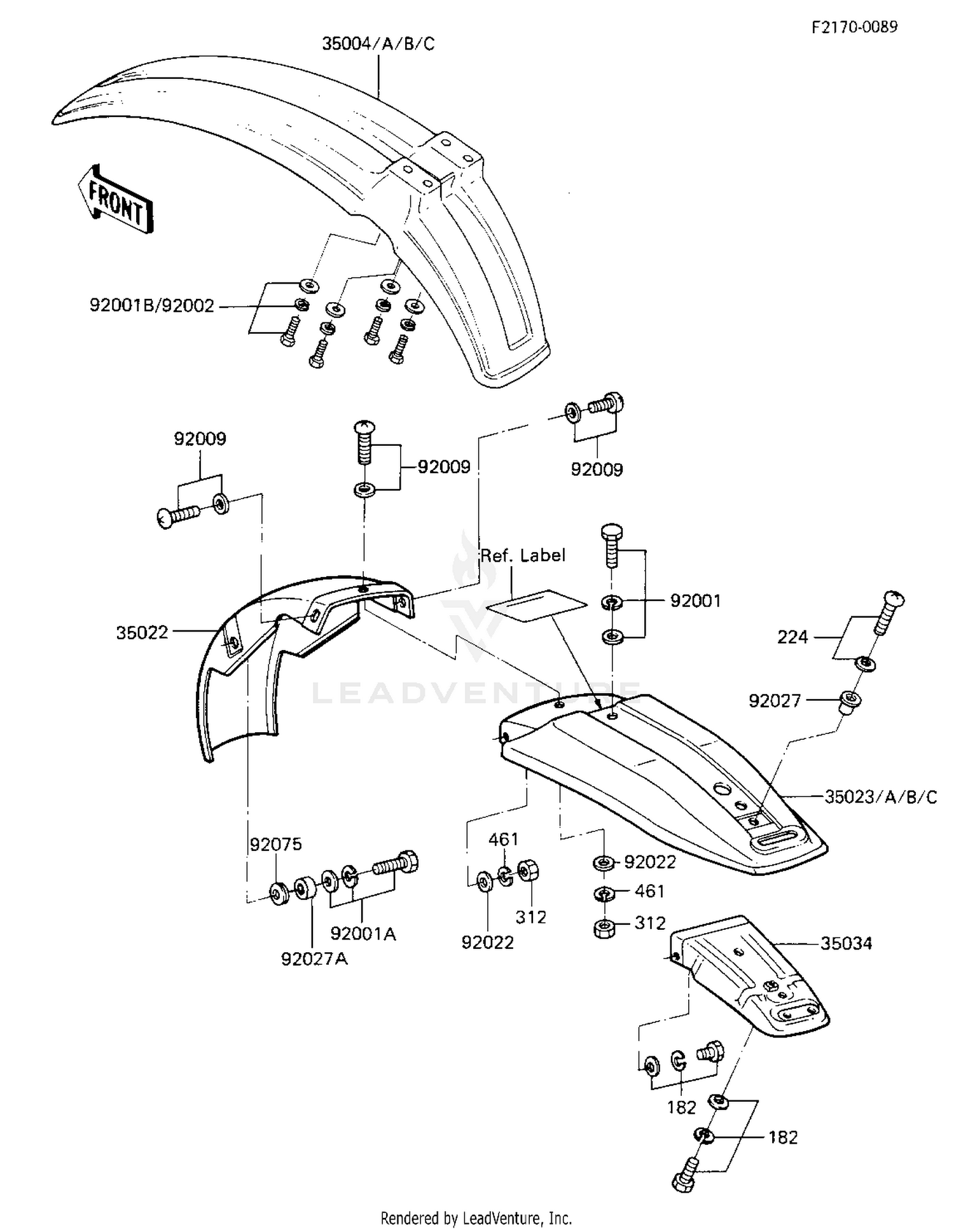

Fenders Diagram
| Item | MSRP | Qty | |
|---|---|---|---|
|
#35004
FENDER-FRONT,S.RED
35004-1072-6B
|
$111.57 | ||
|
Available to order. Add to View Price |
|||
|
#35004A
FENDER-FRONT,EBONY
35004-1072-6C
|
$91.12 | ||
|
Available to order. Add to View Price |
|||
|
#35004B
FENDER-FRONT,P.WHITE
35004-1072-6F
|
$116.20 | ||
|
Available to order. Add to View Price |
|||
|
#35004C
FENDER-FR,F.RED
35004-1072-6L
|
$95.83 | ||
|
Available to order. Add to View Price |
|||
|
#35022
FENDER-RR
35022-064
|
$41.33 | ||
|
Available to order. Add to View Price |
|||
|
#35023
FENDER-REAR,S.RED
35023-1039-6B
|
$71.16 | ||
|
Available to order. Add to View Price |
|||
|
#35023A
FENDER-REAR,EBONY
35023-1039-6C
|
$43.21 | ||
|
Available to order. Add to View Price |
|||
|
#35023B
FENDER-REAR,RR,P.WHIT
35023-1039-6F
|
$74.14 | ||
|
Available to order. Add to View Price |
|||
|
#35023C
FENDER-RR,F.RED
35023-1039-6L
|
$43.33 | ||
|
Available to order. Add to View Price |
|||
|
#35034
REINFORCE
35034-1075
|
$75.07 | ||
|
Available to order. Add to View Price |
|||
|
#92001
BOLT,6X12
92001-1761
|
$2.45 | ||
|
Available to order. Add to View Price |
|||
|
#92001A
BOLT,W/SP,6X16
92001-1763
|
$4.36 | ||
|
Available to order. Add to View Price |
|||
|
#92001B
BOLT,6X16
92001-1863
|
$3.26 | ||
|
Available to order. Add to View Price |
|||
|
#92002
BOLT,6X16
92002-1075
Superseded by 92001-1863
|
$3.26 | ||
|
Unavailable |
|||
|
#92009
SCREW,6X14
92009-1281
|
$3.56 | ||
|
Available to order. Add to View Price |
|||
|
#92022
WASHER,6.5X20X1.6
92022-125
Superseded by 92200-0283
|
$1.36 | ||
|
Available to order. Add to View Price |
|||
|
#92027
COLLAR,REAR FENDER
92027-1018
|
$5.07 | ||
|
Available to order. Add to View Price |
|||
|
#92027A
COLLAR
92027-103
|
$3.51 | ||
|
Available to order. Add to View Price |
|||
|
#92075
DAMPER RUBBER
92075-105
|
$4.24 | ||
|
Available to order. Add to View Price |
|||
|
#182
BOLT-UPSET-WSP
182B0612
|
$2.61 | ||
|
Available to order. Add to View Price |
|||
|
#224
SCREW-PAN-WP-CROS,6X14
92009-1333
Superseded by 224AA0614
|
$5.33 | ||
|
Available to order. Add to View Price |
|||
|
#312
NUT-HEX
312B0600
Superseded by 312AA0600
|
$0.72 | ||
|
Available to order. Add to View Price |
|||
|
#461
WASHER-SPRING,6MM
461F0600
Superseded by 461DA0600
|
$0.69 | ||
|
Available to order. Add to View Price |
|||
