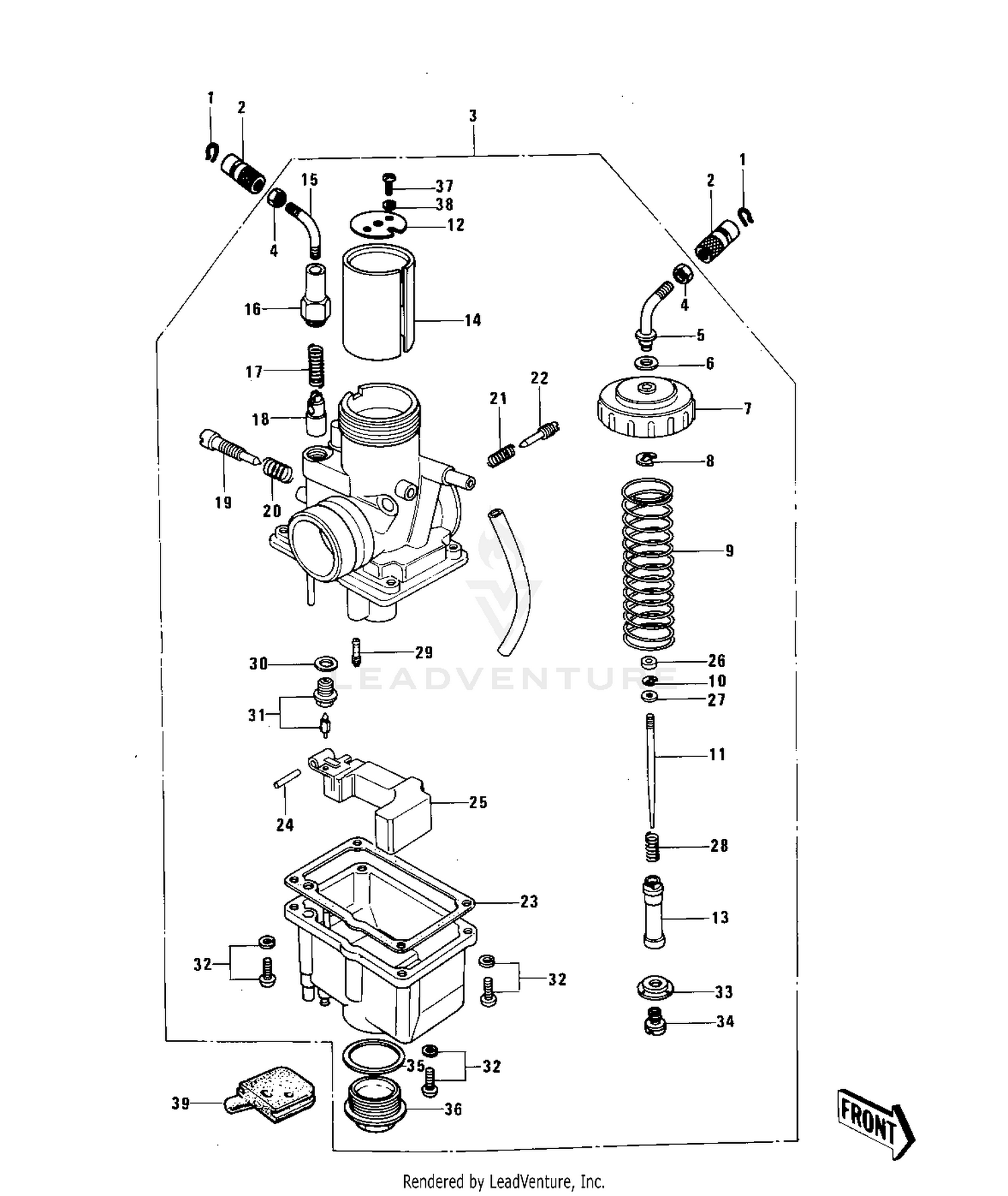

1979 Kawasaki KE125 CARBURETOR (KE125-A6) OEM Parts Diagram
Accessory
+
Air & Fuel
+
Body, Fairing & Fender
+
Dash & Gauges
+
Drive & Transmission
+
Electrical
+
Engine
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
RING-SNAP
92036-018
|
$3.57 | ||
|
Available to order. Add to View Price |
|||
|
#2
CABLE ADJUSTER
16002-007
|
$10.50 | ||
|
Available to order. Add to View Price |
|||
|
#3
CARBURETOR ASSY
16001-1038
|
$212.78 | ||
|
Available to order. Add to View Price |
|||
|
#4
NUT CABLE ADJUST LOCK
16003-004
|
$6.57 | ||
|
Available to order. Add to View Price |
|||
|
#5
GUIDE,CABLE
16077-011
|
$20.06 | ||
|
Available to order. Add to View Price |
|||
|
#6
GASKET,CABLE GUIDE
16029-007
|
$9.73 | ||
|
Available to order. Add to View Price |
|||
|
#7
CAP,MIXING CHAMBER
16004-024
|
$15.28 | ||
|
Available to order. Add to View Price |
|||
|
#8
CIRCLIP,CABLE GUIDE
16008-011
|
$6.38 | ||
|
Available to order. Add to View Price |
|||
|
#9
SPRING,THROTTLE VALV
16006-024
|
$10.80 | ||
|
Available to order. Add to View Price |
|||
|
#10
CIRCLIP
16008-010
|
$8.56 | ||
|
Available to order. Add to View Price |
|||
|
#11
JET NEEDLE,SEL17-3
16009-1019
|
$13.81 | ||
|
Available to order. Add to View Price |
|||
|
#12
PLATE,THROTTLE VALVE
13169-1123
|
$6.46 | ||
|
Available to order. Add to View Price |
|||
|
#13
NEEDLE JET,#A0-0
16017-1025
|
$21.59 | ||
|
Available to order. Add to View Price |
|||
|
#14
VALVE,THROTTLE,CA2.5
16025-1018
|
$61.70 | ||
|
Available to order. Add to View Price |
|||
|
#15
GUIDE,CABLE
16077-010
|
$20.20 | ||
|
Available to order. Add to View Price |
|||
|
#16
CAP,STARTER PLUNGER
16012-017
|
$21.59 | ||
|
Available to order. Add to View Price |
|||
|
#17
SPRING-PLUNGER
16013-003
|
$5.79 | ||
|
Available to order. Add to View Price |
|||
|
#18
PLUNGER-ENRICHNER
16016-002
|
$28.80 | ||
|
Available to order. Add to View Price |
|||
|
#19
SCREW,THROTTLE STOP
16021-023
|
$21.93 | ||
|
Available to order. Add to View Price |
|||
|
#20
SPRING THR STOP SCREW
16022-005
|
$8.15 | ||
|
Available to order. Add to View Price |
|||
|
#21
SPRING,PILOT AIR SCREW
16022-007
|
$7.63 | ||
|
Available to order. Add to View Price |
|||
|
#22
SCREW PILOT AIR ADJST
16014-002
|
$17.07 | ||
|
Available to order. Add to View Price |
|||
|
#23
GASKET,FLOAT CHAMBER
16019-023
|
$18.26 | ||
|
Available to order. Add to View Price |
|||
|
#24
FLOAT PIN
16032-006
|
$6.52 | ||
|
Available to order. Add to View Price |
|||
|
#25
FLOAT
16031-026
|
$62.93 | ||
|
Available to order. Add to View Price |
|||
|
#26
RING,JET NEEDLE
92027-1103
|
$6.57 | ||
|
Available to order. Add to View Price |
|||
|
#27
WASHER,THROTTLE VALVE
92022-1024
|
$6.16 | ||
|
Available to order. Add to View Price |
|||
|
#28
SPRING,JET NEEDLE
92081-1072
|
$5.21 | ||
|
Available to order. Add to View Price |
|||
|
#29
PILOT JET,#A25
92064-1020
|
$18.12 | ||
|
Available to order. Add to View Price |
|||
|
#30
GASKET,FLOAT VALVE SEAT
16029-004
|
$3.66 | ||
|
Available to order. Add to View Price |
|||
|
#31
FLOAT VALVE ASSY
16030-024
|
$49.57 | ||
|
Unavailable |
|||
|
#32
SCREW-PAN-WS-CROS,4X14
223B0414
Superseded by 223AA0414
|
$1.42 | ||
|
Available to order. Add to View Price |
|||
|
#33
RING,MAIN JET
16008-012
|
$22.31 | ||
|
Available to order. Add to View Price |
|||
|
#34
JET-MAIN,#A95R
92063-1031
|
$13.44 | ||
|
Available to order. Add to View Price |
|||
|
#35
GASKET,MAIN JET COVER
16034-008
|
$6.15 | ||
|
Available to order. Add to View Price |
|||
|
#36
BOLT,BANJO
92001-146
|
$16.86 | ||
|
Available to order. Add to View Price |
|||
|
#37
SCREW-PAN-CROS,3X8
220B0308
Superseded by 220AA0308
|
$0.58 | ||
|
Available to order. Add to View Price |
|||
|
#38
WASHER-SPRING
461F0300
Superseded by 461DA0300
|
$0.46 | ||
|
Available to order. Add to View Price |
|||
|
#39
GROMMET,OVERFLOW
16136-009
|
$10.57 | ||
|
Available to order. Add to View Price |
|||
