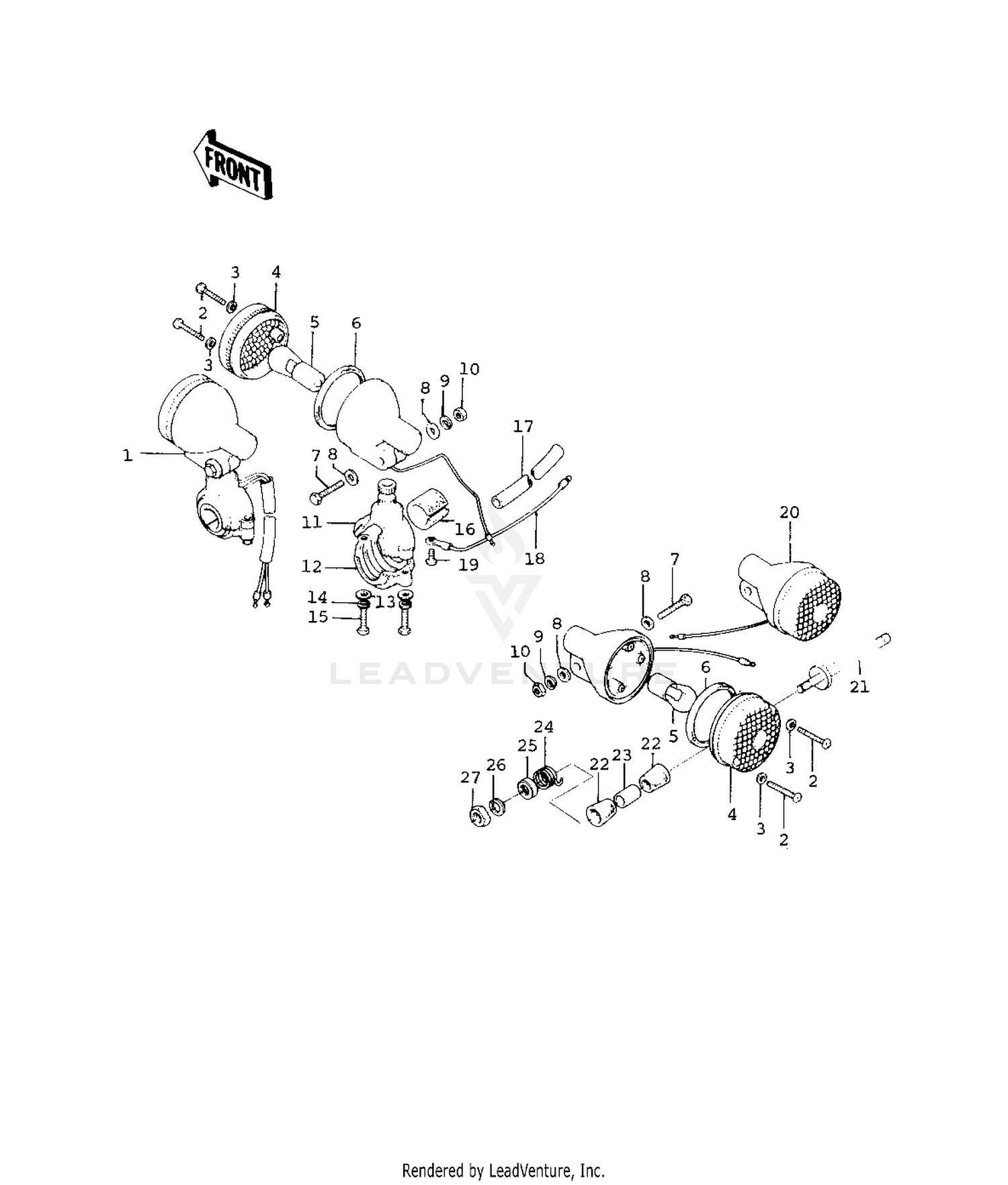

1976 Kawasaki KE125 TURN SIGNALS ('76-'79) OEM Parts Diagram
Accessory
+
Air & Fuel
+
Body, Fairing & Fender
+
Dash & Gauges
+
Drive & Transmission
+
Electrical
+
Engine
+
Foot Control
+
Frame
+
Handlebars & Controls
+
Seat
+
Suspension
+
| Item | MSRP | Qty | |
|---|---|---|---|
|
#1
LAMP ASY-FR TURN SIG
23037-005
|
$96.42 | ||
|
Available to order. Add to View Price |
|||
|
#2
SCREW-PAN HEAD,4X20
220E0420A
|
$2.58 | ||
|
Available to order. Add to View Price |
|||
|
#3
WASHER,PLAIN,4MM
23058-002
|
$2.33 | ||
|
Available to order. Add to View Price |
|||
|
#4
LENS,TURN SIGNAL LAMP
23048-1001
|
$9.82 | ||
|
Available to order. Add to View Price |
|||
|
#5
BULB,6V 21CP
92069-056
|
$5.97 | ||
|
Available to order. Add to View Price |
|||
|
#6
GASKET-SIG LAMP LENS
23050-003
|
$5.46 | ||
|
Available to order. Add to View Price |
|||
|
#7
BOLT-UPSET
112G0630
Superseded by 112BA0630
|
$1.36 | ||
|
Available to order. Add to View Price |
|||
|
#8
WASHER-PLAIN,6MM
411D0600
Superseded by 411S0600
|
$1.92 | ||
|
Available to order. Add to View Price |
|||
|
#9
WASHER-SPRING,6MM
461F0600
Superseded by 461DA0600
|
$0.69 | ||
|
Available to order. Add to View Price |
|||
|
#10
NUT-HEX,6MM
311B0600
Superseded by 311AA0600
|
$0.93 | ||
|
Available to order. Add to View Price |
|||
|
#11
BRACKET,FRNT TURN SIG
23051-1004
|
$35.27 | ||
|
Available to order. Add to View Price |
|||
|
#12
BRACKET,SIGNAL LAMP
23051-042
Superseded by 23051-1013
|
$20.71 | ||
|
Available to order. Add to View Price |
|||
|
#13
W-PLAIN-S,5MM
410D0500
Superseded by 410S0500
|
$1.49 | ||
|
Available to order. Add to View Price |
|||
|
#14
WASHER-SPRING,5MM
461F0500
Superseded by 461DA0500
|
$0.69 | ||
|
Available to order. Add to View Price |
|||
|
#15
BOLT,5X16
110N0516A
Superseded by 110R0516
|
$3.49 | ||
|
Available to order. Add to View Price |
|||
|
#16
DAMPER RUBBER
23066-003
|
$6.91 | ||
|
Available to order. Add to View Price |
|||
|
#17
COVER-WIRING HARNESS
26009-004
|
$1.93 | ||
|
Available to order. Add to View Price |
|||
|
#18
WIRE-TURN SIGNAL LEAD
26011-061
|
$5.07 | ||
|
Available to order. Add to View Price |
|||
|
#19
SCREW,3X5
220B0305A
Superseded by 92009-1123
|
$0.58 | ||
|
Available to order. Add to View Price |
|||
|
#20
LAMP-REAR TURN SIGNAL
23040-033
|
$135.98 | ||
|
Available to order. Add to View Price |
|||
|
#21
BKT,RR SIGNAL LAMP
23051-048
|
$45.51 | ||
|
Available to order. Add to View Price |
|||
|
#22
DAMPER RUBBER
92075-148
|
$3.94 | ||
|
Available to order. Add to View Price |
|||
|
#23
COLLAR 12.7X17.3X30
92027-168
|
$4.45 | ||
|
Available to order. Add to View Price |
|||
|
#24
SPRING
92081-111
|
$3.39 | ||
|
Available to order. Add to View Price |
|||
|
#25
WASHER CUP 12.5X35X4T
92022-235
|
$5.37 | ||
|
Available to order. Add to View Price |
|||
|
#26
WASHER-SPRING,12MM
461F1200
Superseded by 461DA1200
|
$0.96 | ||
|
Available to order. Add to View Price |
|||
